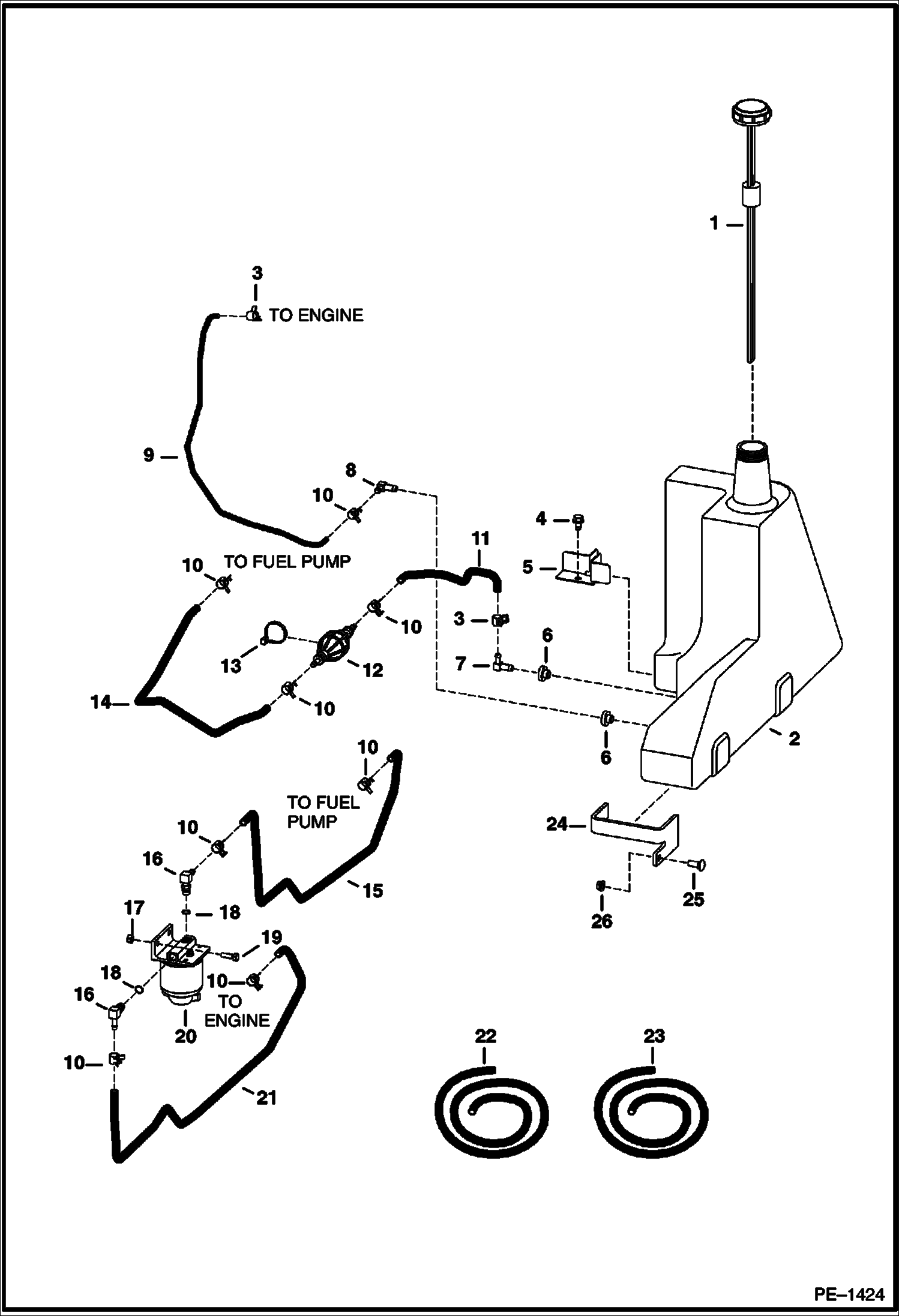

Запчасти Bobcat Mini Tracks Loaders FUEL SYSTEM MAIN FRAME

1

6678941

FUEL GAUGE

2

6730685

TANK fuel

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

84G3710

SCREW

5

6731316

BRACKET tank

6

6553411

BUSHING 0.38'' ID

7

6553412

ELBOW

8

6630041

ELBOW

9

HOSE NLA - 34'' (864mm) - Order Ref. 22

10

5HM14

CLAMP

11

HOSE NLA - 12'' (305mm) - Order Ref. 23

12

6667170

PUMP 193 mm (7.6'') long

13

6624289

STRAP, TIE

14

HOSE NLA - 22'' (559mm) - Order Ref. 23

15

HOSE NLA - 32'' (813mm) - Order Ref. 23

16

6715183

ELBOW W/Ref. 18 - Check Boss Face to Determine Correct Replacement O-ring

17

61D5

NUT

18

99K5

O-RING Tapered Boss Face

18

79K5

O RING 10 Flat Boss Face

19

17C516

BOLT

20

6667353

FILTER ASSY

20

6667352

FILTER, FUEL W/SEPARATOR 12

20

72F1

FITTING

20

6658180

PLUG, BLEED

21

HOSE NLA - 34'' (864mm) - Order Ref. 23

22

6578169

HOSE bulk - sold per foot - 0.19'' ID

23

6577822

HOSE bulk - sold per foot

24

6732447

BRACKET fuel

25

37C616

BOLT

26

55D6

NUT
