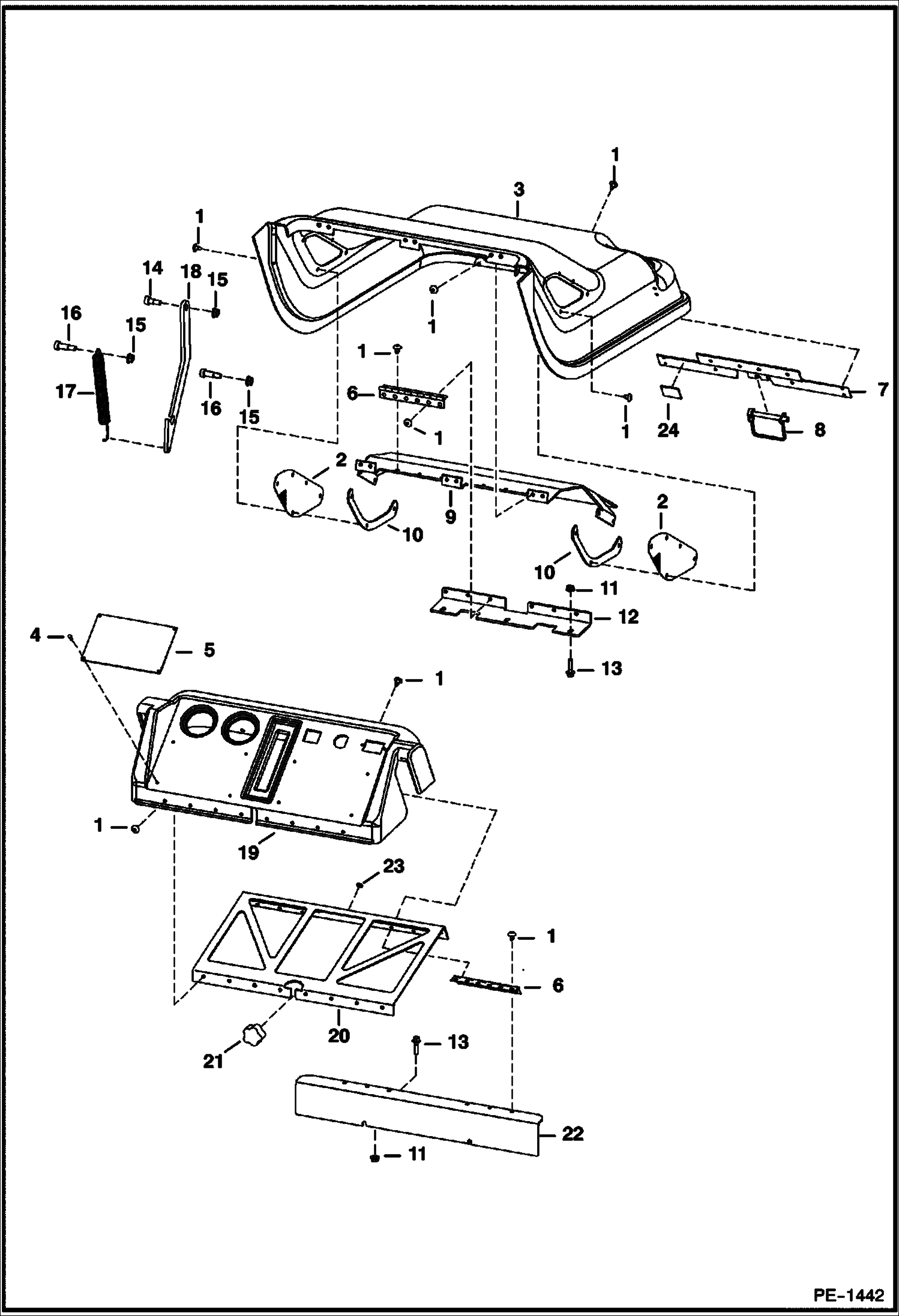

Запчасти Bobcat Mini Tracks Loaders MAIN FRAME MAIN FRAME

1

6589675

SCREW

2

6732063

SCREEN side

3

6730686

HOOD cover

4

6732671

RIVET

5

6732668

PLATE decal

6

6679172

HINGE

7

6732039

PLATE hood latch

8

6510020

LOCK PIN

9

6731991

FRAME hood

10

6732064

PLATE backing

11

97D4

NUT

12

6731992

BRACKET hood hinge

13

35C416

BOLT

14

38C606

BOLT

15

97D5

NUT

16

38C610

BOLT Was 38C000612B - B

17

6700743

SPRING

18

6731990

SUPPORT hood

19

6731304

PANEL instrument

20

6732008

FRAME cover

21

6674741

KNOB

22

6731993

BRACKET cover

23

25E13

WASHER 5

24

6732839

FOAM PAD
