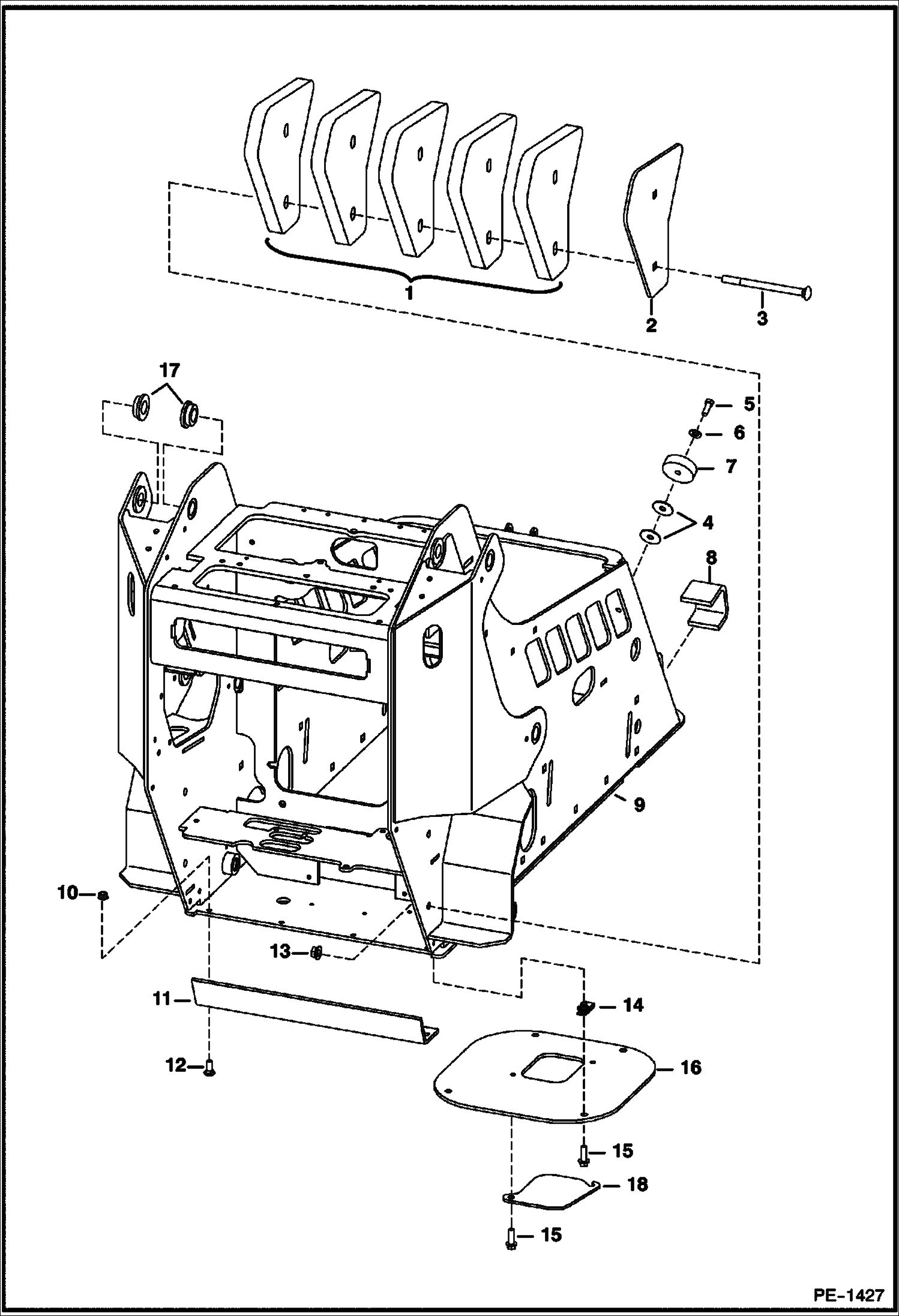

Запчасти Bobcat Mini Tracks Loaders MAIN FRAME MAIN FRAME

1

6731319

COUNTERWEIGHT

2

6731929

PLATE counterweight

3

37C8112

BOLT

4

616789

WASHER

5

17C620

BOLT

6

25E16

WSHR

7

6584652

BUMPER

8

6706485

HOOK tie down - weld-on

9

6731302

MAIN FRAME

10

55D6

NUT

10

55D6

NUT

11

6731930

SHIELD

12

37C616

BOLT

13

55D8

NUT

14

6675722

NUT

15

29CM1030

BOLT

15

84G3712

BOLT 5

16

6730674

COVER

17

6563829

BUSHING weld on

18

6737088

COVER, ACCESS Swing
