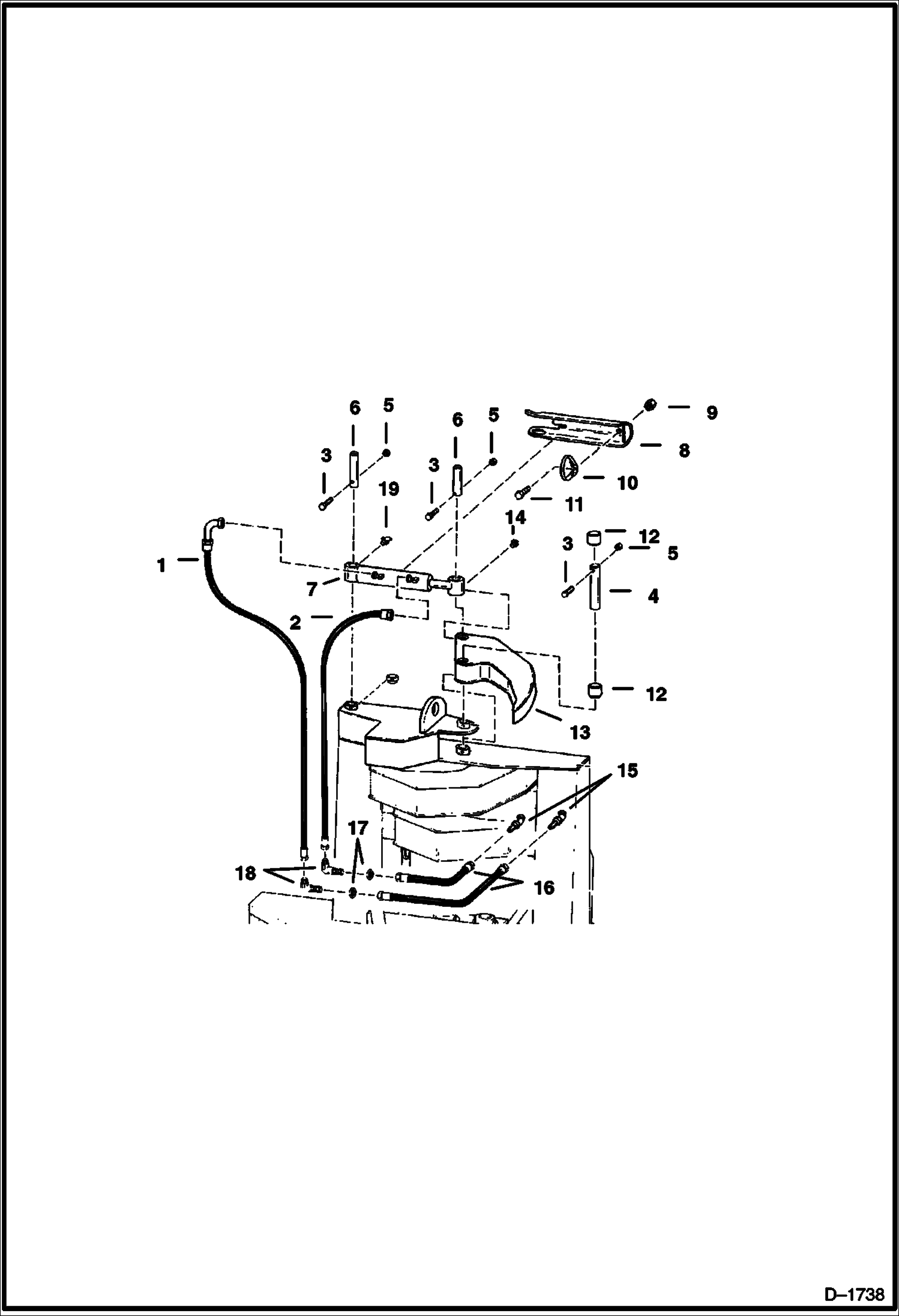

Запчасти Bobcat Feller Buncher ACCUMULATOR ACCESSORIES & OPTIONS

1

6569369

HOSE

2

6569368

HOSE

3

17C640

BOLT 5

4

6559002

PIN

5

85D6

NUT, 5

6

6547593

PIN, PIVOT

7

6593084

CYLINDER See Illustration GRAB ARM & ACCUMULATOR CYLINDER/ B8991

8

6568998

SHIELD

9

57D6

NUT 5

10

6569000

BAND

11

7C632

BOLT

12

6630591

BUSHING

13

ARM NLA - Was 6568061 - A

14

10H25

FITTING, GREASE 5

15

12K7

UNION

16

6569673

HOSE

17

86F7

LOCK NUT

18

88F7

ELBOW

19

11H15

GREASE FITTING
