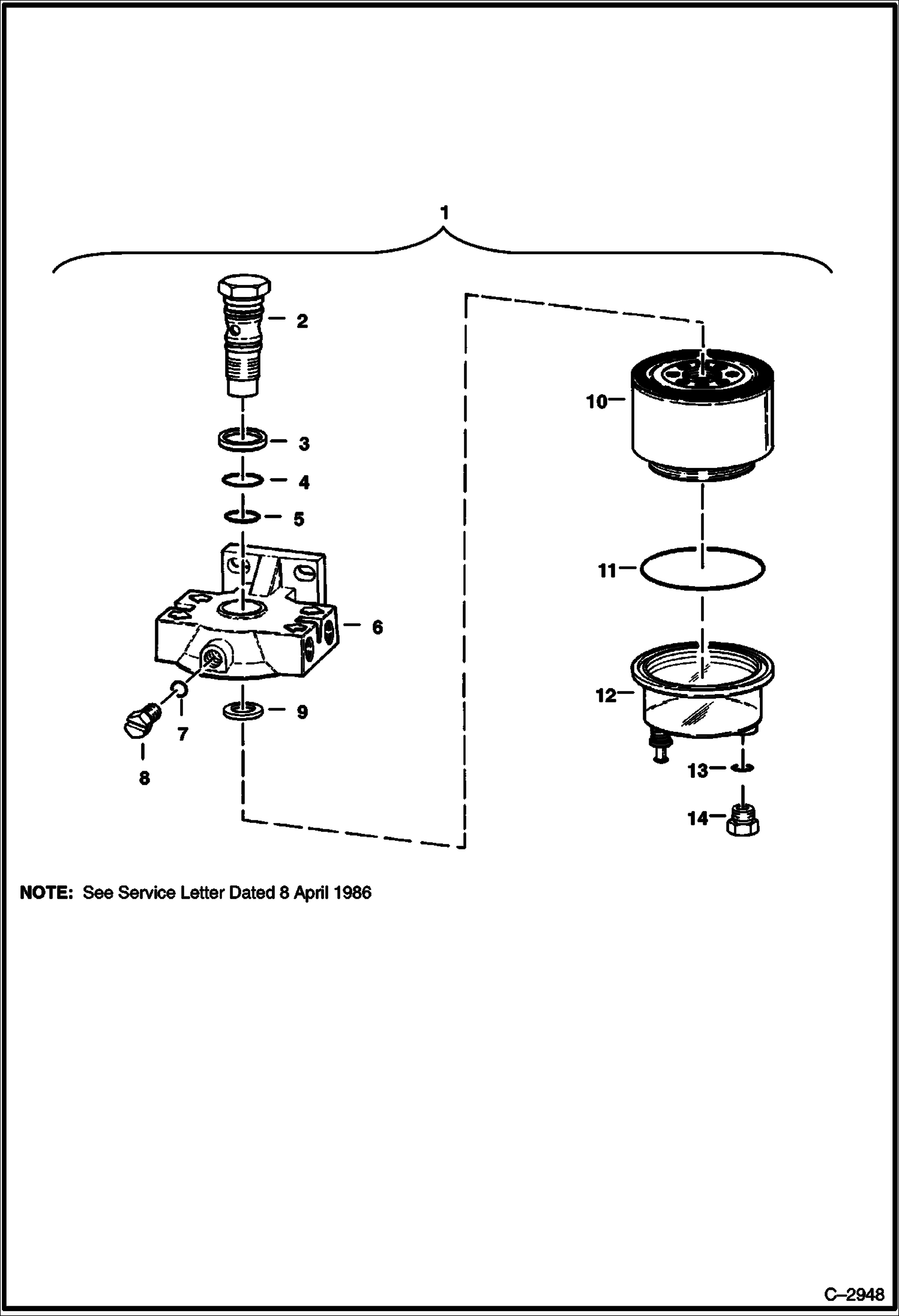

Запчасти Bobcat Feller Buncher FUEL FILTER (S/N 11058 & Below) POWER UNIT

1

FILTER ASSY. NLA - W/Ref. 2 - 14 - See Note - Was 6631639 - A

2

KIT NLA - bolt - Ref. 2, 3 & 9 - Was 6632459 - A

3

WASHER NSS - Order Ref. 2

4

25K20022

O RING 10

5

25K20020

O RING 10

6

HEAD NLA - Ref. 2, 4 & 9 - Was 6632098 - A

7

25K20010

O RING 10

8

PLUG NLA - Was 6632103 - A

9

WASHER NSS - Order Ref. 2

10

ELEMENT NLA - Was 6631919 - A

11

25K30218

O RING 10

12

BOWL NLA - W/Ref. 11 - Was 6632102 - A

13

25K20014

O RING 10

14

PLUG NLA - Was 6632104 - A
