Запчасти Bobcat Feller Buncher OIL PUMP (For Engine Spec. #4JBIPK01) POWER UNIT

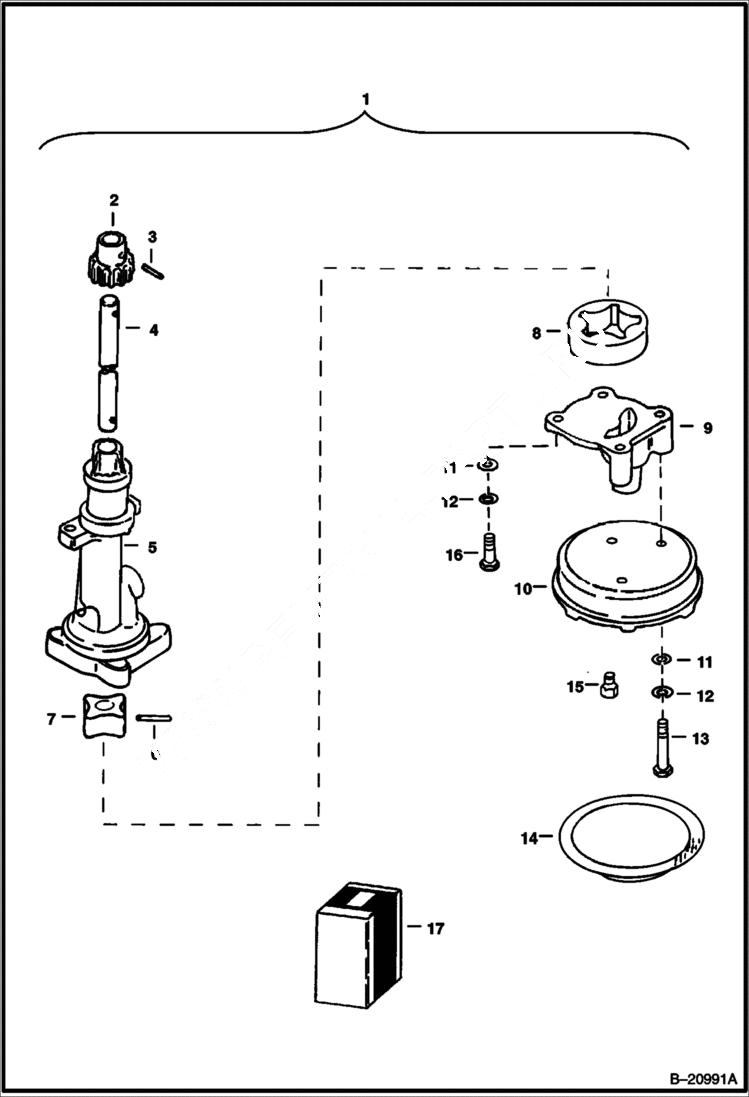

Схема запчастей Bobcat Feller Buncher - OIL PUMP (For Engine Spec. #4JBIPK01) POWER UNIT

Артикул

Название

Примечание

Количество

1

6660007

OIL PUMP Ref. 2 - 16 - Was 6632963 - A

2

6631750

GEAR

3

6513067

PIN

4

SHAFT NSS - Order Ref. 17

5

HOUSING NSS - Order Ref. 1

6

6631901

PIN

7

ROTOR NSS - Order Ref. 17

8

VANE NSS - Order Ref. 17

9

6631899

COVER

10

6631779

CASE strainer

11

6513036

WASHER

12

6512736

WASHER

13

1CM850

BOLT

14

6631902

GAUZE strainer

15

909496

BOLT

16

1CM825

BOLT

17

6631900

ROTOR KIT Ref. 4 & 6 - 8

Выбрано товаров: 17
