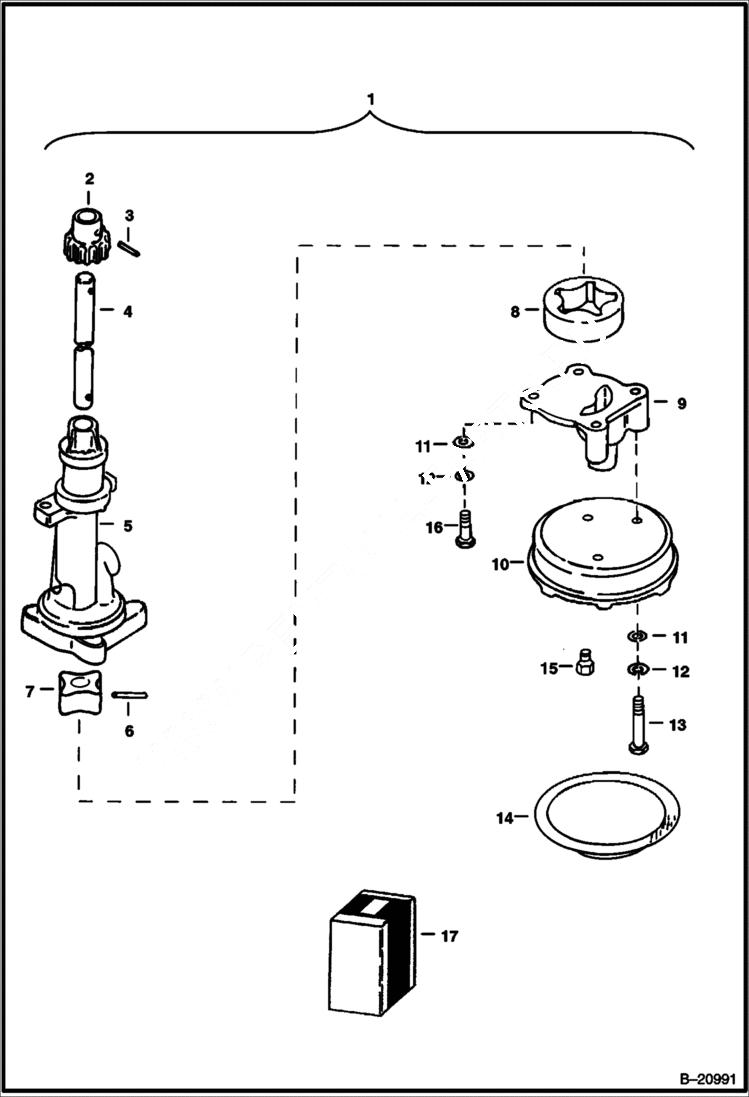

Запчасти Bobcat Feller Buncher OIL PUMP (For Engine Spec. #4JBIPK) POWER UNIT

1

6631772

OIL PUMP Ref. 2 - 16

2

6631750

GEAR

3

6513067

PIN

4

SHAFT NSS - Order Ref. 17

5

HOUSING NSS - Order Ref. 1

6

6631901

PIN

7

ROTOR NSS - Order Ref. 17

8

VANE NSS - Order Ref. 17

9

6631899

COVER

10

6631779

CASE strainer

11

6513036

WASHER

12

6512736

WASHER

13

1CM850

BOLT

14

6631902

GAUZE strainer

15

909496

BOLT

16

1CM825

BOLT

17

6631900

ROTOR KIT Ref. 4, 6, 7 & 8
