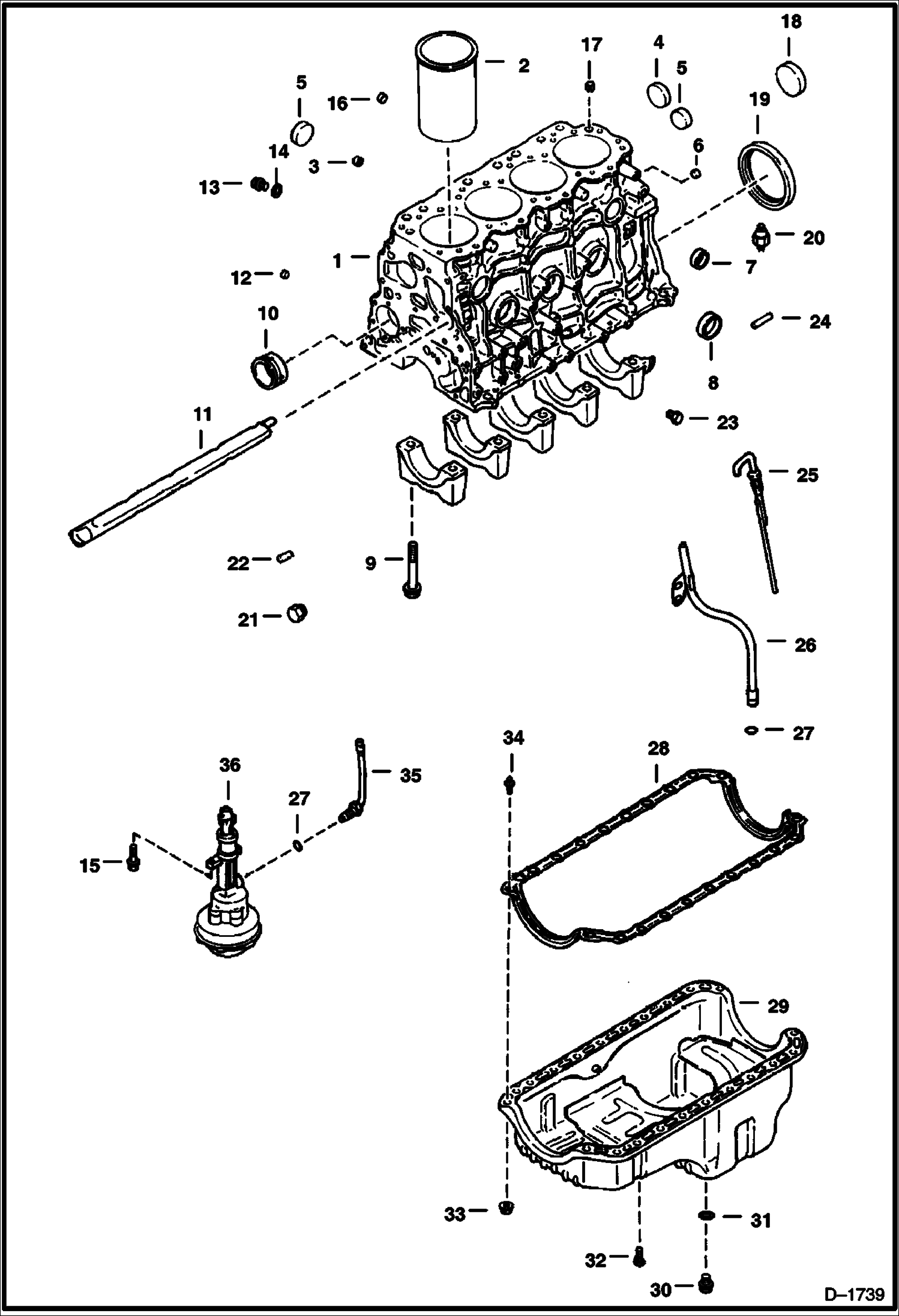

Запчасти Bobcat Feller Buncher CYLINDER BLOCK & OIL PAN (For Engine Spec. #4JBIPK) POWER UNIT

1

6631768

BLOCK W/Ref. 2 - 10

2

6631853

LINER, CYL CRANKCASE

3

6631743

PLUG sealing - 18mm

4

6631745

CUP sealing - 38.42mm

5

6631746

PLUG sealing - 36mm

6

6631738

CUP sealing - Size Not Available

7

6669706

CUP sealing - 31.75mm - Was 6667158 - A

8

6631730

CUP sealing - 44.6mm

9

6631893

BOLT

10

6636008

BEARING SET camshaft - Std. - Was 6631842

10

BEARING SET NLA - camshaft - 0.25 mm - Was 6640808 - A

10

BEARING SET NLA - camshaft - 0.50mm - Was 6630639 - A

10

6640810

BEARING SET camshaft - 0.75 mm

10

6640811

BEARING SET camshaft - 1.00 mm

11

6658192

DUCT water - Was 6631792 - A

12

6631739

PLUG taper oil gallery

13

6631824

PLUG oil gallery

14

3674009

GASKET

15

6658214

BOLT Was 3676977 - A

16

6512964

PLUG sealing - 16mm

17

6631895

DOWEL

18

6631922

CUP sealing - 56mm

19

6656476

SEAL Was 6631847 - A

20

SWITCH See Illustration ENGINE ELECTRICAL/ E1684 OIL PRESSURE

21

6513010

PLUG oil jet

22

6631886

PIN

23

6631891

PLUG water drain

24

6631887

PIN rear plate

25

6659342

DIPSTICK Was 6631867 - A

26

6631875

TUBE dipstick - W/Ref. 27

27

6631740

O-RING

28

6631823

GASKET

29

6631874

PAN W/Ref. 30 & 31

30

6631907

OIL PLUG

31

6667583

GASKET Was 6631890 - A

32

6631795

BOLT

33

6631729

NUT Was 6631737 - A

34

6631796

STUD

35

6658199

PIPE Was 6631773 - A

36

6631772

OIL PUMP See Illustration OIL PUMP/ B20991A See Illustration OIL PUMP/ B20991
