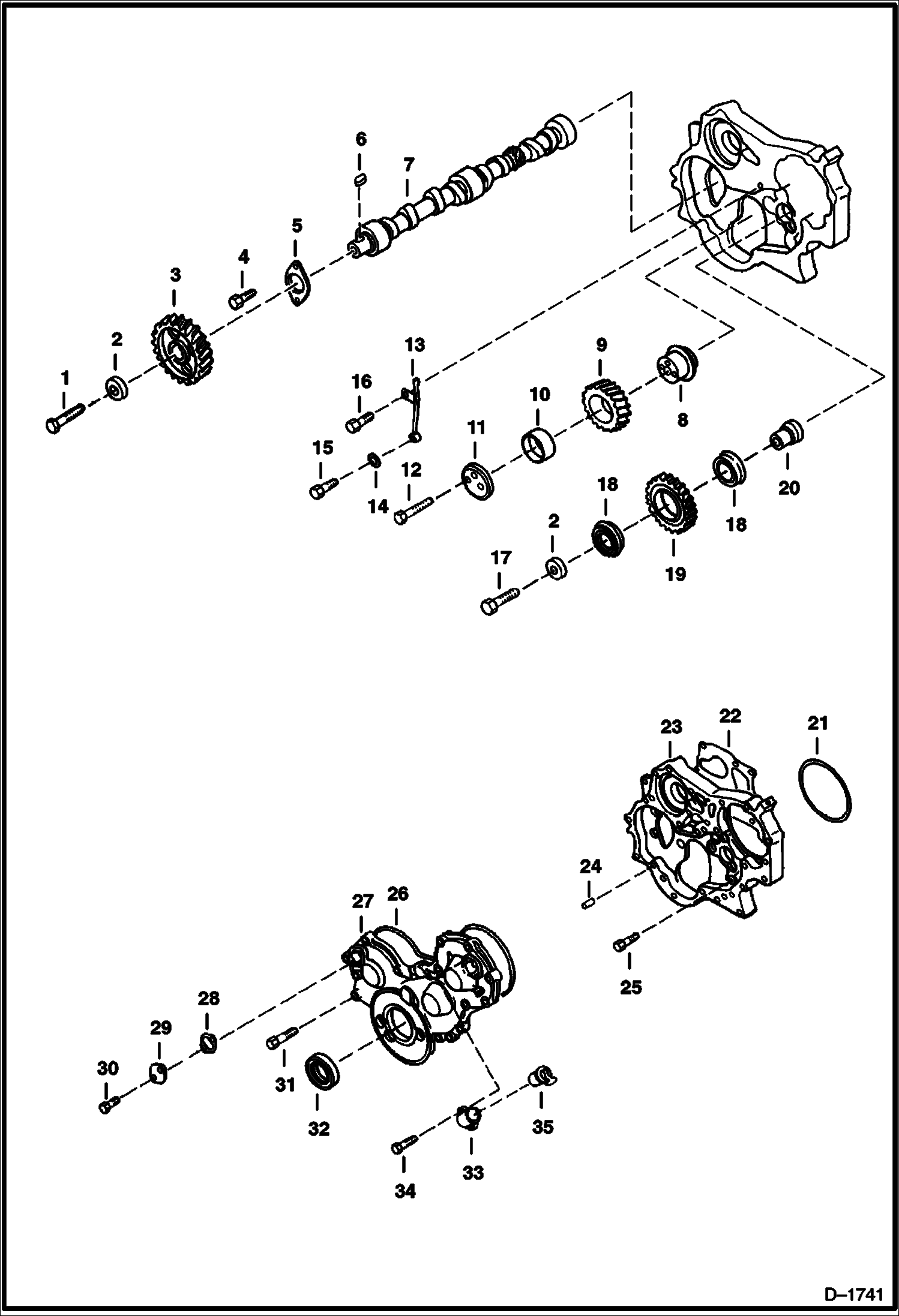

Запчасти Bobcat Feller Buncher CAMSHAFT & TIMING GEAR POWER UNIT

1

6512742

BOLT Was 6512765 - A

2

6512741

WASHER

3

6655315

GEAR Was 6631762 - A

4

6512738

BOLT

5

6631763

PLATE

6

6512740

KEY

7

6631776

CAMSHAFT

8

6631805

SHAFT

9

6631806

GEAR W/Ref. 10

10

BUSHING NSS - Order Ref. 9

11

6631811

THRUST COLLAR

12

6512735

BOLT

13

6631803

OIL PIPE

14

3674007

GASKET

15

6631815

BOLT hollow

16

6513004

BOLT

17

6631757

BOLT

18

6631761

BEARING

19

6631807

IDLER GEAR WBearing

20

6631760

SHAFT

21

6631758

O-RING

22

6661352

GASKET Was 6631764 - A

23

6659924

CASE timing gear - Was 6631829 - A

24

6631886

PIN

25

6512989

BOLT

25

6513050

BOLT

26

6631809

O-RING

27

6659925

COVER Was 6631828 - A

28

6631896

GASKET

29

3676441

COVER timing check

30

6667579

BOLT Was 3676964B - A

31

6513047

BOLT

31

6631733

BOLT

31

6631906

BOLT

32

6631741

SEAL

33

6568956

OIL FILL TUBE

34

1CM650

SCREW

35

6649962

OIL FILL CAP Was 6631051 - A
