Запчасти Bobcat Feller Buncher STARTER (Delco 1998379) ELECTRICAL SYSTEM

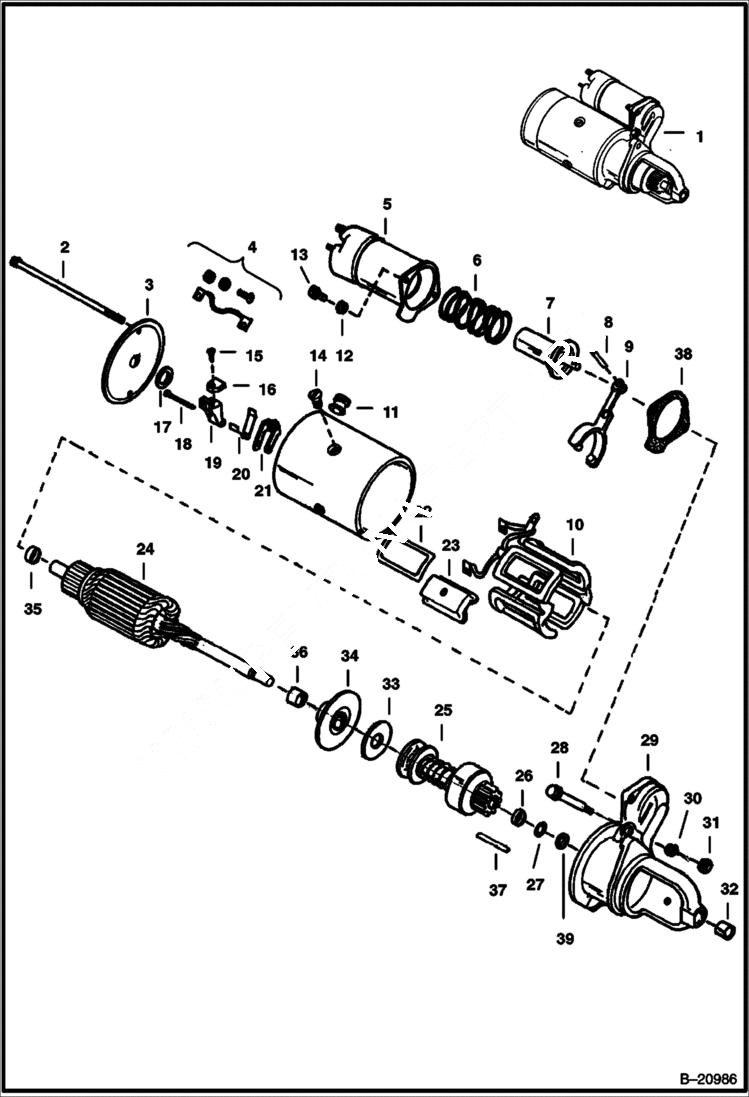

Схема запчастей Bobcat Feller Buncher - STARTER (Delco 1998379) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER NLA - New - Order 6651664 - Was 6630181 - A

1

6630181REM

STARTER remanufactured

2

6630404

BOLT

3

6630408

FRAME

4

6511627

HOLDER brush support

5

6599449

SOLENOID

6

888968

SPRING Was 906910B - B

7

6658903

PLUNGER Was 6630417 - A

8

PIN NLA - Was 999472B - A

9

896126

LEVER

10

6630407

COIL 4 Coils

11

GROMMET NLA - Was 898131B - A

12

23E4

WASHER

13

SCREW NLA - Was 43G000408B - A

14

859377

SCREW

15

SCREW NSS

16

6630403

BRUSH

17

WASHER NLA - Was 863995B - A

18

PIN NSS

19

6630402

HOLDER

20

6630406

SPRING

21

880603

HOLDER Was 6511626 - A

22

INSULATOR NSS

23

SHOE POLE NLA - Was 887834B - A

24

6511629

ARMATURE

25

6512872

DRIVE

26

STOP NLA - Was 878608B - A

27

942142

SNAP RING

28

884576

BOLT.

29

6630418

HOUSING drive - W/Ref. 32

30

WASHER NLA - Was 991218B - A

31

NUT NLA - Was 991219B - A

32

860669

BUSHING

33

WASHER NLA - Was 878103B - A

34

PLATE NLA - center - Was 891602B - A

35

874935

BUSHING

36

6598742

BUSHING

37

6630405

DOWEL PIN

38

BOOT NLA - Was 896128B - A

39

COLLAR NLA - Was 898127B - A

Выбрано товаров: 40
