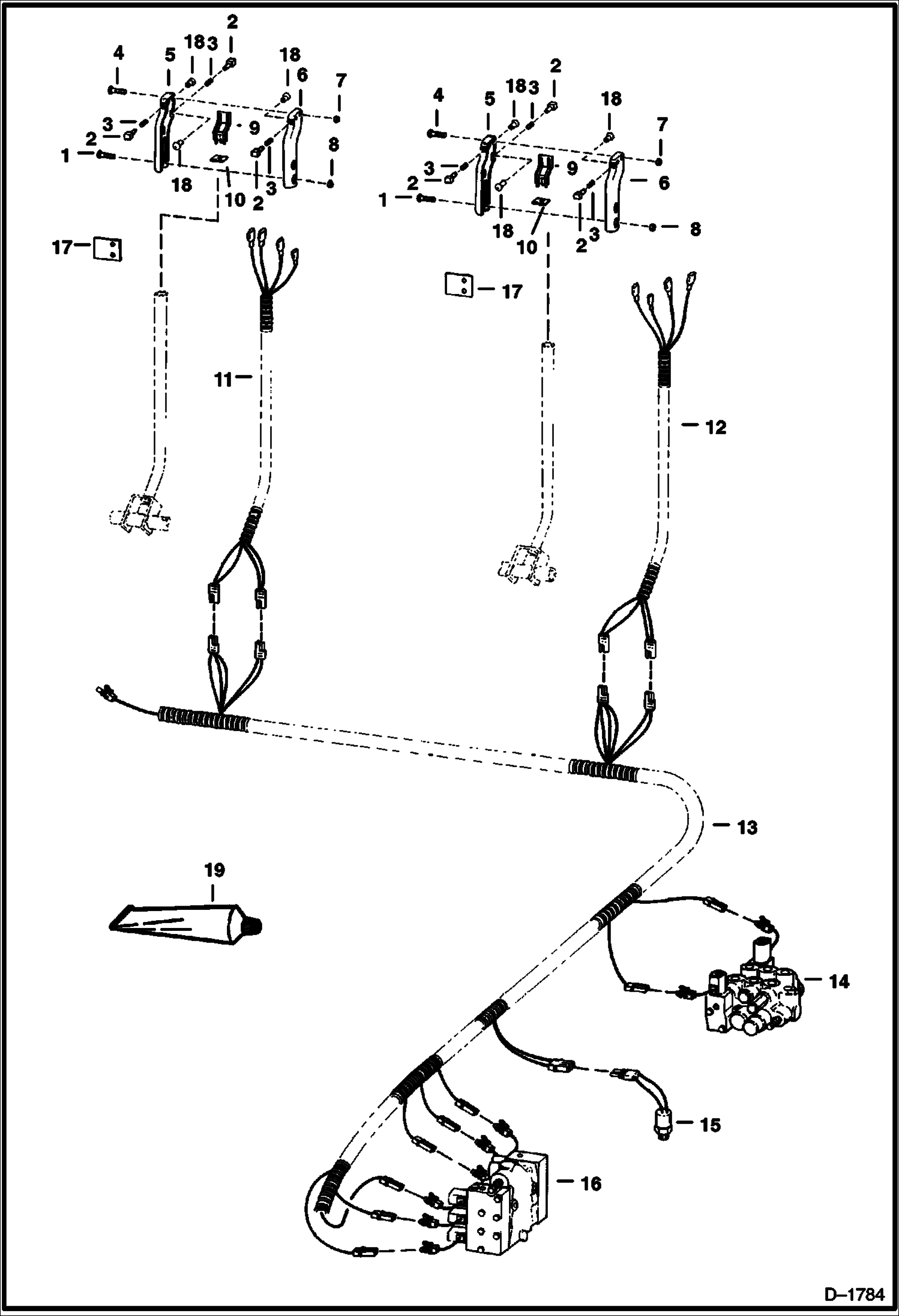

Запчасти Bobcat Feller Buncher CONTROLS ELECTRICAL (S/N 11078 & Above) ELECTRICAL SYSTEM

1

85G820

SCREW

2

6700356

SWITCH See BTI248 push - Was 6569446 - A

3

6571977

SPRING

4

85G620

SCREW

5

6569444

HANDLE Was 6569445 - D

6

6569445

HANDLE Was 6569444 - D

7

12D6

NUT 10

8

12D8

NUT

9

SWITCH NLA - Leaf - Was 6569451 - A

10

6572087

INSULATOR

11

6569516

HARNESS

12

6569515

HARNESS

13

6569658

HARNESS

14

VALVE See Illustration HYDRAULIC VALVE/ E1712

15

6569222

SWITCH pressure

16

VALVE See Illustration HYDRAULIC VALVE/ E1705

17

6572086

SHIM Use with old steering levers

18

6700354

RETAINER See BTI248 push switch

19

6654216

ADHESIVE See BTI248 3gr. tube
