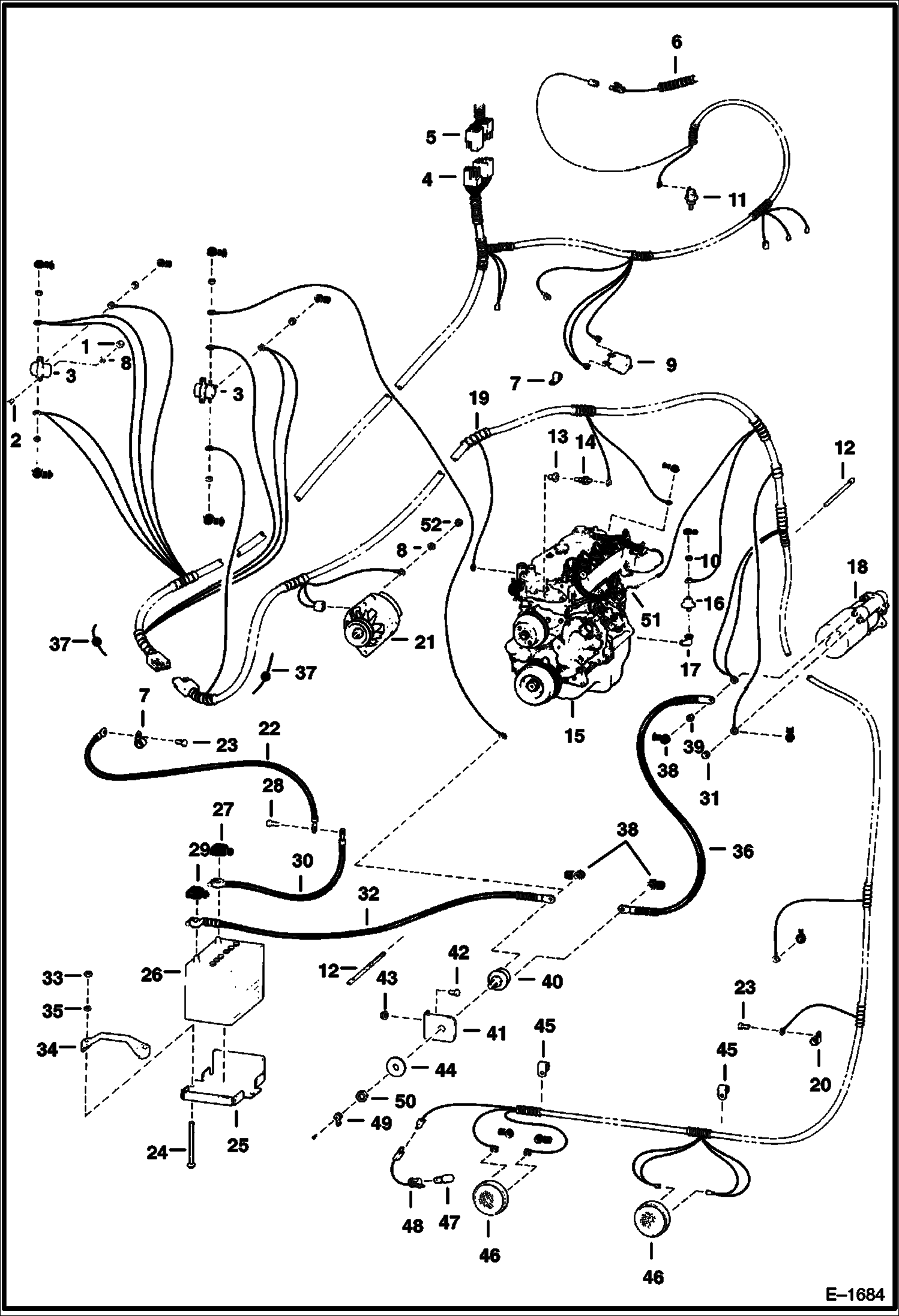

Запчасти Bobcat Feller Buncher ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

61D4

NUT 5

2

17C408

BOLT

3

6659319

SOLENOID Was 6632186 - A

4

6568660

HARNESS chassis

5

6568678

HARNESS See Illustration CAB ELECTRICAL/ E1687 CAB

6

HARNESS See Illustration CONTROLS ELECTRICAL/ D1784 See Illustration CONTROLS ELECTRICAL/ D1744 CONTROLS

7

30H46

CLIP

8

6E4

WASHER 10

9

6671062

SWITCH Hydro. Pressure - Was 6664577 - A

10

14D8

NUT

11

6632633

SWITCH hyd temp - Was 6564560 - A

12

6610510

TIE Was 1715312 - A

13

6564767

ADAPTER

14

6599492

SENDER eng. temp.

15

6631582

ENGINE See Illustration ENGINE/ B20987

16

6631010

SWITCH, PRESS OIL ENG pressure - eng. oil

17

1309105

ELBOW

18

STARTER See Illustration STARTER/ D2119 See Illustration STARTER/ B20986

19

6568659

HARNESS engine

19

6571574

HARNESS engine - for Bobcat Alt.

20

30H27

CLAMP

21

ALTERNATOR See Illustration ALTERNATOR/ B20984 See Illustration ALTERNATOR/ B20985

22

6563025

CABLE

23

84G3712

BOLT 5

24

6569623

BOLT hex head

24

6571757

BOLT carriage

25

6561733

MOUNT

26

6631611

BATTERY

27

6599652

BOOT

28

1CM1016

SCREW Was 2CM01016B - A

29

2356058

BOOT

30

6564716

CABLE negative - W/Ref. 27

31

4DM5

NUT

32

6568685

CABLE positive - W/Ref. 29

33

59D5

NUT 5

34

6569203

CLAMP

35

25E15

WASHER

36

6568683

CABLE

37

3675725

DIODE

38

6560172

COVER

39

4DM10

NUT

40

754019

SWITCH

41

6568688

BRACKET

42

17C516

BOLT

43

83D5

NUT 5

44

6590789

PLATE

45

30H26

CLIP

46

6563740

LAMP

47

898731

1156 BULB

48

6564907

SOCKET ASSY

49

KNOB NSS - Order Ref. 40

50

NUT NSS - Order Ref. 40

51

6632196

SOLENOID fuel shut-off

52

1DM6

NUT Was 4DM6 - A
