Запчасти Bobcat Feller Buncher HAND CONTROLS HYDROSTATIC SYSTEM

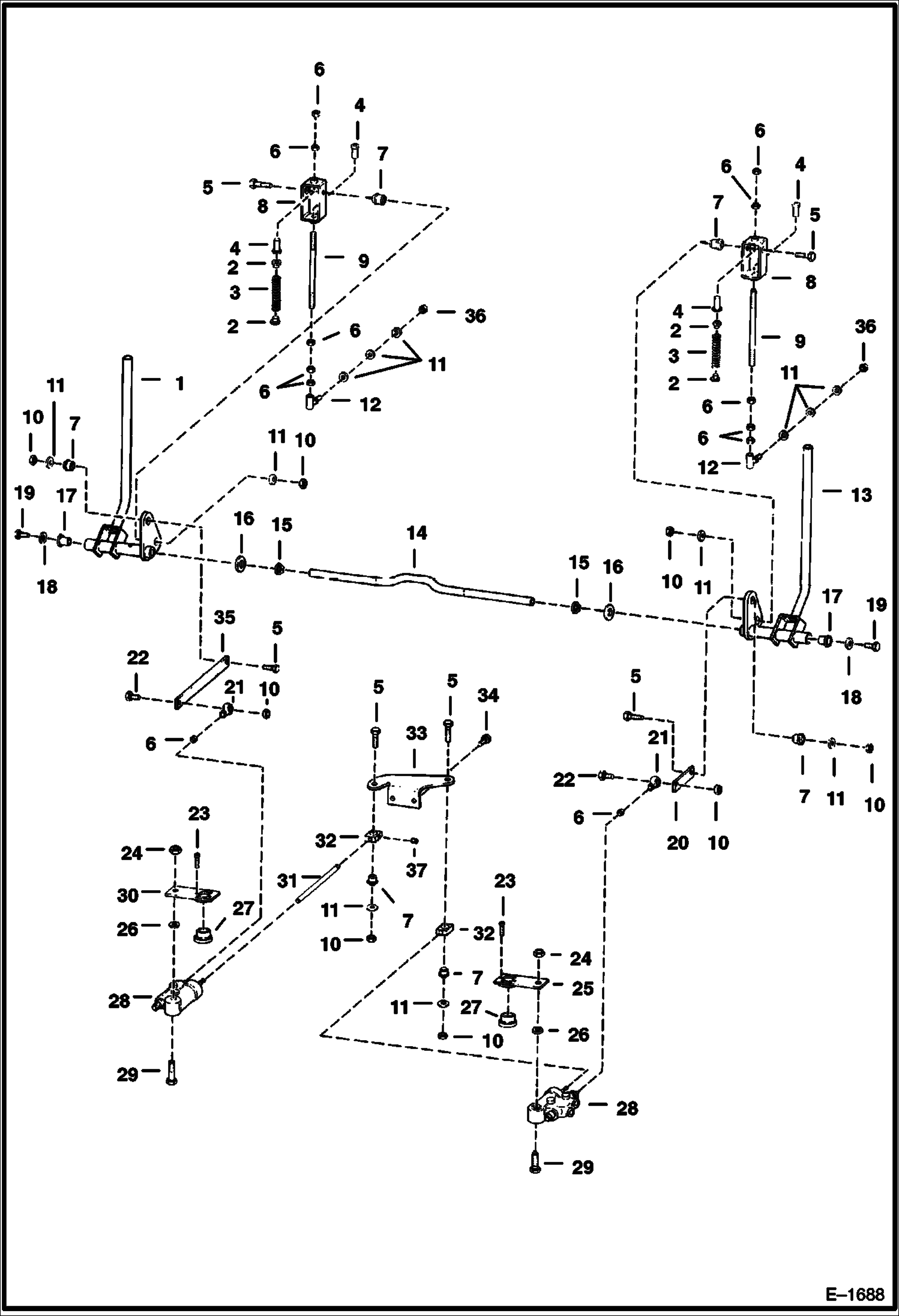

Схема запчастей Bobcat Feller Buncher - HAND CONTROLS HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

LEVER See BTI232 NLA - Was 6569194 - A

1

6571971

LEVER

2

6558429

BUSHING

3

6569181

SPRING

4

6569260

BUSHING

5

17C624

BOLT 5 Was 17C000628B - B

6

8D6

NUT 5

7

6630081

BUSHING neoprene

8

6577361

BRACKET Was 6569262 - A

9

6569188

ROD

10

85D6

NUT, 5

11

6563914

WASHER

12

6599744

BALL JOINT

13

LEVER See BTI232 NLA - Was 6569183 - A

13

6571972

LEVER

14

6569177

SHAFT

15

SNAP RING NLA - Was 1318544 - A

16

6569563

WASHER

17

6512027

BUSHING

18

6569178

WASHER

19

17C616

BOLT 5

20

6568631

LINK

21

6512954

ROD END R.H. threads

22

17C620

BOLT

23

21G1024

SCREW

24

85D10

NUT, 5

25

6569186

LEVER

26

6569179

WASHER

27

6630874

BUSHING

28

6631608

SERVO See Illustration SERVO/ D1660

29

17C1052

BOLT

30

6569184

LEVER

31

6568627

ROD

32

6521959

BLOCK

33

6569193

BRACKET

34

17C712

BOLT

35

6568632

LINK

36

86D6

NUT

37

33G404

SET SCRW5

Выбрано товаров: 39
