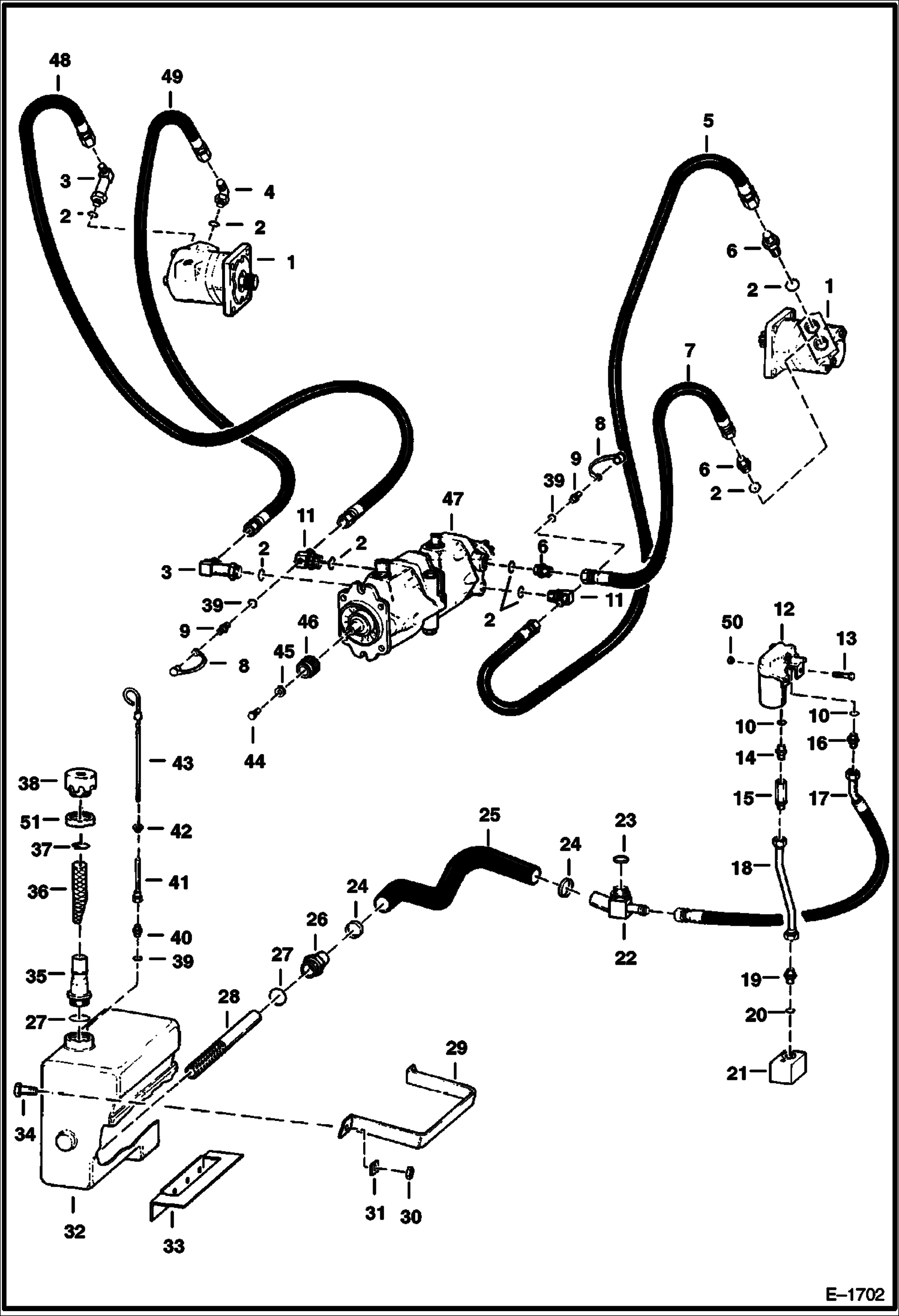

Запчасти Bobcat Feller Buncher HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

MOTOR See Illustration HYDROSTATIC MOTOR/ B20983

2

79K16

O RING 10

3

2513089

FITTING

4

17K10

FITTING W/Ref. 2

5

6559159

HOSE

6

15K10

ADAPTOR W/Ref. 2

7

6569161

HOSE

8

6630367

CAP

9

6630168

COUPLER diagnostic

10

79K10

O RING 10

11

6569169

ELBOW

12

FILTER See Illustration HYDRAULIC OIL FILTER/ B8962

13

17C516

BOLT

14

15K7

FITTING W/Ref. 10

15

6630868

RELIEF VALVE

16

730963

CONNECTR

17

6569163

HOSE

18

6568585

TUBE

19

15K8

FITTING W/Ref. 20

20

79K12

O RING 10

21

6568468

BLOCK

22

6565557

TEE Was 6566557 - B

23

79K20

O RING 10

24

42H32

HS CLAMP5

25

6569096

HOSE

26

6569100

ADAPTER

27

79K24

O RING 10

28

DIFFUSER TUBE NLA - diffuser - Was 6641221 - A

29

6569333

BAND

30

85D6

NUT, 5

31

6559447

WASHER

32

6569102

TANK

33

6559451

BRACKET

34

17C624

BOLT 5

35

6569098

TUBE

36

6558604

SCREEN

37

713133

SNAP RING

38

CAP NLA - Pack of 12 - Was 1779011B - A

38

6577785

CAP breather - Qty. of 1

39

79K6

O RING 10

40

15K5

FITTING

41

6569101

TUBE

42

6553411

BUSHING

43

6560575

DIPSTICK

44

18C616

BOLT 5

45

616783

WASHER

46

6562878

ADAPTER splined - Was 656878 - D

47

PUMP See Illustration HYDROSTATIC PUMPS/ B20981 HYDROSTATIC

48

6631708

HOSE

49

6631707

HOSE

50

85D5

NUT 5

51

6569097

SEAL
