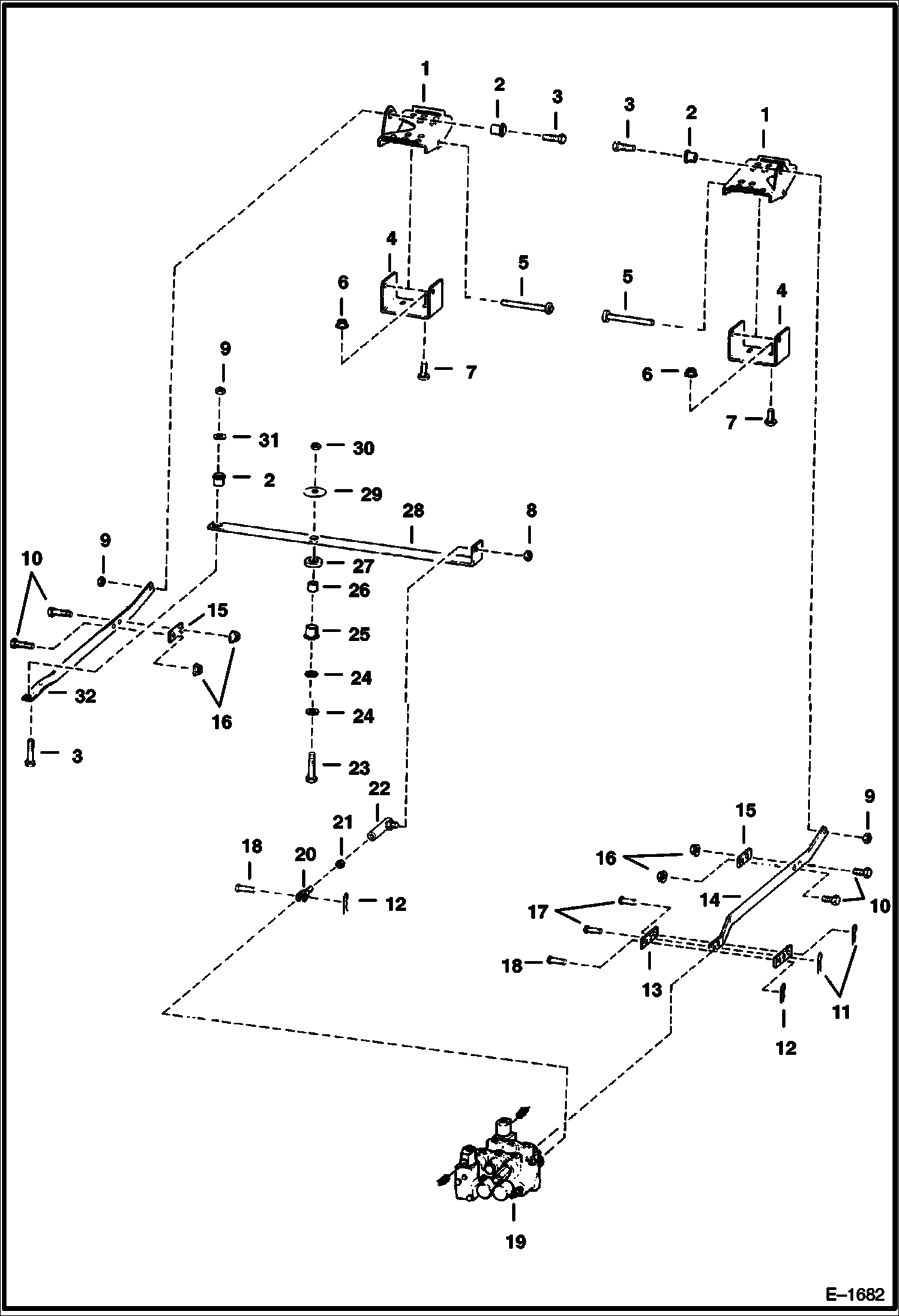

Запчасти Bobcat Feller Buncher CONTROL PEDALS HYDRAULIC SYSTEM

1

7115219

PEDAL Was 6726680 - A

2

6630081

BUSHING

3

17C624

BOLT 5

4

6564722

BRACKET

5

6564657

PIN

6

57D6

NUT 5

7

6704349

BOLT Was 6514537 - B

8

82D5

NUT 5

9

85D6

NUT, 5

10

17C614

BOLT

11

1306637

CLIP

12

6513495

COTTER PIN

13

6564544

LINK

14

6564720

BAR

15

6563151

LINK

16

83D6

NUT 5

17

4F6106

PIN

18

6564654

PIN

19

6586296

VALVE See Illustration HYDRAULIC VALVE/ E1712 WAS 6593362 - A

20

6585201

CLEVIS

21

8D5

NUT

22

6512356

BALL JOINT

23

6565067

BOLT

24

25E17

WASHER 5

25

BEARING See BTI228 NLA

25

6569599

BEARING

26

INSERT See BTI228 NLA

26

6569598

INSERT

27

STRIP See BTI228 NLA

27

6569597

WASHER

28

6564721

LEVER

29

616789

WASHER

30

61D6

NUT 5

31

6563914

WASHER

32

6569299

BAR
