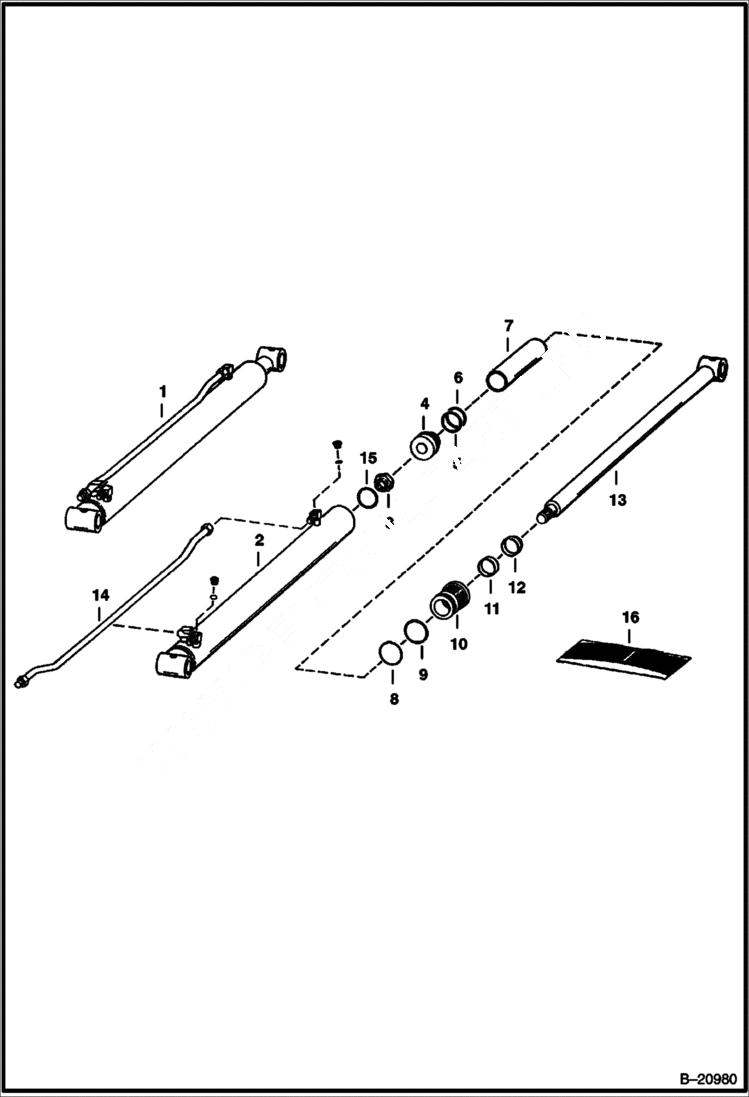

Запчасти Bobcat Feller Buncher LIFT CYLINDER HYDRAULIC SYSTEM

1

6529692

CYLINDER Ref. 2 - 15 - Was 6592991 - A

2

6529695

CASE Also Order 6529690 Tube - Was 6592996 - A

3

92D12

NUT Was 86D000012B - A

4

6543168

PISTON

5

25K30126

O RING 10

6

6519328

SEAL

7

SPACER NLA

8

25K60128

O RING 10 Was 54K60128 - B,D

9

80K328

BK UP RG back-up

10

6539236

HEAD Was 6555078 - A

11

6538141

SEAL rod

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

6592895

ROD

14

6529383

TUBE For Cylinder W/Fitting & Clamp in Line - Was 6592992 - A

14

6529690

TUBE For Cylinder W/Fitting & Clamp Offset

15

58K140

O-RING

16

6534572

SEAL KIT Ref. 5, 6, 8, 9, 11,12 & 15 - Was 6555117 - A
