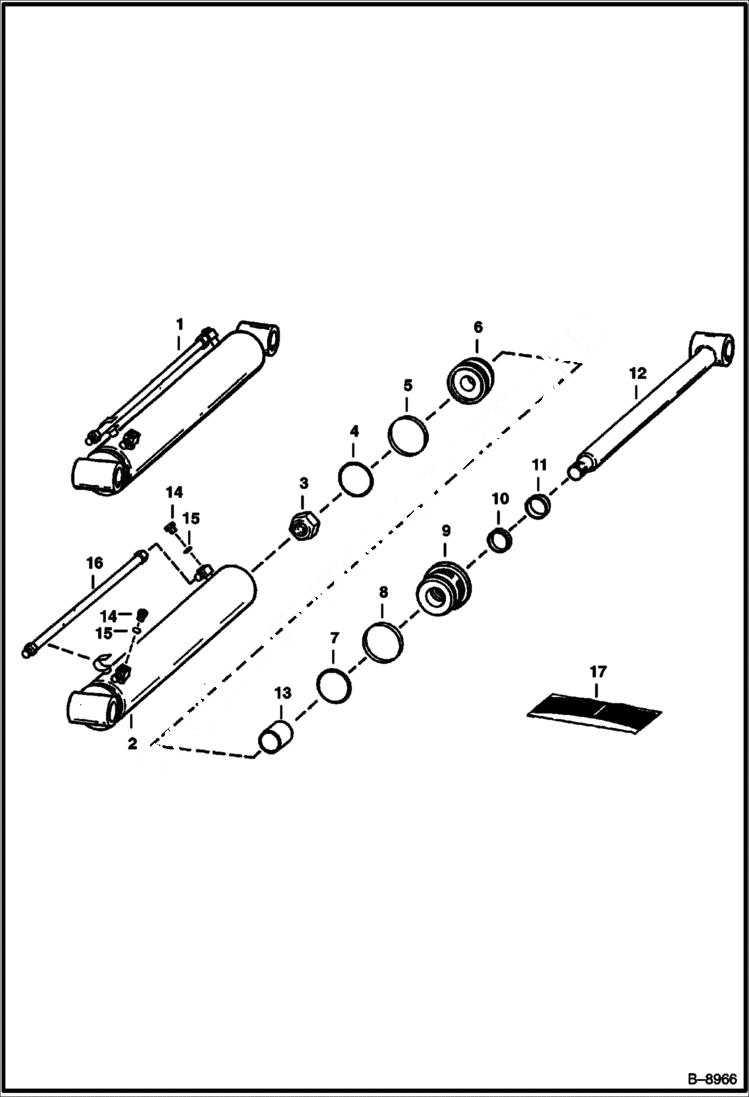

Запчасти Bobcat Feller Buncher LEVELING CYLINDER HYDRAULIC SYSTEM

1

6593073

CYLINDER Ref. 2 - 15

2

6593079

CASE

3

92D12

NUT Was 86D000012B - B

4

25K30126

O RING 10

5

6593425

O-RING

6

6543168

PISTON

7

25K60128

O RING 10 Was 54K60128 - B,D

8

73K328

RING back-up - Was 80K328 - D

9

6539236

HEAD Was 6555078 - A

10

6538141

SEAL

11

6690707

WIPER, ROD CYL Was 6665086 - A

12

6593076

ROD

13

6593485

STOP

14

47K5

PLUG

15

79K6

O RING 10

16

6593072

TUBE

17

7138070

SEAL KIT Ref. 3 - 5, 7, 8, 10 & 11 - Was 6589789 - A
