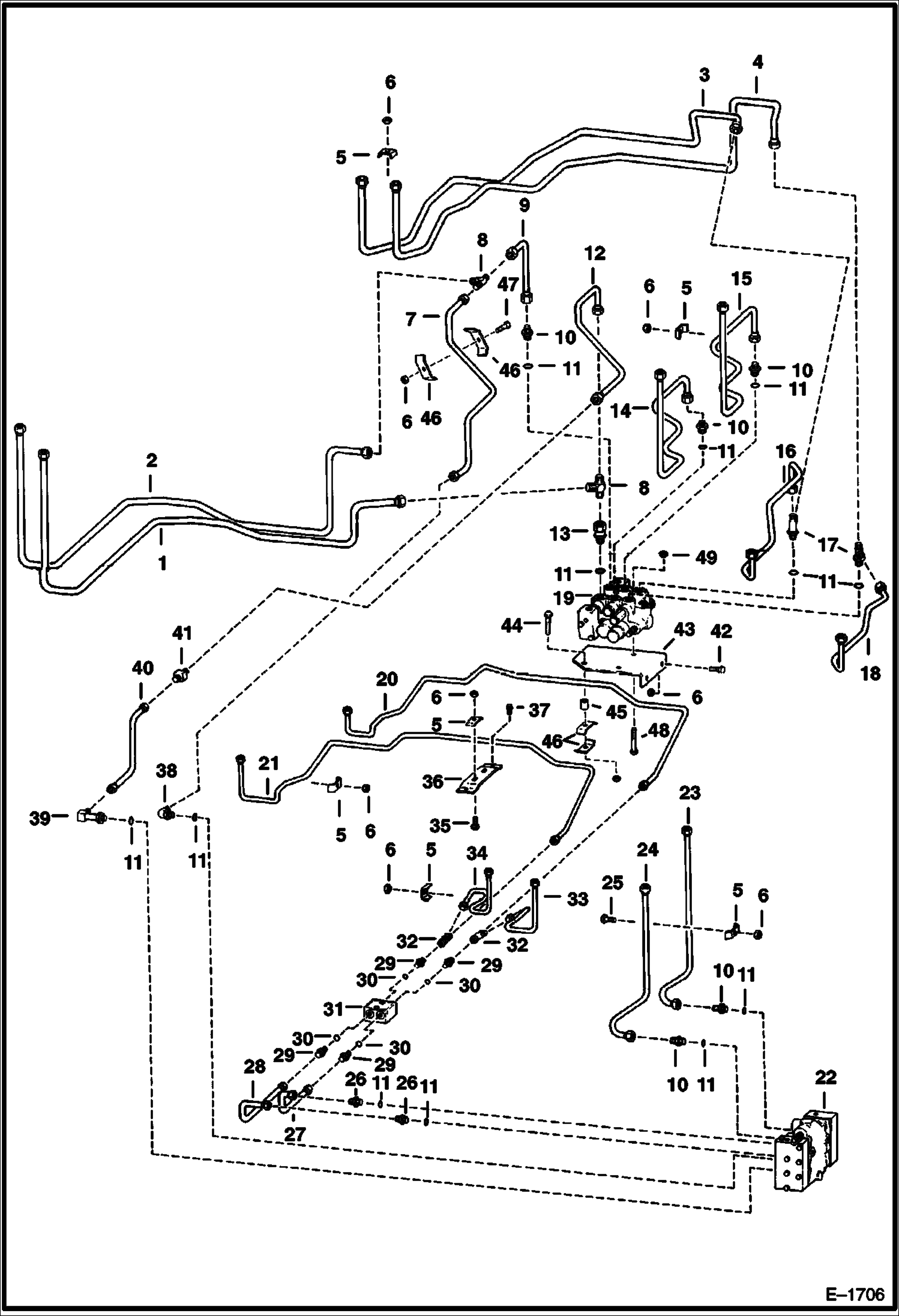

Запчасти Bobcat Feller Buncher HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6568447

TUBE To Shear Cyl.

2

6568446

TUBE To Shear Cyl.

3

6568441

TUBE Rod End Lift Cyl.

4

6568440

TUBE Base End Lift Cyl.

5

6502203

CLAMP

6

85D6

NUT, 5

7

6569656

TUBE

8

1311338

TEE

9

6568469

TUBE

10

15K7

FITTING

11

79K10

O RING 10

12

6568450

TUBE

13

1312113

FTG swivel

14

6568445

TUBE Base End Tilt Cyl.

15

6568444

TUBE Rod End Tilt Cyl.

16

6568443

TUBE Rod End Lift Cyl.

17

21K7

TEE

18

6568442

TUBE Base End Lift Cyl.

19

6586296

VALVE See Illustration HYDRAULIC VALVE/ E1712 See Illustration HYDRAULIC VALVE/ B24435 WAS 6593362 - A

20

6569685

TUBE Base End Leveling Cyl.

21

6569686

TUBE Rod End Leveling Cyl.

22

6587411

VALVE See Illustration HYDRAULIC VALVE/ E1705 WAS 6593360 - A

23

6569653

TUBE Rod End Accumulator Cyl.

24

6569652

TUBE Base End Accumulator Cyl.

25

17C648

BOLT 5

26

731794

CONNECTR

27

6569654

TUBE

28

6569655

TUBE

29

755056

CONNECTR

30

79K6

O RING 10

31

6630527

VALVE lock - leveling cylinders

31

6660645

SEAL KIT

32

13K6

TEE

33

6568493

TUBE Base End Leveling Cyl.

34

6568459

TUBE Rod End Leveling Cyl.

35

17C620

BOLT

36

6568913

BRACKET

37

84G3716

SCREW 5

38

17K7

ELBOW

39

6519195

ELBOW

40

6569651

TUBE

41

6568481

BLOCK

42

17C616

BOLT 5

43

6565558

MOUNT

44

17C636

BOLT

45

6569806

SPACER

46

6569068

CLAMP

47

17C624

BOLT 5

48

17C560

BOLT

49

85D5

NUT 5
