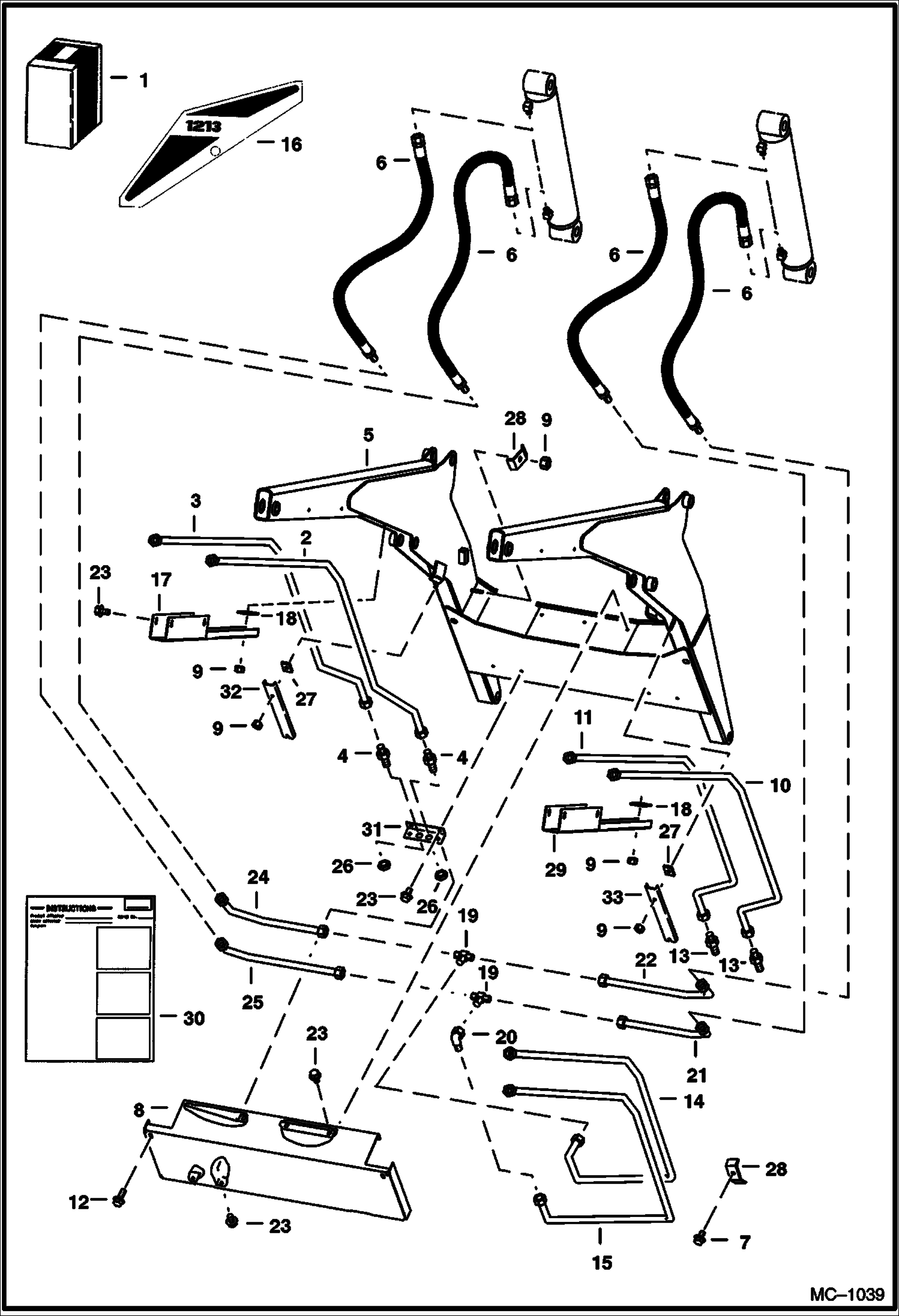

Запчасти Bobcat Feller Buncher LIFT ARM KIT HYDRAULIC SYSTEM

1

6577271

LIFT ARM KIT Ref. 2 - 23

2

6576729

TUBE

3

6576730

TUBE

4

6569559

ADAPTER

5

6576619

LIFT ARM

6

6569174

HOSE

7

84G3720

BOLT

8

6576715

SHIELD

9

83D6

NUT 5

10

6576727

TUBE

11

6576728

TUBE

12

17C656

BOLT Was 84G-3756 - D

13

6569558

ADAPTER

14

6576731

TUBE

15

6576732

TUBE

16

6569230

DECAL Model Number - L.H.

16

6569229

DECAL Model Number - R.H.

17

6576649

SHIELD

18

6568617

SPACER

19

10K7

TEE

20

11K7

ADAPTER

21

6576723

TUBE

22

6576721

TUBE

23

84G3712

BOLT 5

24

6576725

TUBE

25

6576726

TUBE

26

86F7

LOCK NUT

27

6576733

SPACER

28

6502203

CLAMP

29

6576666

SHIELD

30

6570528

INSTRUCTIONS

31

6577276

BRACKET

32

6576713

SHIELD L.H.

33

6576714

SHIELD R.H.
