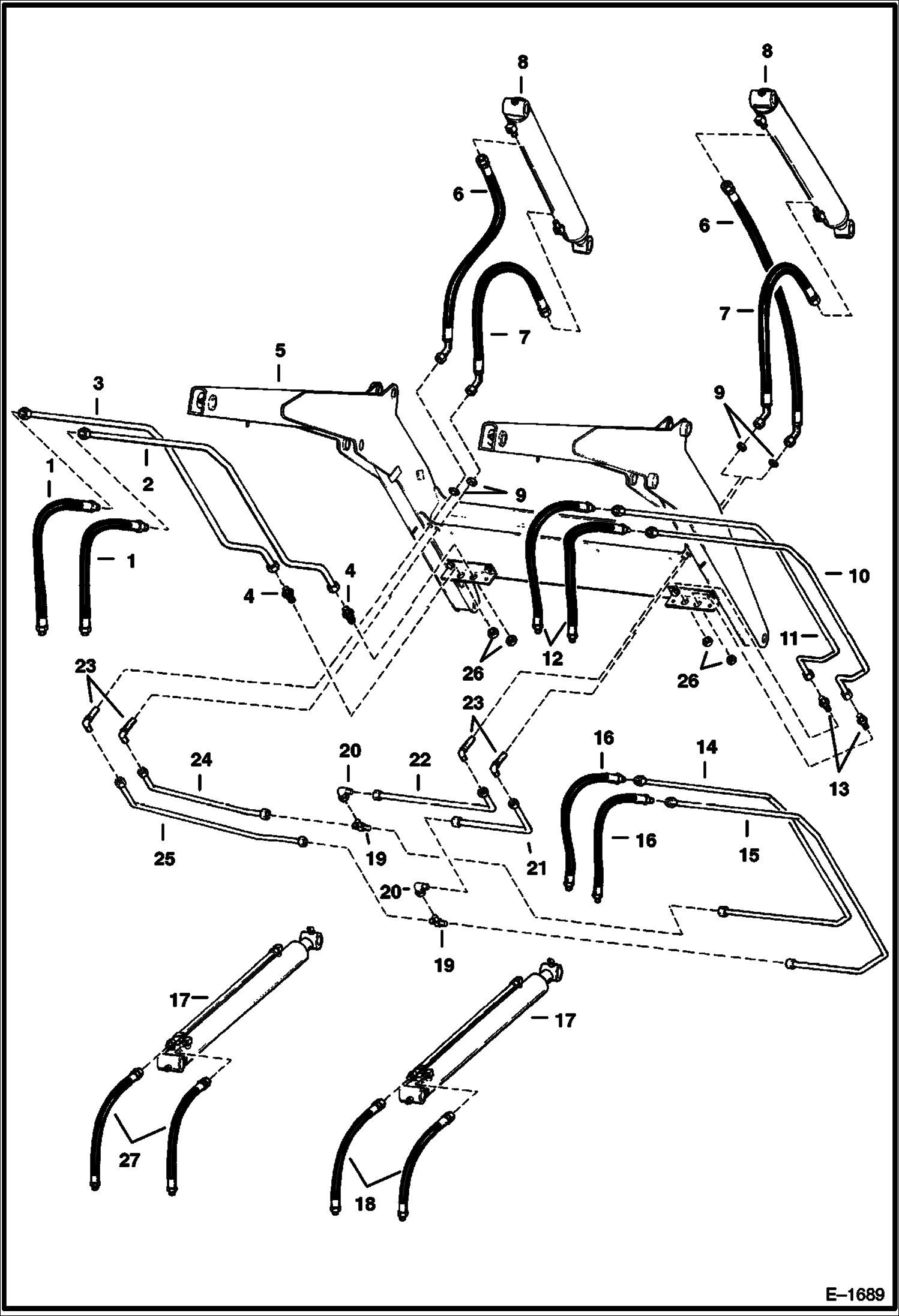

Запчасти Bobcat Feller Buncher LIFT ARM HYDRAULICS HYDRAULIC SYSTEM

1

6569139

HOSE

2

6568603

TUBE

3

6568604

TUBE

4

6569559

ADAPTER

5

LIFT ARM See Illustration LIFT ARM KIT/ MC1039 NLA - Order 6577271 - See Ill. if Original Lift Arm Has Been Replaced By 6577271 Lift Arm Kit - Was 6567098 - A

6

6569052

HOSE

7

6569053

HOSE

8

6593037

CYLINDER See Illustration TILT CYLINDER/ B8967 TILT

9

86F6

NUT

10

6568608

TUBE

11

6568607

TUBE

12

6568466

HOSE

13

6569558

ADAPTER

14

6568605

TUBE

15

6568606

TUBE

16

6560402

HOSE Was 6569140 - A

17

CYLINDER See Illustration LIFT CYLINDER/ B20980 LIFT

18

6569174

HOSE

19

6569146

TEE

20

11K6

UNION

21

6568610

TUBE

22

6568609

TUBE

23

88F6

ELBOW

24

6568611

TUBE

25

6568612

TUBE

26

86F7

LOCK NUT

27

6571580

HOSE
