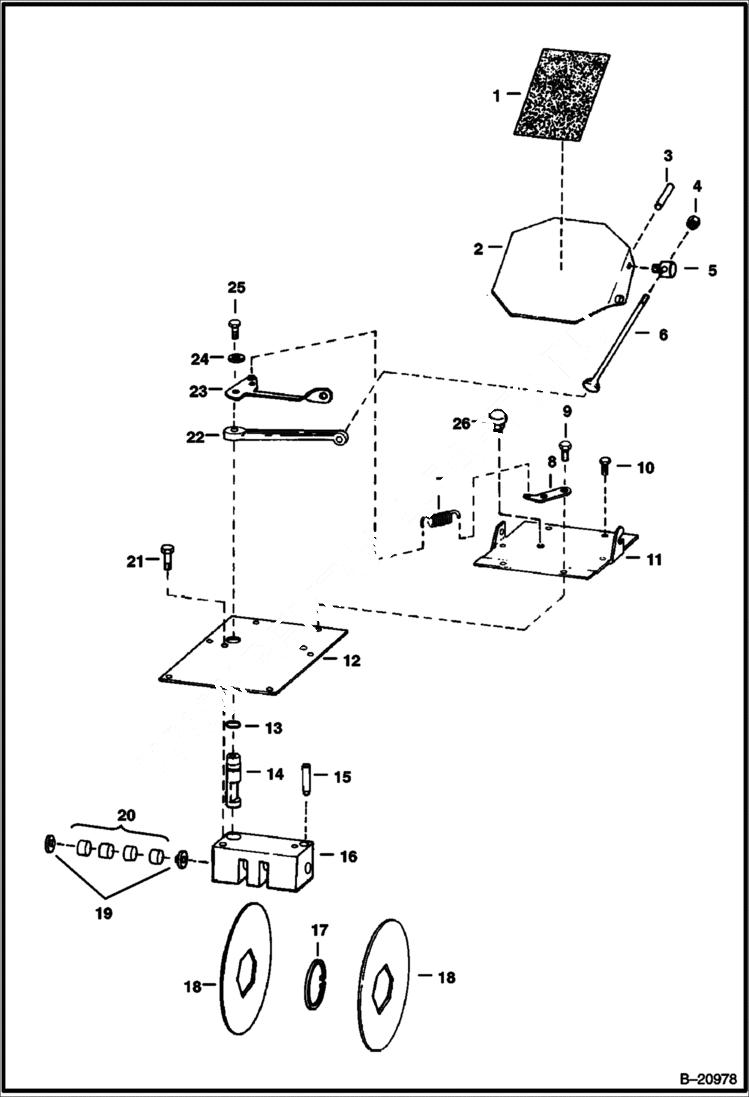

Запчасти Bobcat Feller Buncher DISC BRAKES DRIVE TRAIN

1

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

2

6563187

PEDAL

3

14J2516

PIN

4

85D8

NUT, 5

5

6563178

PIVOT

6

6569601

ROD

7

6584584

SPRING Was 6505076 - B

8

6559218

ANGLE

9

84G3716

SCREW 5

10

84G3712

BOLT 5

11

6554093

PLATE

12

6558467

COVER

13

25K30100

O RING 10

14

6562755

PIN

15

784466

DOWEL PIN

16

6562757

BLOCK

17

742666

SNAP RING

18

6559237

DISC

19

6562756

WASHER wear

20

6557747

PAD

21

17C812

BOLT

22

6563823

LEVER

23

6577552

BRACKET switch - Was 6577553 - A

24

6506477

WASHER

25

17C820

BOLT

26

6632601

BREATHER
