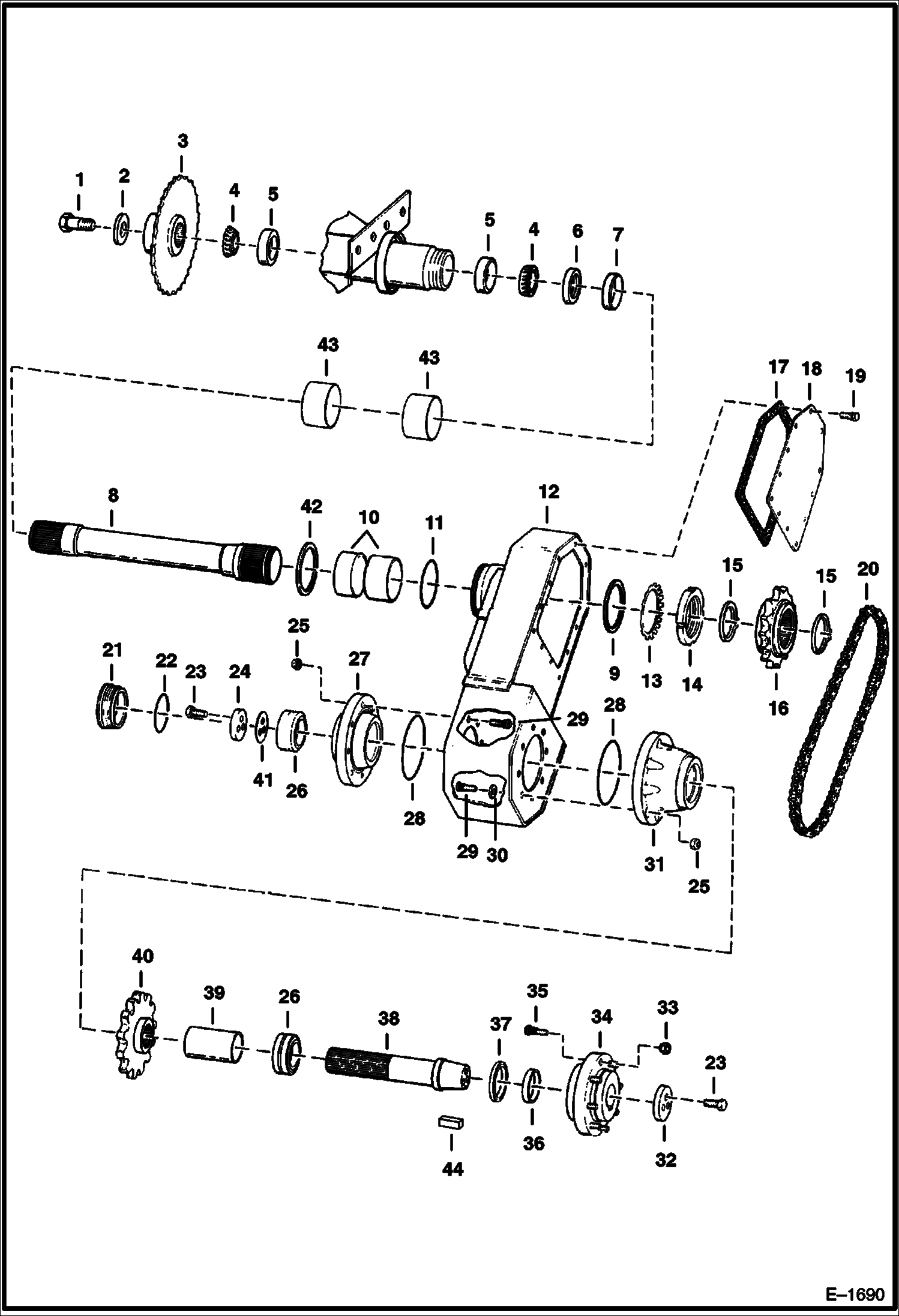

Запчасти Bobcat Feller Buncher FINAL DRIVE ASSEMBLY (Rear) DRIVE TRAIN

1

18C1628

SCREW

2

6558694

WASHER

3

6568918

SPROCKET, AXLE

4

1321608

BEARING, CONE

5

1321607

CUP, BEARING

6

6658229

SEAL, OIL Was 6513451 - A

7

6558693

WEAR RING

8

6568372

AXLE

9

6577124

BEARING thrust

10

BEARING journal - Was 6630866 NLA - Was 6577125 NLA - Was 6577125 - A

11

6630864

SEAL

12

6575650

HOUSING Was 6567389 - A

13

6568592

WASHER lock

14

6578512

NUT Was 6568593 - A

15

1307921

SNAP RING

16

6568374

SPROCKET Was 6568344 - D

17

6567393

GASKET

18

6567387

COVER

19

84G3710

SCREW

20

6567165

CHAIN Less Connector Link

20

6567119

LINK connector - Diamond

20

6631640

LINK connector - Tsubaki

21

6567159

CAP

22

25K40420

O RING

23

17C1024

BOLT

24

6569276

CAP

25

86D8

NUT

26

6630236

BEARING

26

6648452

BEARING

26

6648453

RACE

27

6567155

FLANGE

28

25K40708

O RING 10

29

6568591

BOLT

30

6567375

WASHER

31

6567152

FLANGE

32

6565947

WASHER

33

6564669

NUT, 10 Was 6519169 - A

34

6567185

HUB W/Ref. 24

35

6709170

BOLT, WHEEL Was 6559502 - A

36

6630151

SLEEVE

37

6630142

SEAL

38

6567214

SHAFT axle

39

6567158

SPACER

40

6567169

SPROCKET

41

6565975

SHIM 0.005

41

SHIM NLA - 0.025 - Was 6575652 - A

42

6577123

BEARING thrust

43

6575640

SLEEVE wear

44

7J10208

KEY
