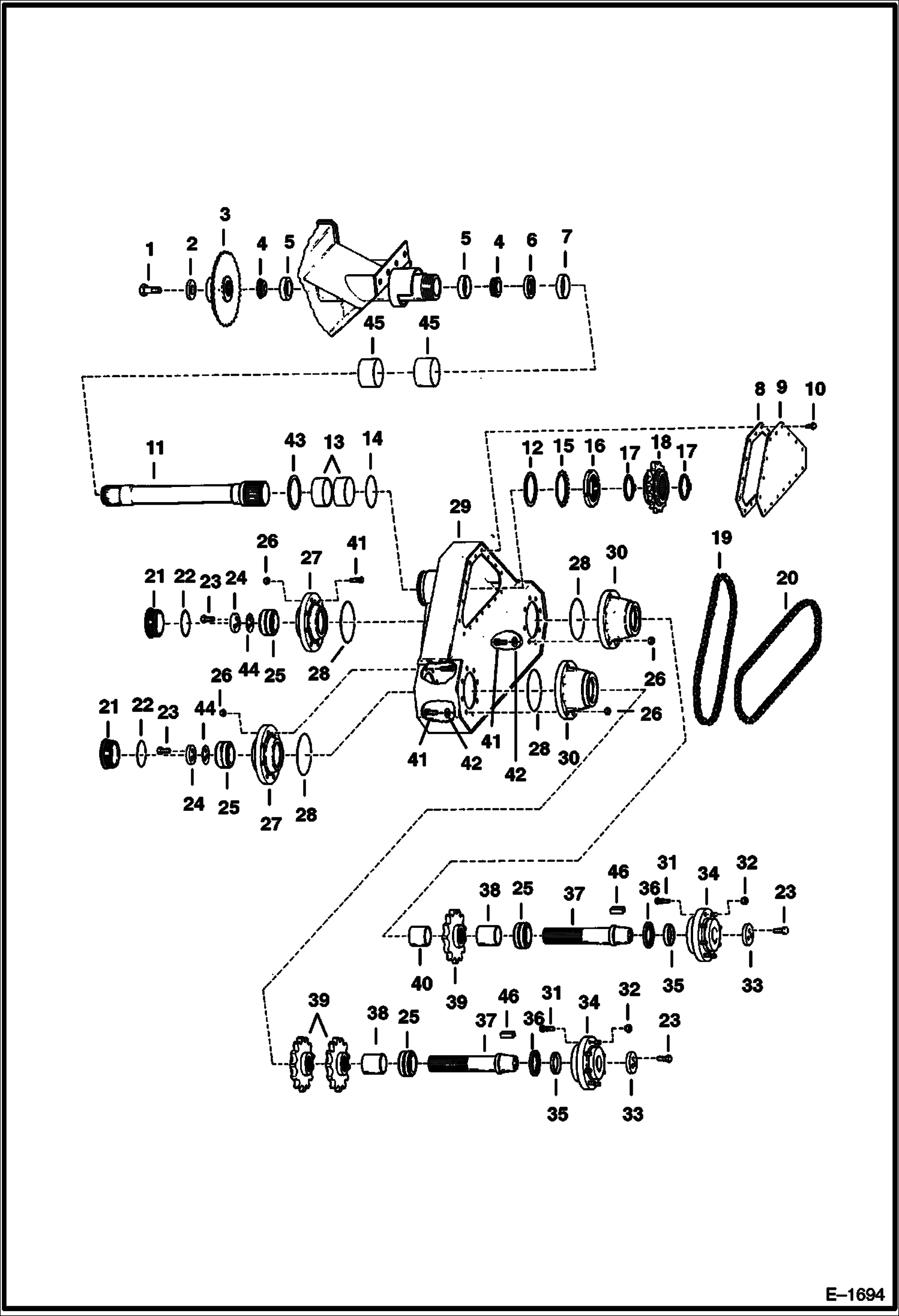

Запчасти Bobcat Feller Buncher FINAL DRIVE ASSEMBLY (Front) DRIVE TRAIN

1

18C1628

SCREW

2

6558694

WASHER

3

6568918

SPROCKET, AXLE

4

1321608

BEARING, CONE

5

1321607

CUP, BEARING

6

6658229

SEAL, OIL Was 6513451 - A

7

6558693

WEAR RING

8

6567384

GASKET

9

6567388

COVER

10

84G3710

SCREW

11

6568372

AXLE

12

6577124

BEARING thrust

13

BEARING NLA - Journal - Was 6633297 - A

14

6630864

SEAL

15

6568592

WASHER lock

16

6578512

NUT Was 6568593 - A

17

1307921

SNAP RING

18

6568374

SPROCKET Was 6568344 - D

19

6567164

CHAIN Less Connector Link

19

6567119

LINK connector - Diamond

19

6631640

LINK connector - Tsubaki

20

6569826

CHAIN Less Connector Link

20

6567119

LINK connector - Diamond

20

6631640

LINK connector - Tsubaki

21

6567159

CAP

22

25K40420

O RING

23

17C1024

BOLT

24

6569276

CAP

25

6630236

BEARING

25

6648452

BEARING

25

6648453

RACE

26

86D8

NUT

27

6567155

FLANGE

28

25K40708

O RING 10

29

6575651

HOUSING Was 6567390 - A

30

6567152

FLANGE

31

6709170

BOLT, WHEEL Was 6559502 - A

32

6564669

NUT, 10 Was 6519169 - A

33

6565947

WASHER

34

6567185

HUB

35

6630151

SLEEVE

36

6630142

SEAL

37

6567214

SHAFT axle

38

6567157

SPACER

39

6567169

SPROCKET

40

6567156

SPACER

41

6568591

BOLT

42

6567375

WASHER

43

6577123

BEARING thrust

44

6565975

SHIM 0.005

44

SHIM NLA - 0.025 - Was 6575652 - A

45

6575640

SLEEVE wear

46

7J10208

KEY
