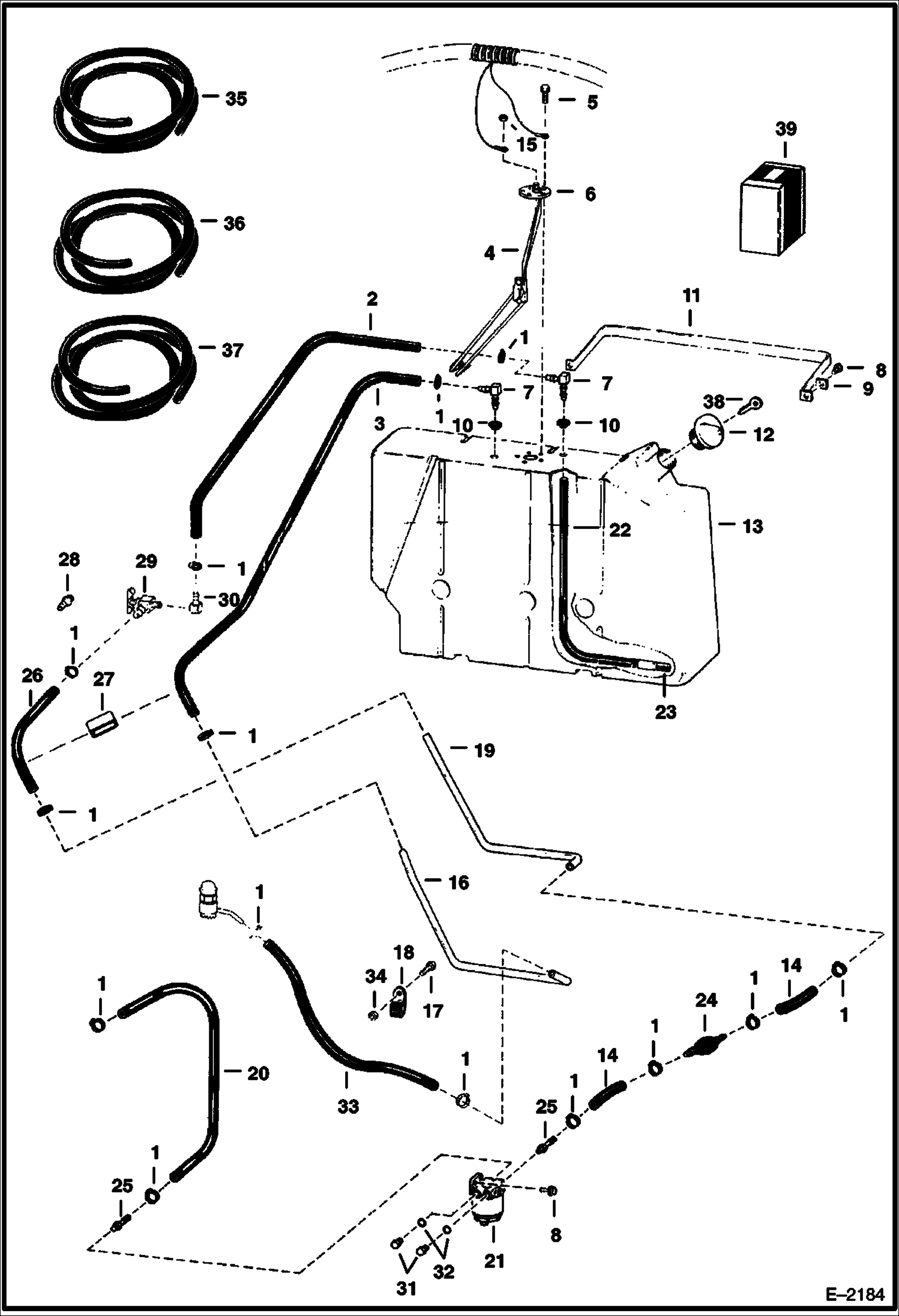

Запчасти Bobcat Feller Buncher FUEL SYSTEM MAIN FRAME

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - 38'' (965,2mm) long - Order Ref. 35

3

HOSE NLA - 48'' (1219,2mm) long - Order Ref. 35

4

6568175

SENDER, FUEL

5

87G1008

SCREW Was 85G001008B - B

6

6630972

GASKET

7

6681462

ELBOW Was 6598908 - A

8

84G3716

SCREW 5

9

6559447

WASHER

10

6553411

BUSHING 0.38'' ID

11

6562605

BAND

12

6632468

CAP Was 6555717 - A

12

CAP NLA - locking - W/Ref. 38 - Code GC020 - Was 6635877 - A

12

6661696

CAP, FUEL LOCKING locking - W/Ref. 38 - Code PK510

13

6567944

TANK

14

HOSE NLA - 7'' (177,8 mm) long - Order Ref. 36

15

14D10

NUT

16

6569319

TUBE

17

17C616

BOLT 5

18

30H31

CLAMP 10

19

6569318

TUBE

20

HOSE NLA - 17'' (431,8 mm) long - Order Ref. 36 - to injection pump

21

FILTER See Illustration FUEL FILTER/ B5653 See Illustration FUEL FILTER/ C2948

22

HOSE NLA - 21'' (533,4 mm) long - Order Ref. 37 - Was 6564193 - A

23

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

24

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

25

1324240

CONNECTOR

26

HOSE NLA - 13'' (330,2mm) long - Order Ref. 36

27

6515603

GROMMET

28

6513421

CONNECTOR Use W/Non Barbed Valve

29

6632593

VALVE shut off - Was 6512138 - B

30

6598753

ELBOW

31

24K4

PLUG W/Ref. 32

31

6515682

PLUG

32

79K5

O RING 10

32

6515466

WASHER

33

HOSE NLA - 23'' long - Order Ref. 35

34

85D6

NUT, 5

35

6577821

HOSE bulk - sold per foot - Was 672221 - A

36

6577822

HOSE bulk - Sold Per Foot - Was 6562515 - A

37

6569752

HOSE BULK/FT bulk - sold per foot

38

6654374

KEY Code GC020

38

6587458

KEY Code PK510
