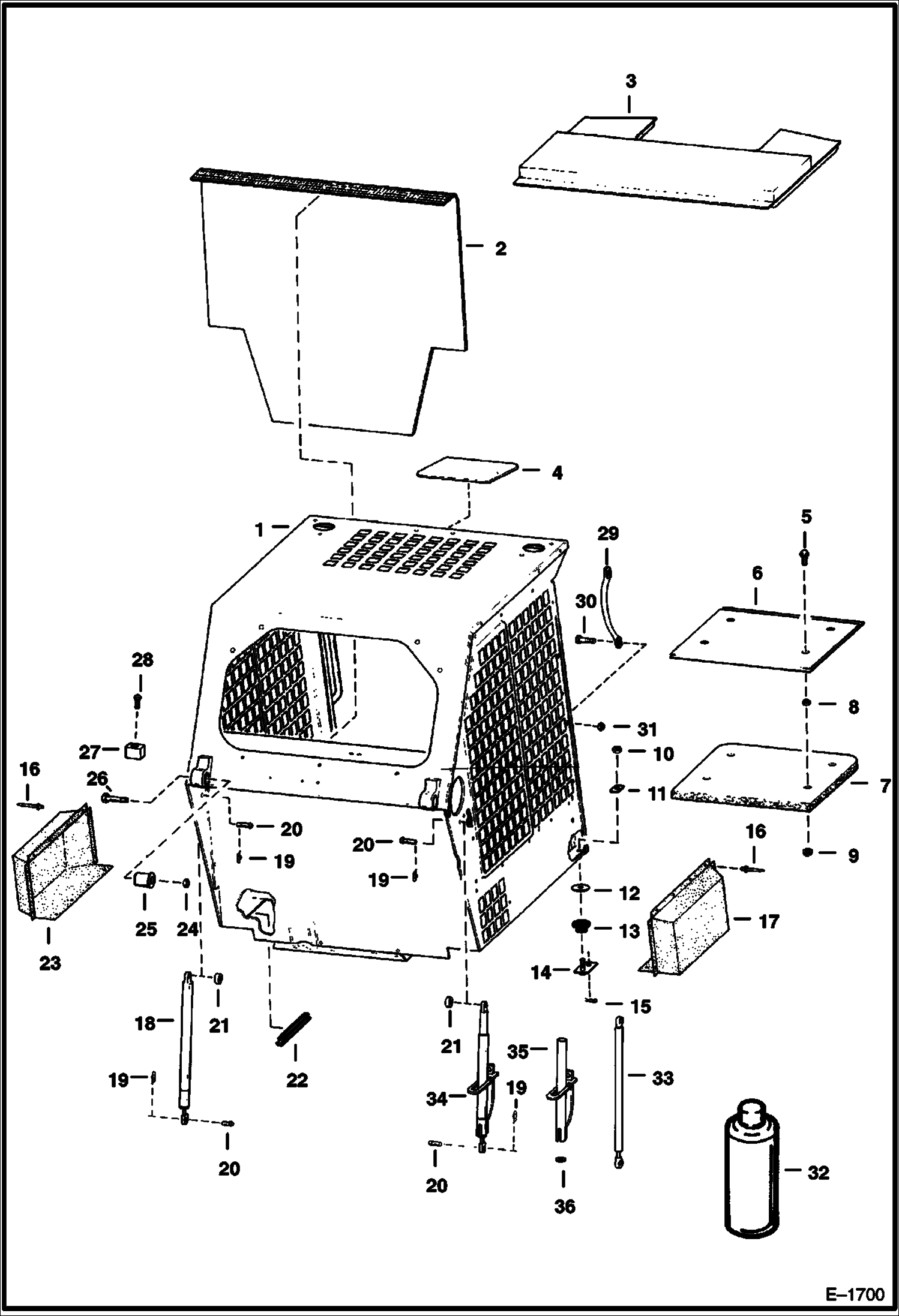

Запчасти Bobcat Feller Buncher OPERATOR CAB MAIN FRAME

1

6569931

CAB Was Sales

2

6576494

INSULATION Was 6568179 - A

3

6565373

INSULATION

4

6701986

WINDOW top - Was 6563391

5

35C514

BOLT

6

6577439

INSULATION Was 6567903 - A

7

6577273

INSULATION Was 6567902 - A

8

61D5

NUT

9

83D5

NUT 5

10

59D8

NUT 5 Was 85D000008B - B

11

6553709

WASHER

12

6543321

WASHER

13

6560633

DAMPENER rubber

14

6564701

BRACKET

15

1306637

CLIP

16

6515213

RIVET

17

6569404

SCREEN

18

6700171

GAS SPRING w/o lock - also order 6675257, clevis - Was 6706590 - A

18

6714062

KIT Heavy Duty Gas Spring

18

91G416

SCREW

18

6900531

INSTRUCTIONS For Kit 6714062

19

6631418

RING, RETAINING

20

6567743

PIN

21

6567604

SPACER

22

6555351

SEAL bulk - sold per foot

23

6569405

SCREEN

24

83D10

NUT 5

25

6562602

BUSHING

26

17C1056

BOLT

27

6569055

STOP

28

61G416

BOLT

29

6631935

HANDLE

30

7G412

SCREW

31

61D4

NUT 5

32

6632469

ADHESIVE insulation - 24 oz. Spray Can

33

GAS SPRING NLA - W/Lock - Order Ref. 34-36

34

6664205

GAS SPRING also order 6675257, clevis

34

6675257

CLEVIS

35

6701175

TUBE stop

36

6701174

WASHER
