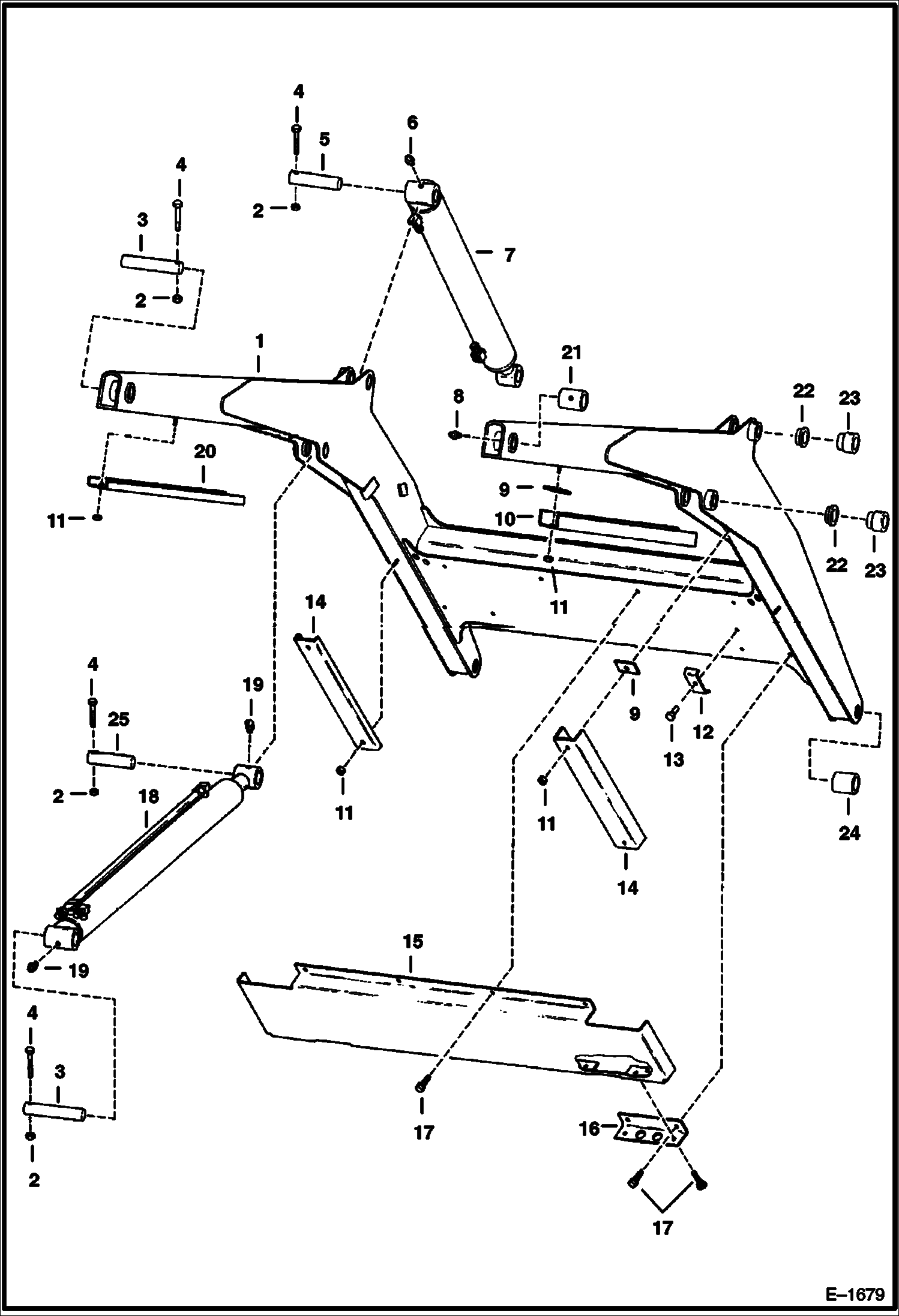

Запчасти Bobcat Feller Buncher LIFT ARM MAIN FRAME

1

LIFT ARM See Illustration LIFT ARM KIT/ MC1039 NLA - Order 6577271 Kit - Was 6567098 - A

2

85D6

NUT, 5

3

6559002

PIN

4

17C640

BOLT 5

5

6547595

PIN

6

10H25

FITTING, GREASE 5

7

6593037

CYLINDER See Illustration TILT CYLINDER/ B8967 TILT

8

10H35

FITTING, GREASE 10

9

6568617

SPACER

10

6568614

SHIELD

11

83D6

NUT 5

12

6502203

CLAMP

13

84G3720

BOLT

14

6569018

SHIELD

15

6568613

SHIELD

16

6568616

BRACKET

17

84G3712

BOLT 5

18

CYLINDER See Illustration LIFT CYLINDER/ B20980 LIFT

19

11H15

GREASE FITTING

20

6568615

SHIELD

21

6558986

BUSHING Weld-In

22

6558991

BUSHING Weld-On

23

6558992

BUSHING Weld-On

24

6567096

BUSHING Weld-In

25

6547593

PIN, PIVOT
