Запчасти Bobcat Feller Buncher MAIN FRAME & ATTACHING PARTS MAIN FRAME

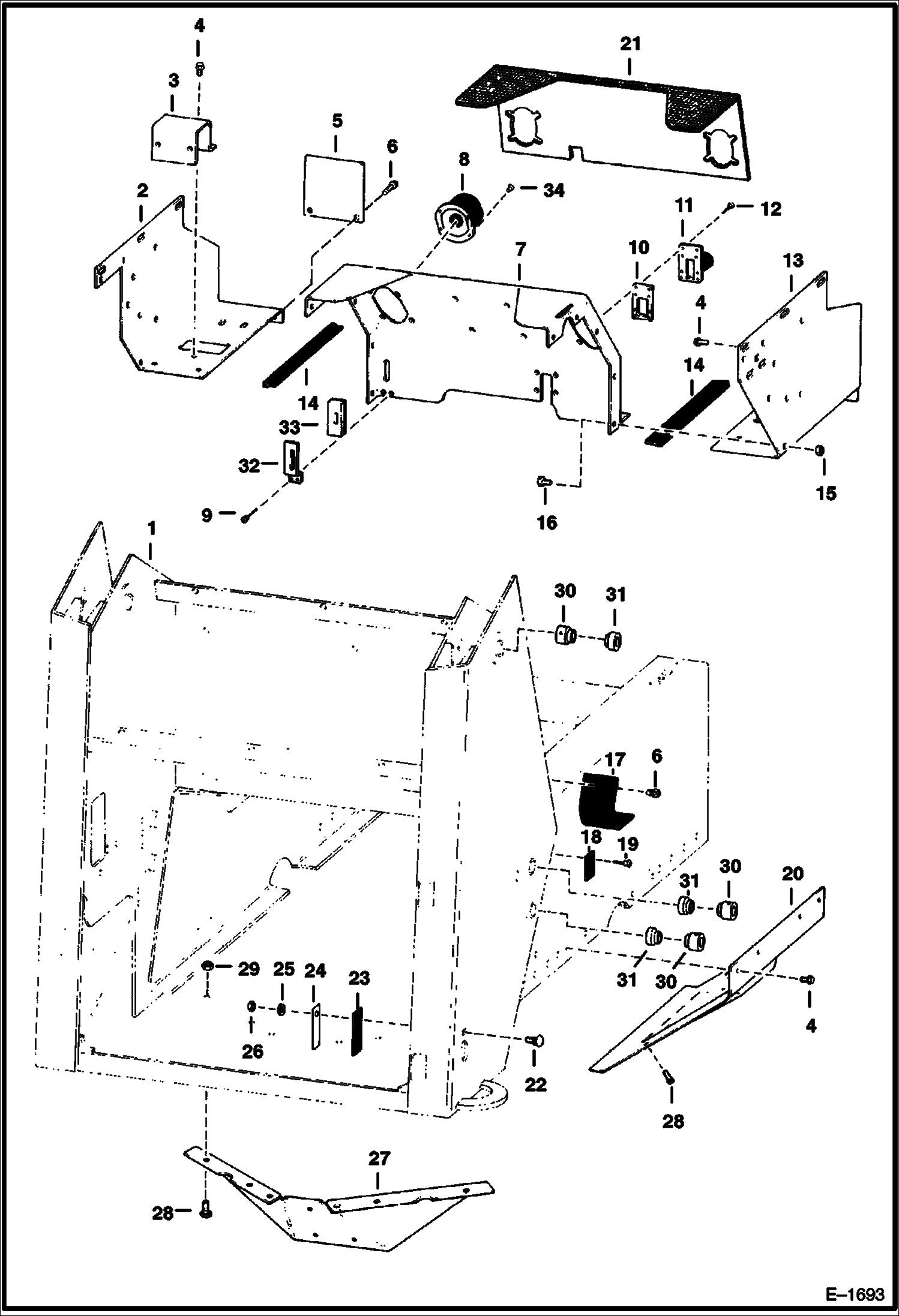

Схема запчастей Bobcat Feller Buncher - MAIN FRAME & ATTACHING PARTS MAIN FRAME

Артикул

Название

Примечание

Количество

1

6568674

MAIN FRAME

2

6568599

SHIELD

3

6568601

STEP

4

84G3712

BOLT 5

5

6568620

COVER

6

84G3716

SCREW 5

7

6568600

SHIELD

8

6532127

BOOT rubber - Was 6563540 - A

9

6598092

RIVET Was 6512797 - A

10

6565014

RETAINER Not use with 6571648 Boot

11

BOOT NLA - Was 6565013 - A

11

BOOT NLA - W/Metal Insert - Was 6571648 - A

12

6630207

RIVET 5 Was 6513493 - A

13

6568598

SHIELD

14

6513152

SEAL bulk - sold per foot

15

83D6

NUT 5

16

35C616

BOLT 5

17

6565139

COVER rubber

18

6565137

COVER rubber

19

6598681

RIVET Was 6591035 - B

20

6568347

SHIELD hydro. motor

21

6568321

INSULATION

22

7C620

BOLT

23

6565141

COVER rubber

24

6567664

COVER

25

25E17

WASHER 5

26

85D6

NUT, 5

27

6568669

SHIELD

28

35C820

BOLT

29

57D8

NUT 10

30

6555987

BUSHING weld on

31

6555989

BUSHING Weld-On

32

6567738

RETAINER

33

6577926

SEAL Was 6567741 - A

34

6661209

RIVET Was 6632113 - A

Выбрано товаров: 35
