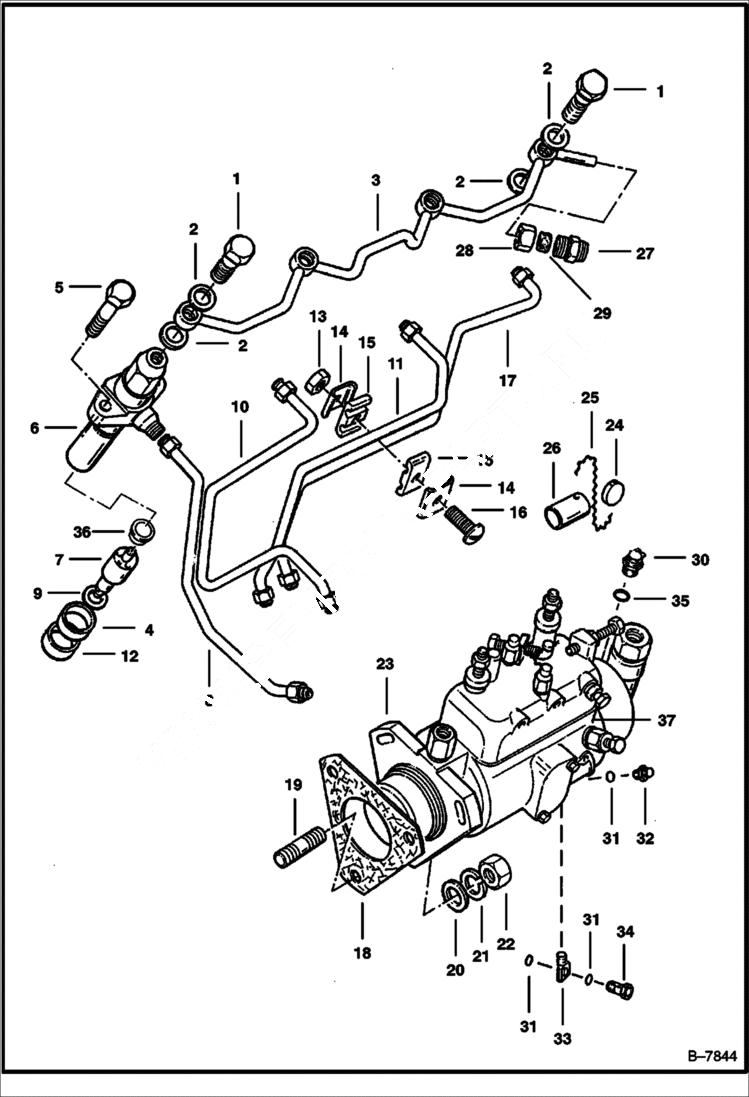

Запчасти Bobcat Articulated Loaders FUEL INJECTION SYSTEM POWER UNIT

1

3490094

BOLT inlet union

2

3490095

WASHER 5

3

6630832

PIPE

4

909605

SPACER

5

18C522

SCREW

6

6634224

INJECTOR fuel - W/Ref. 7

7

6634225

NOZZLE fuel

8

3725673

PIPE, #1 No. 1 Cylinder

9

3725682

WASHER

10

3725674

PIPE, #2 No. 2 Cylinder

11

3725675

PIPE, #3 No. 3 Cylinder

12

6631512

SEAL

13

1781096

NUT

14

3725678

PLATE damper retainer

15

3725677

DAMPERS

16

86G1016

SCREW

17

6672537

PIPE No. 4 Cylinder - Was 3725676B - A

18

6668020

GASKET Was 3490326B - A

19

6688719

STUD Was 6634205 - A

20

3725700

WASHER

21

4E5

WASHER

22

62D5

NUT

23

6648346

PUMP fuel injection

24

3490324

SEAL sleeve

25

3490325

WIRE seal

26

3490323

SLEEVE throttle lever adjusting screw

27

5205733

UNION

28

3490133

UNION NUT

29

3490132

SEAL

30

909477

VALVEFUEL Electric Fuel Shut-off

31

3739007

WASHER

32

3739167

CONNECTOR

33

3739017

BANJO

34

3748597

SCREW banjo

35

6659818

O-RING

36

BUSHING NSS - Order 6662045 - injector

37

6668117

GASKET cover
