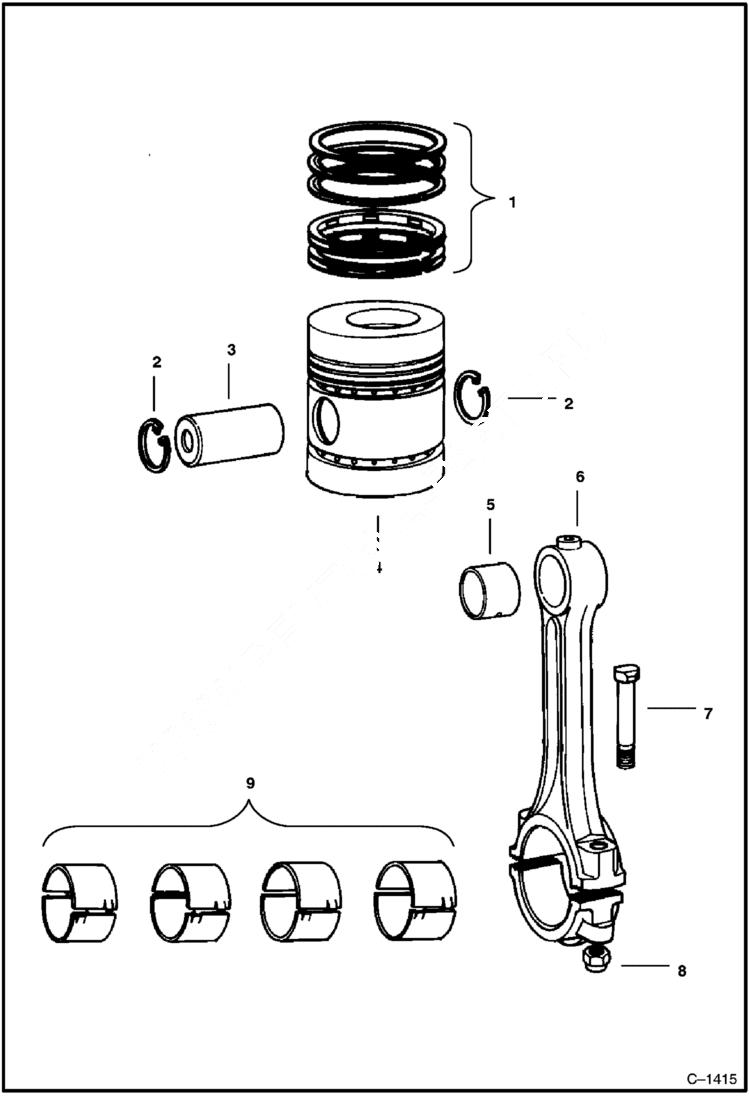

Запчасти Bobcat Articulated Loaders CONNECTING ROD & PISTON POWER UNIT

1

6662032

KIT ring - Std. - For One Piston - Was 3725418B - A

1

KIT NLA - ring - .030 Oversize - For One Piston - Was 6662049 - A

2

RING NLA - Was 3725414 - A

3

PIN NSS - piston

4

998953

PISTON Std. - One Piston

4

PISTON NLA - 0.030 - Was 998954B

5

3725407

BSHG

6

6515701

ROD connecting - W/Ref. 5, 7 & 8

7

6515679

SCREW

8

6599646

NUT

9

3679199

BRGS rod bearing Std. - Complete Engine set

9

BRGS NLA - rod bearing - .010 undersize - complete engine set - Was 3739216 - A

9

6515698

KIT rod bearing - .020 Undersize

9

6515699

KIT rod bearing - .75mm (.030) Undersize
