Запчасти Bobcat Articulated Loaders FRAME ELECTRICAL ELECTRICAL SYSTEM

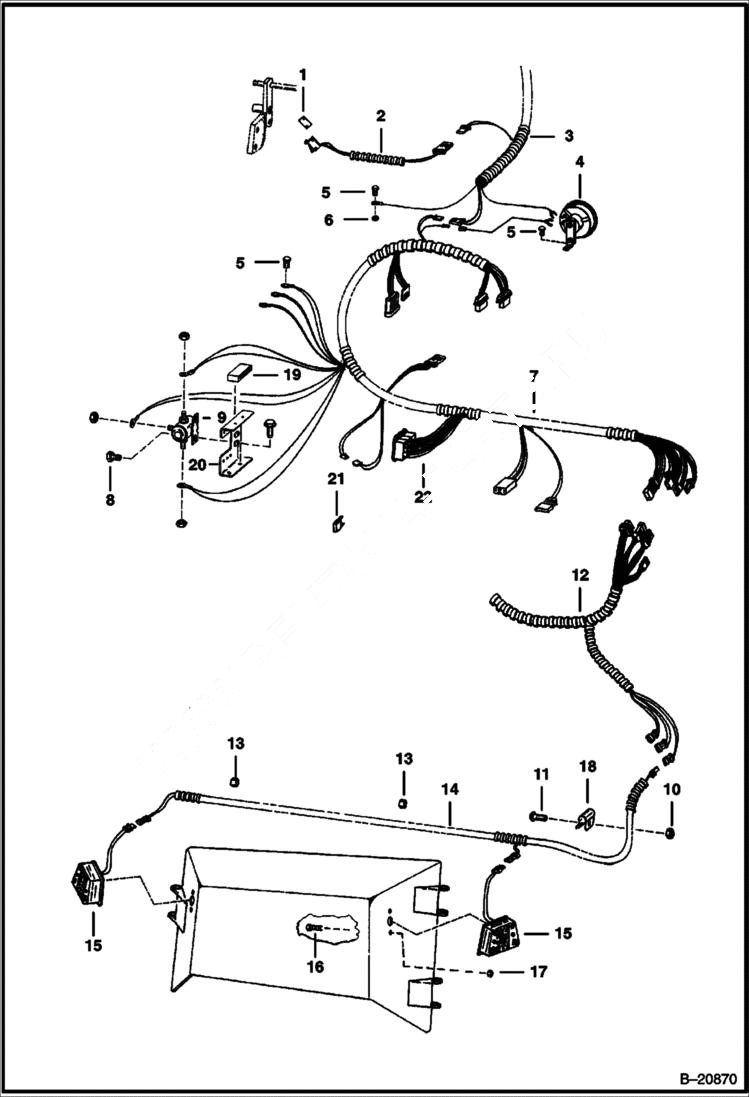

Схема запчастей Bobcat Articulated Loaders - FRAME ELECTRICAL ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6586117

PLATE

2

6531159

HARNESS Includes 6631898 Switch - Also Order 6631749 Hardware Kit

2

6631898

SWITCH Also Order 6631749 Hardware Kit

2

6631749

HARDWARE KIT Includes screws, washers, nuts and leaf switch

3

6585595

HARNESS 2-Speed Switch

4

6665558

HORN Was 6630931 - A

5

84G3712

BOLT 5

6

85D6

NUT, 5

7

6534532

HARNESS frame

8

17C410

BOLT 10

9

6632186

SOLENOID magnetic

10

61D5

NUT

11

35C510

BOLT

12

6534533

HARNESS instrument panel

13

6640704

CLAMP

14

6585599

HARNESS tail light

15

6646837

TAIL LIGHT

15

6651668

LENS tail light

15

6513468

BULB Was 6655433 - A

15

6655434

SOCKET

16

45G1012

SCREW Was 49G-1012 - D

17

12D10

NUT

18

30H30

CLAMP

19

HOLDER NLA - Was 6649124 - A

20

6586242

BRACKET

21

6654803

FUSE 5A

21

6654804

FUSE 7.5 Amp.

21

6654805

FUSE 10A Was 6961388 - A

21

6654806

FUSE, 15A

21

6625575

FUSE, 20A

21

6702444

FUSE 25A 5 Was 6654807 - A

21

6718034

FUSE, 30A Was 6625597 - A

22

FUSE BLOCK NSS - Order Ref. 7

Выбрано товаров: 33
