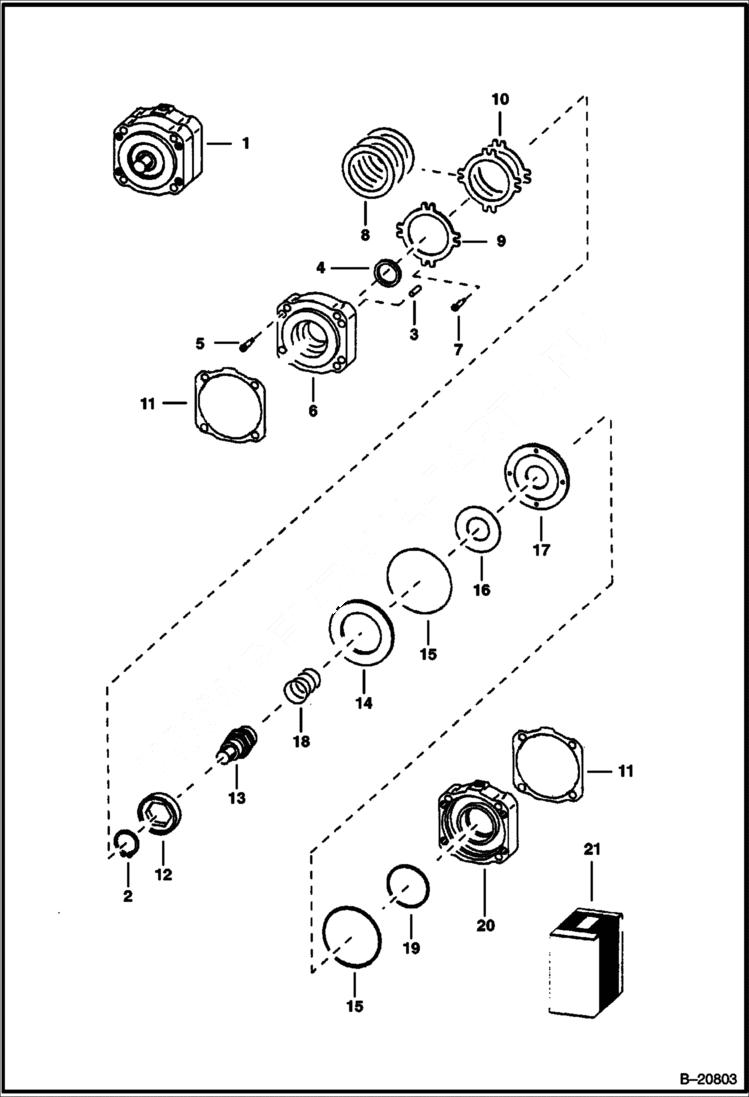

Запчасти Bobcat Articulated Loaders BRAKE (Mico 13-545-416) HYDROSTATIC SYSTEM

1

6661193

BRAKE ASSY. W/Ref. 2 - 20

2

6661364

SNAP RING

3

DOWEL PIN NLA - Was6646677 - A

4

SEAL NSS - See Ref. 21

5

6632029

BOLT Was 6650139 - A

6

6661365

HOUSING

7

6650141

SCREW

8

6646663

ROTOR

9

6646660

PRIMARY

10

6646661

STATOR

11

6662341

GASKET

12

SPLINE NLA - Was 6650147 - A

13

6661366

SHAFT

14

PLATE NLA - Was 6661367 - A

15

O-RING NSS

16

6632012

WASHER Belleville - Was 6650142 - A

17

PISTON NLA - Was 6661368 - A

18

SPRING NSS - See Ref. 21

19

O-RING NSS - See Ref. 21

20

6661369

PLATE pressure

21

6661361

SEAL KIT Ref. 4, 15, 19 & 11

21

6650152

KIT disc - Ref. 8, 9, 10, 15 & 11

21

6658514

KIT spring - Ref. 15, 1 of 16, 1 of 18 & 11
