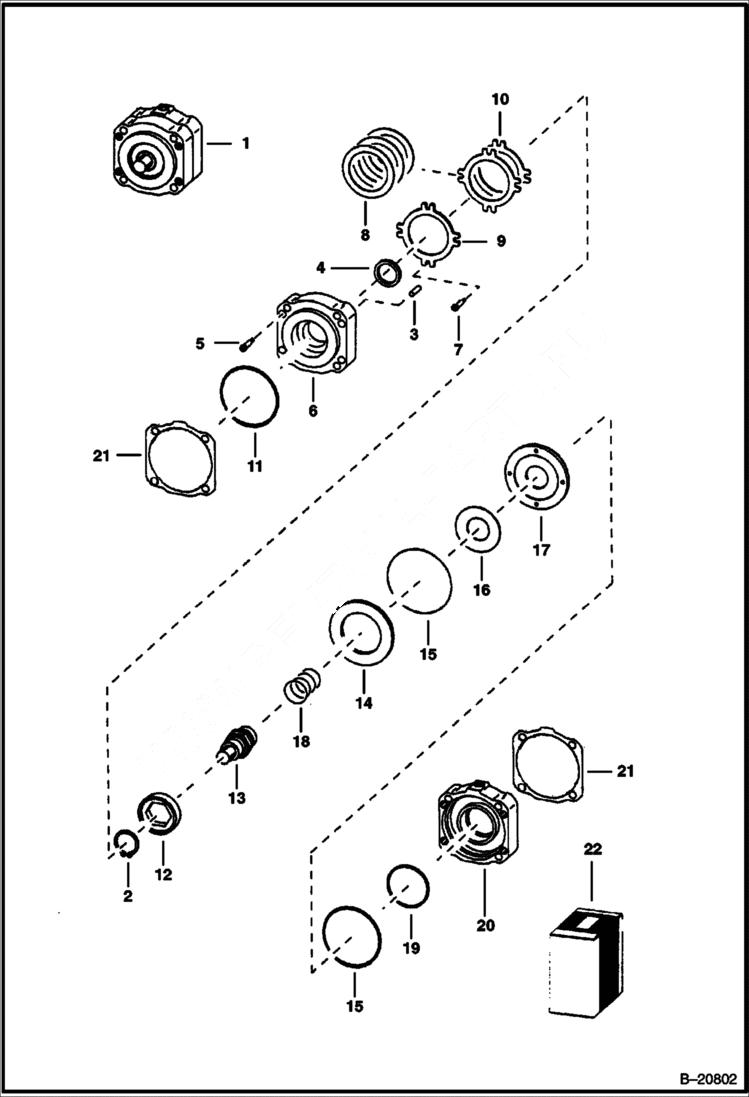

Запчасти Bobcat Articulated Loaders BRAKE (Mico 13-545-242) HYDROSTATIC SYSTEM

1

BRAKE ASSY NLA - Order 6661193 - Was 6649403 - A

2

6650150

SNAP RING

3

DOWEL PIN NLA - Was6646677 - A

4

SEAL NSS - See Ref. 22

5

6632029

BOLT Was 6650139 - A

6

6650145

HOUSING

7

6650141

SCREW

8

6646663

ROTOR

9

6646660

PRIMARY

10

6646661

STATOR

11

6662339

O-RING

12

SPLINE NLA - Was 6650147 - A

13

SHAFT NLA - Was 6650140 - A

14

PLATE NLA - Was 6650149 - A

15

O-RING NSS

16

6632012

WASHER Belleville - Was 6650142 - A

17

PISTON NLA - See Ref. 1 - Was 6650148 - A

18

SPRING NSS - See Ref. 22

19

O-RING NSS - See Ref. 22

20

6650143

PLATE pressure

21

6662341

GASKET

22

6661060

SEAL KIT Ref. 4, 15, 19 & 21 - Was 6650151 - A

22

6650152

KIT disc - Ref. 8, 9, 10, 15 & 21

22

6658514

KIT spring - Ref. 15, 1 of 16, 1 of 18 & 21
