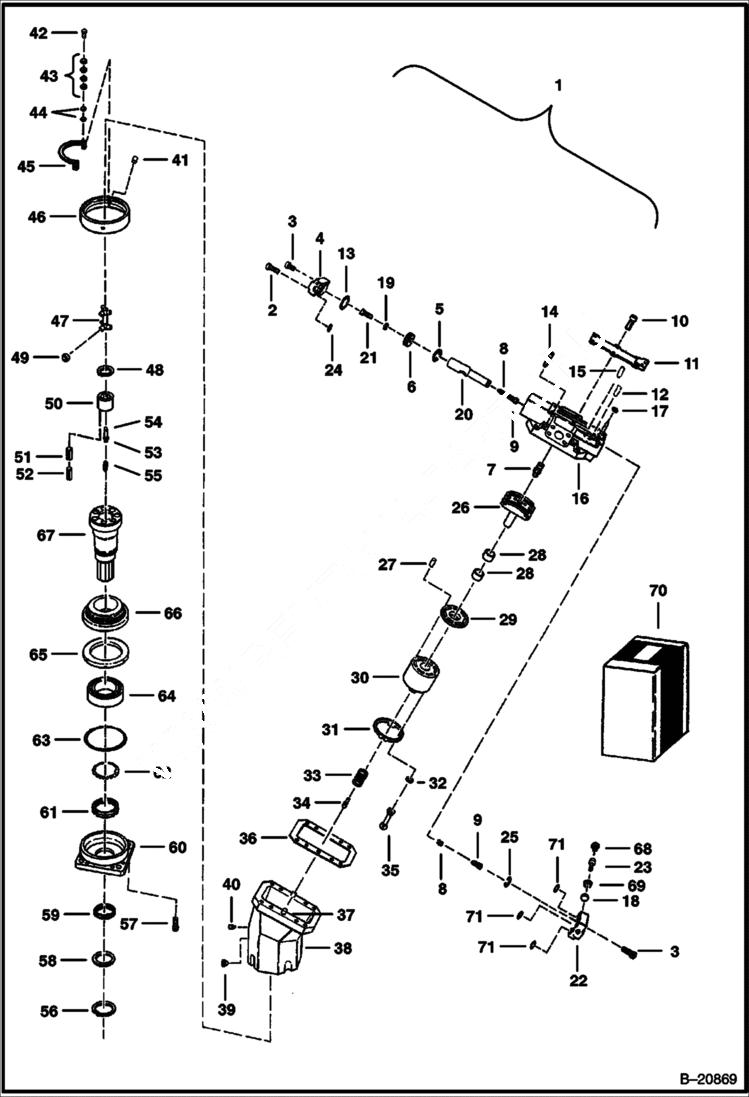

Запчасти Bobcat Articulated Loaders HYDROSTATIC MOTOR (Sundstrand) HYDROSTATIC SYSTEM

1

MOTOR See BTI299 NLA - Ref. 2-69 - order 6667731 - Was 6640799 - A

1

MOTOR See BTI299 NLA - Remanufactured - Order 6667731 - Was 6654044 - A

2

6646921

SCREW

3

SCREW NLA - Was 6645095 - A

4

6646920

COVER ASSY.

5

O-RING NSS - Order Ref. 6

6

SEAL ASSY. NSS - V3705752 - W/Ref. 5

7

ARM NLA - Was 6645052 - A

8

6645053

SET SCREW

9

SCREW NLA - Was 6646925 - A

10

SCREW NLA - Was 6646918 - A

11

6646917

CONTROL

12

6646919

RETAINER

13

O-RING NSS - V960177

14

SCREW NLA - Was 6645057 - A

15

6646927

PLUG

16

6645048

END CAP

17

O-RING NSS - V960161

18

BALL NSS - Order Ref. 22

19

6646926

SHIM 10.0 mm

19

6647470

SHIM 1.0 mm

19

6647471

SHIM 0.5 mm

20

PISTON NLA - Was 6645050 - A

21

SCREW NLA - Was 6646925 - A

22

6651639

COVER W/Ref. 18, 22, 68 & 69

23

SCREW NSS - Order Ref. 22

24

O-RING NSS - V960206

25

O-RING NSS - V960173

26

6645062

VALVE Was 6658222 - D

27

PIN NLA - Was 6645054 - A

28

6645030

BEARING

29

6646922

BEARING sliding

30

6645059

BLOCK

31

6645034

RING bearing

32

6645047

RING piston

33

6645061

SPRING

34

PIN NLA - support - Was 6645058 - A

35

PISTON ASSY. NLA - Was 6645046 - A

36

GASKET NLA - Was 6645064 - A

37

6647468

PIN straight

38

6646923

HOUSING

39

47K8

PLUG

40

6646924

SET SCREW

41

6645038

PIN straight

42

PIN NLA - support - Was 6645035 - A

43

6645037

WASHER

44

6645040

SHIM .1 mm

44

6645041

SHIM .2 mm

44

6645042

SHIM .3 mm

44

6645043

SHIM .5 mm

44

SHIM NLA - 1.0 mm - Was 6645044 - A

45

6645032

BRIDGE support

46

SPACER NLA - Was 6645033 - A

47

6645060

SHAFT

48

6653318

SNAP RING

49

ROLLER NLA - Was 6645056 - A

50

6653315

COUPLING

51

6653316

PIN spring

52

6653317

PIN support

53

6653335

WASHER

54

6653319

PIN

55

6653320

SPRING

56

6653327

SNAP RING

57

SCREW NLA - Was 6645093 - A

58

6653326

WASHER

59

SEAL NSS - V118855

60

6645045

FLANGE

61

6653325

NUT

62

6653324

WASHER

63

O-RING NSS - V960240

64

6653323

BEARING ASSY.

65

6653322

SPACER

66

O-RING NLA - Was 6658824 - A

67

6647469

SHAFT

68

PLUG NSS - W/Ref. 22

69

O-RING NLA - Was 6645049 - A

70

6645065

SEAL KIT W/Ref. 5, 6, 13, 17, 24, 25, 36, 59 & 63

71

O-RING NSS - V960163
