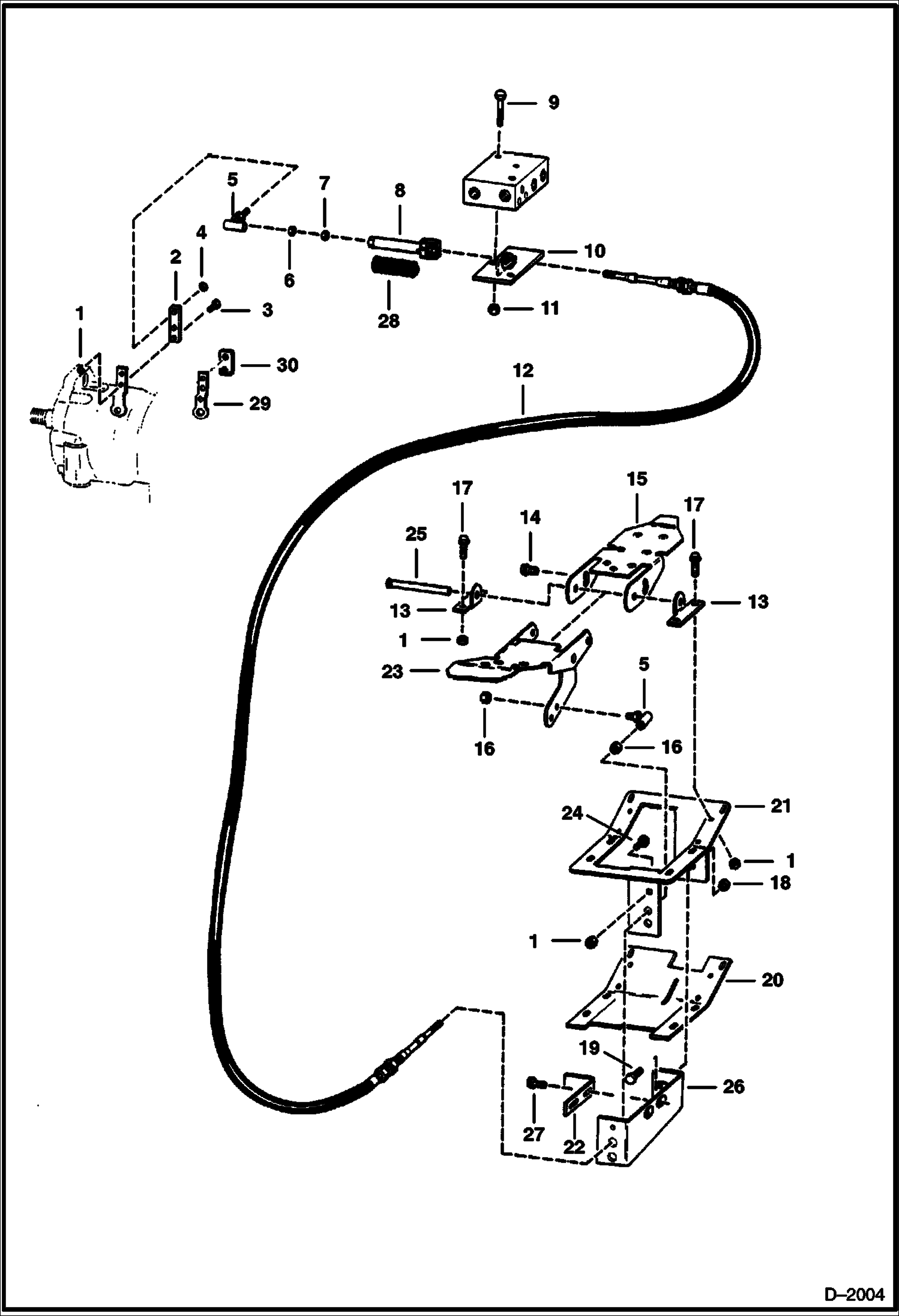

Запчасти Bobcat Articulated Loaders HYDROSTATIC DRIVE CONTROLS HYDROSTATIC SYSTEM

1

85D5

NUT 5

2

6585996

LEVER

3

17C520

BOLT 5

4

86D4

NUT

5

6631036

JOINT

6

14D10

NUT

7

8D4

NUT

8

6646566

SPRING centering - W/Ref. 28

9

17C544

BOLT

10

6585995

BRACKET

11

61D5

NUT

12

6646568

CABLE

13

6535234

MOUNT

14

84G3710

SCREW

15

6535236

PEDAL Front

16

62D4

NUT

17

35C520

BOLT

18

7D6

NUT

19

17C624

BOLT 5

20

6535235

BOOT

21

6535228

FLANGE

22

6535749

STOP

23

6535231

PEDAL Rear

24

7C512

SCREW

25

6585458

PIN Was 6584792 - A

26

6535229

BRACE

27

35C512

BOLT

28

SPRING NLA - Order Ref. 8

29

6532241

CAM

30

6532242

SHIM
