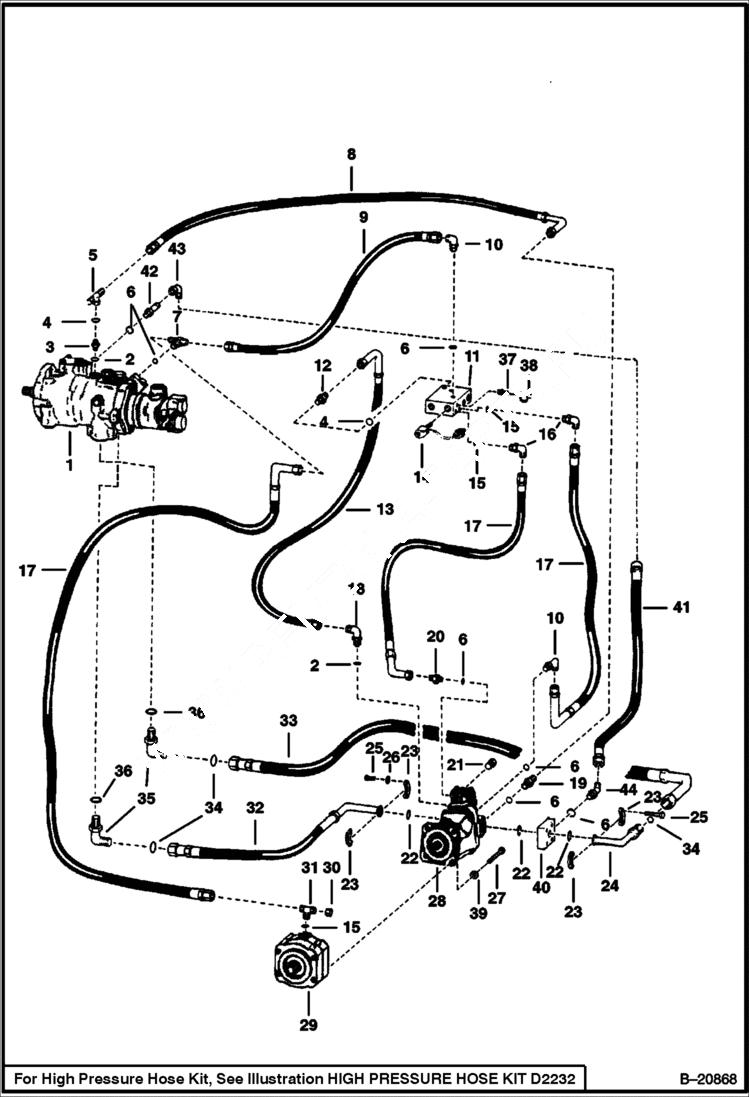

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY S/N 12164 & Below HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ B20801

2

79K12

O RING 10

3

15KB1216

FITTING, HYD CONNECTOR Was 755055B - B

4

79K10

O RING 10

5

14K7

TEE

6

79K6

O RING 10

7

19K5

FITTING

8

6586218

HOSE

9

6586048

HOSE

10

17K5

ELBOW

11

BLOCK NLA - Was 6585994 - A

12

15K7

FITTING

13

6586217

HOSE

14

6652532

VALVE solenoid

14

6652529

COIL For 6652532 Valve

15

79K4

O RING 10

16

17K3

ELBOW

17

6530695

HOSE Was 6583839 - A

18

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

19

755056

CONNECTR

20

15K5

FITTING

21

47K5

PLUG

22

58K219

O RING 10

23

20J16

FLANGE

24

TUBE NLA - See Note - Was 6584658 - A

25

BOLT NLA - Was 17C000744B - A

26

4E7

WASHER

27

3GM12110

SCREW 12mm metric threads

27

73G872

BOLT 1/2'' SAE threads

28

6640799

MOTOR See Illustration HYDROSTATIC MOTOR/ B20869

29

BRAKE See Illustration BRAKE/ B20803 See Illustration BRAKE/ B20802

30

36K3

CAP

31

19K3

FITTING

32

HOSE NLA - See Note - Was 6531260 - A

33

HOSE NLA - See Note - Was 6531259 - A

34

58K21

O RING 10

35

42E1616

ELBOW W/Ref. 34 & 36 - Was 55E000016B - A

36

75K16

O RING 10 Was 79K000016B - A

37

6630168

COUPLER diagnostic

38

6630367

CAP

39

15EM120

WASHER

39

6557929

WASHER

40

6533216

BLOCK

41

6652065

HOSE

42

16K5

FITTING

43

11K5

FITTING

44

18K5

ELBOW
