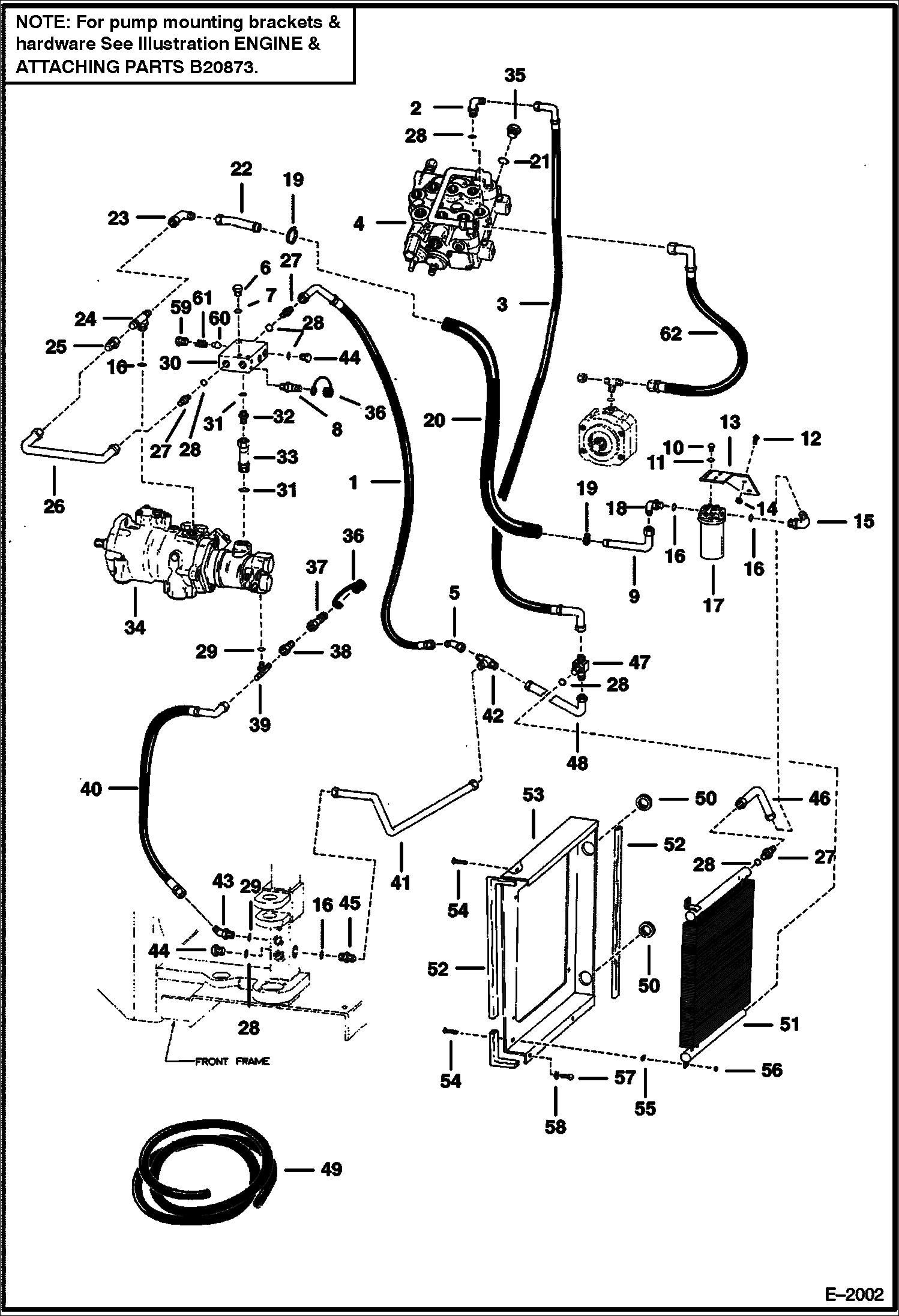

Запчасти Bobcat Articulated Loaders HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6535275

HOSE

2

17K8

FITTING

3

6535274

HOSE

4

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1038

5

12K8

ELBOW

6

47K3

PLUG

7

79K4

O RING 10

8

6630168

COUPLER

9

6535278

TUBE

10

35C610

BOLT 5

11

25E18

WASHER

12

6586073

BOLT

13

6585997

BRACKET

14

61D6

NUT 5

15

731016

ELBOW

16

79K16

O RING 10

17

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818 HYDROSTATIC

18

17K10

FITTING

19

HOSE CLAMP

20

HOSE NLA - 15'' long - Order Ref. 49

21

79K4

O RING 10

22

6586018

TUBE

23

11K10

UNION

24

19K10

TEE

25

2549298

ADAPTER

26

6538142

TUBE Was 6586017 - A

27

15K8

FITTING

28

79K12

O RING 10

29

79K10

O RING 10

30

BLOCK NLA - Was 6585994 - A

31

79K20

O RING 10

32

15K11

FTG

33

6586021

TUBE

34

PUMP See Illustration HYDROSTATIC PUMP/ B20801

35

24K3

PLUG

36

6630367

CAP

37

6646635

COUPLER diagnostic

38

784244

ADAPTOR

39

19K7

TEE

40

6586027

HOSE

41

6583740

TUBE

42

10K8

TEE

43

18K7

FITTING

44

24K8

PLUG

45

15KB1216

FITTING, HYD CONNECTOR Was 712555B - A

46

6586003

TUBE

47

19K8

TEE

48

6583806

TUBE

49

6673824

HOSE BULK/FOOT bulk - Sold Per Foot - Was 1310810 - A

50

6511983

GROMMET

51

6641334

OIL COOLER

52

6513152

SEAL bulk - sold per foot

53

6539715

HOUSING Was 6585823 - A

54

10C512

BOLT Was 6553808 - A

55

774220

NUT

56

57D5

NUT

57

17C616

BOLT 5

58

25E17

WASHER 5

59

24K7

PLUG

60

6515078

POPPET

61

6512946

SPRING

62

6585443

HOSE
