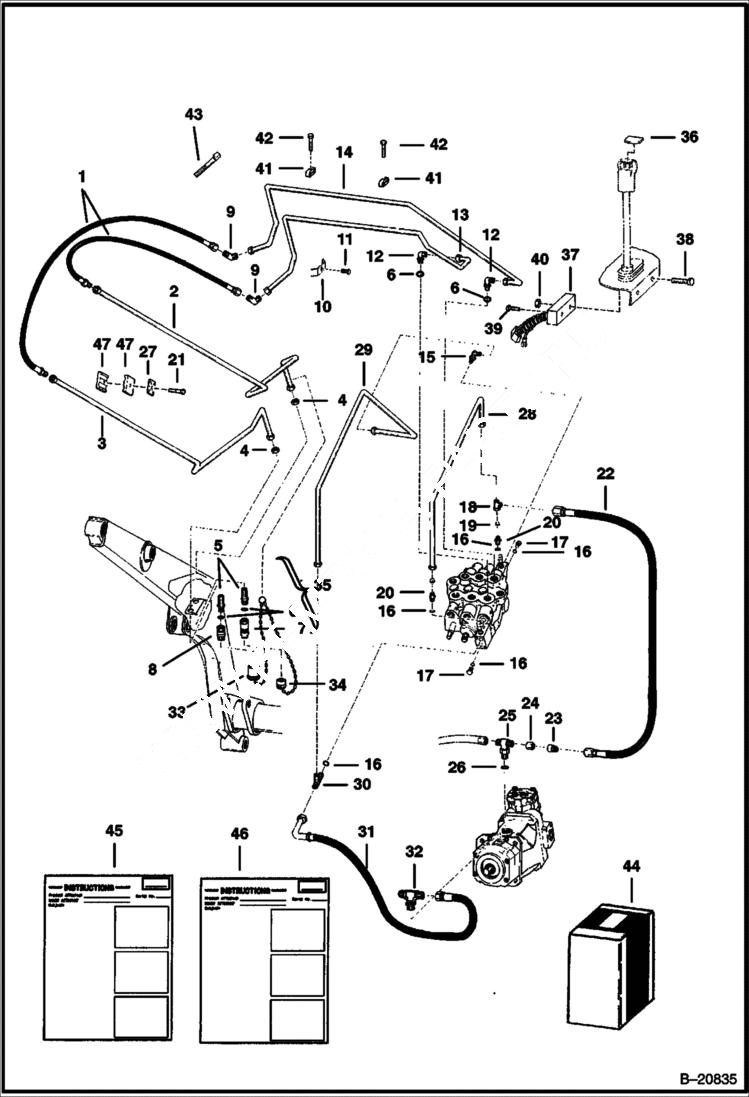

Запчасти Bobcat Articulated Loaders AUXILIARY HYDRAULICS (Front) HYDRAULIC SYSTEM

1

6531170

HOSE

1

6587779

HOSE Was 6538135 - A

2

6531166

TUBE Was 6531167 - D

2

6537749

TUBE

3

6531167

TUBE Was 6531166 - D

3

6537751

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR bulkhead

6

79K10

O RING 10

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

8

6598757

COUPLER, POPPET MALE straight

9

77F7

ELBOW

10

6502426

CLAMP

11

84G3724

BOLT

12

17K7

ELBOW

13

6532740

TUBE

14

6532741

TUBE

15

17K3

ELBOW

16

79K4

O RING 10

17

24K3

PLUG

18

13K3

TEE

19

6531153

RESTRICTOR

20

15K3

CONNECTOR

21

17C520

BOLT 5

22

2500689

HOSE

23

9K4

ADAPTER

24

80F7

NUT hyd. - 3 Piece

25

6561477

TEE

26

79K12

O RING 10

27

6652521

PLATE

28

6531098

TUBE

29

6531097

TUBE

30

21K3

CONNECTOR

31

6569171

HOSE

32

19K3

FITTING

33

6515168

CAP

34

6515167

PLUG

35

6513709

CAP PLUG W/Plug Assy. - Rubber

36

6577506

PLATE

37

6531846

RELAY BOX

38

7C528

BOLT

39

84G3124

SCREW self-tapping - Was 84G003128B - A

40

85D5

NUT 5

41

6701893

CLAMP Was 6651238 - A

42

17C436

BOLT

43

6624289

STRAP, TIE

44

KIT NLA - Ref.36-40&46 - Was 6533078 - A

45

6570619

INSTRUCTIONS Front Auxiliary Hyd.

46

6720000

INSTRUCTIONS Kit Front Detent

47

6701893

CLAMP
