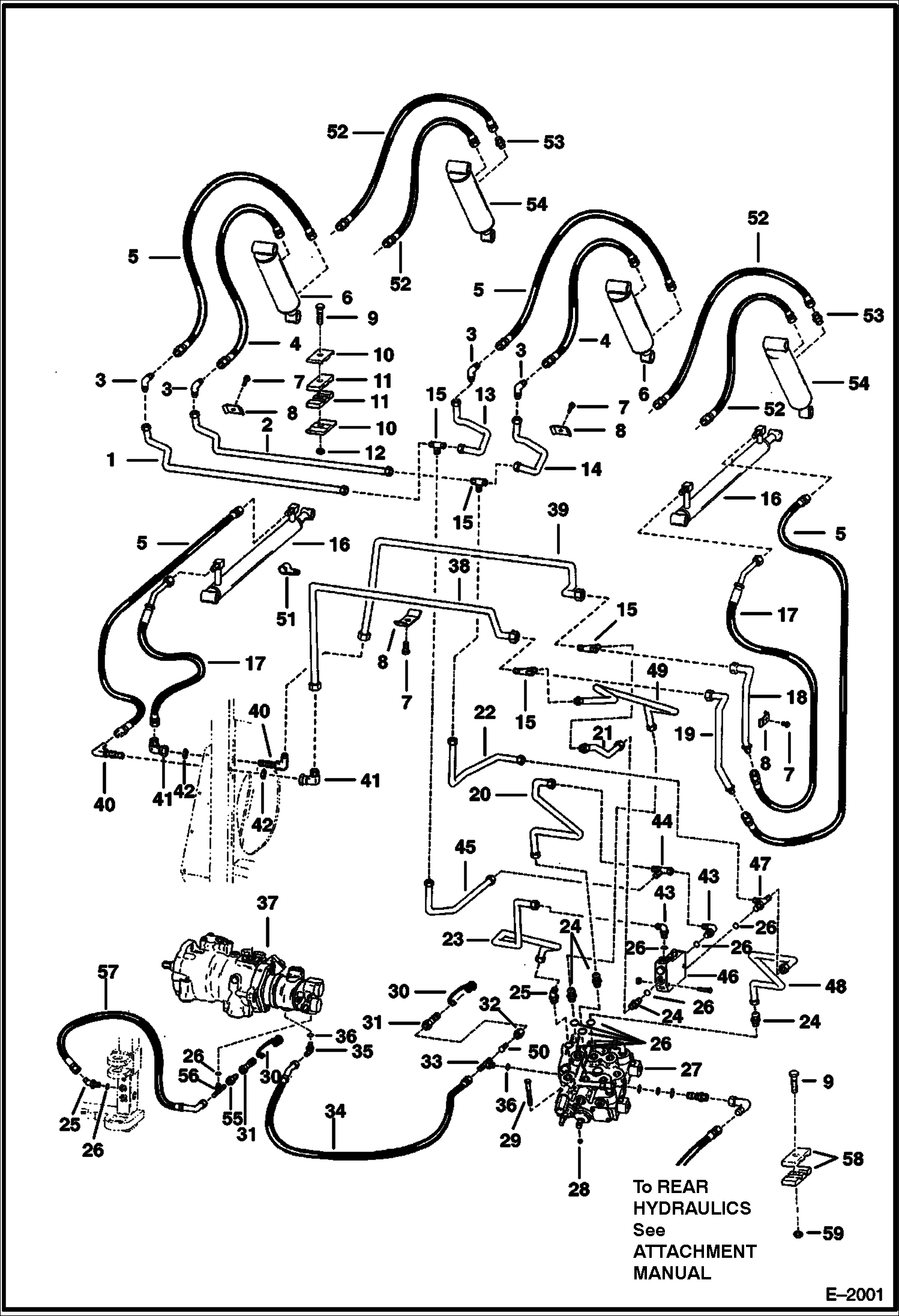

Запчасти Bobcat Articulated Loaders HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6586012

TUBE

2

6586011

TUBE

3

77F6

ELBOW

4

6531884

HOSE

5

6538241

HOSE Was 6584655 - A

6

CYLINDER See Illustration TILT CYLINDER/ B13490 See Illustration TILT CYLINDER/ B11772 TILT

7

84G3724

BOLT

8

6502426

CLAMP

9

17C424

BOLT

10

6652521

PLATE Was 6647638 - A

11

6647637

CLAMP

12

61D4

NUT 5

13

6586013

TUBE

14

6586014

TUBE

15

6560136

TEE

16

CYLINDER See Illustration LIFT CYLINDER/ B11768 LIFT

17

6538242

HOSE Was 6586028 - A

18

6586016

TUBE

19

6586015

TUBE

20

6534646

TUBE

21

6534640

TUBE

22

6534644

TUBE

23

6534642

TUBE

24

15K7

FITTING

25

18K7

FITTING

26

79K10

O RING 10

27

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1038

28

61D5

NUT

29

17C560

BOLT

30

6630367

CAP

31

6646635

COUPLER diagnostic

32

80F8

ADAPTER

33

19K8

TEE

34

6535277

HOSE

35

17K8

FITTING

36

79K12

O RING 10

37

PUMP See Illustration HYDROSTATIC PUMP/ B20801

38

6586005

TUBE

39

6586006

TUBE

40

88F6

ELBOW

41

11K6

UNION

42

86F6

NUT

43

17K7

ELBOW

44

13K7

FITTING

45

6534643

TUBE

46

6656275

VALVE See Illustration BUCKET POSITION VALVE/ B13675 BUCKET POSITION - WAS 6654366 - A

47

21K7

TEE

48

6534645

TUBE

49

6534641

TUBE

50

9K8

ADAPTER

51

6536952

CLAMP

52

6538329

HOSE For Cylinder with Tubeline

53

87F6

FITTING For Cylinder with Tubeline

54

CYLINDER See Illustration TILT CYLINDER/ B13490 See Illustration TILT CYLINDER/ B11772 Tilt - W/Tubeline

55

784244

ADAPTOR

56

19K7

TEE

57

6586027

HOSE

58

6662739

CLAMP

59

85D4

NUT 5
