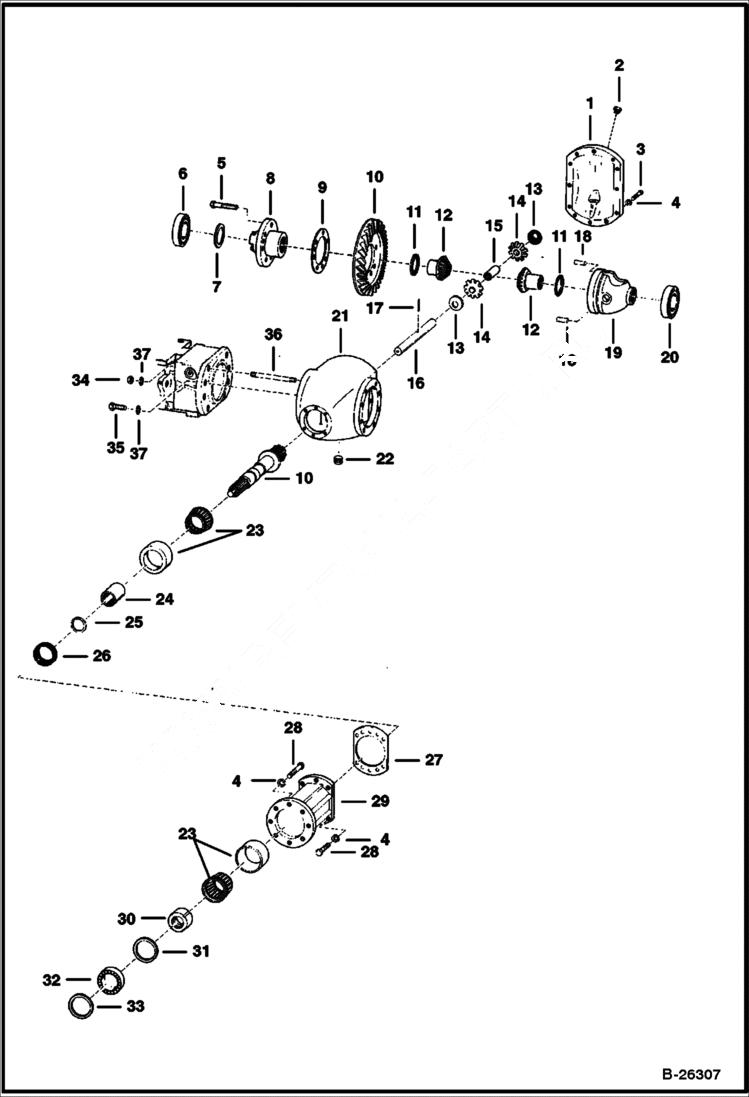

Запчасти Bobcat Articulated Loaders FRONT DIFFERENTIAL DRIVE TRAIN

1

6532800

COVER

2

6646302

PLUG fill - Metric Threads

2

16F8

PLUG fill - SAE Threads - Was 11F000008B - A

3

4CM1028

BOLT

4

6EM100

WASHER

5

1CM1240

BOLT

6

6646236

BEARING

7

6646257

SHIM .008'' (0,20) Thick

7

6646258

SHIM .012'' (0,30) Thick

7

6646259

SHIM .020'' (0,50) Thick

7

6646256

SHIM .006'' (0,15) Thick

8

6646316

FLANGE

9

6646312

SHIM

10

6646353

GEAR SET Includes Pinion Gear & Ring Gear

11

6646310

WASHER

12

6646309

SIDE GEAR

13

6646313

WASHER

14

6646306

PINION GEAR

15

6646307

SPACER

16

6646308

SHAFT

17

6646270

DOWEL PIN

18

20JM1240

DOWEL PIN

19

6646305

CASE

20

6646237

BEARING

21

6532669

CASE

22

6646304

PLUG

23

6646243

BEARING

24

6646360

SPACER 1.654'' (42.02) Long

24

6646361

SPACER 1.655'' (42.04) Long

24

6646362

SPACER 1.656'' (42.06) Long

24

6646367

SPACER 1.657'' (42.08) Long

25

6646252

SHIM .014'' (0,35) Thick

25

6646253

SHIM .016'' (0,40) Thick

25

6646254

SHIM .018'' (0,45) Thick

25

6646255

SHIM .022'' (0,55) Thick

26

6646221

SEAL

27

6646355

SHIM .006'' (0,15) Thick

27

6646356

SHIM .008'' (0,20) Thick

27

6646357

SHIM .020'' (0,50) Thick

28

1CM1035

BOLT

29

6646368

FLANGE

30

6646369

NUT

31

7JM90

SNAPRING

32

6646235

BEARING

33

6646262

SHIM

34

1DM14

NUT

35

1CM1440

BOLT Was 4CM1440 - A

35

1CM1445

BOLT

36

6646303

STUD

37

6EM140

WASHER
