Запчасти Bobcat Articulated Loaders BRAKE LINKAGE DRIVE TRAIN

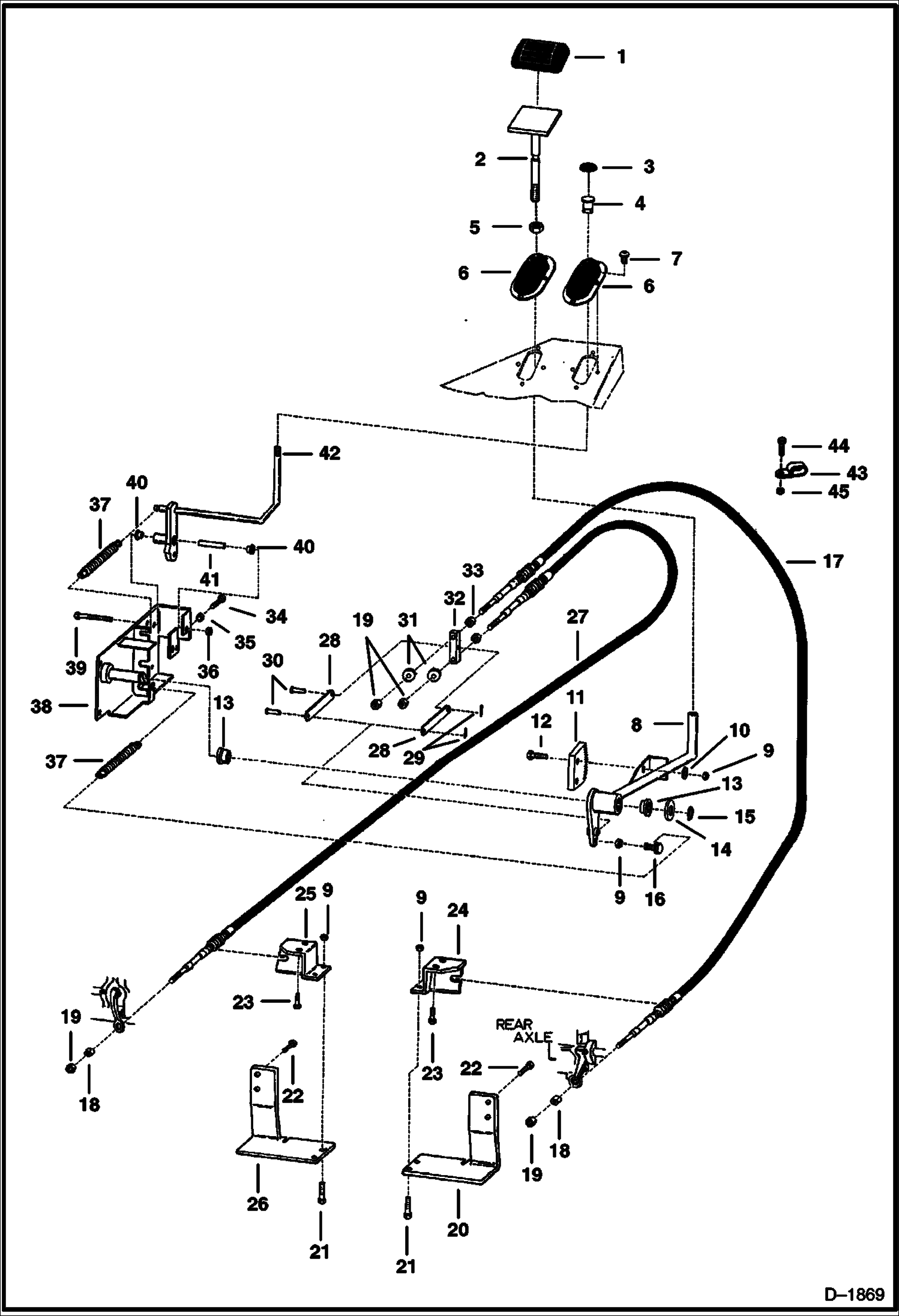

Схема запчастей Bobcat Articulated Loaders - BRAKE LINKAGE DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

PAD NLA - Was 1618250B - A

2

6583767

PEDAL

3

6647642

CAP

4

6583780

KNOB

5

61D12

NUT

6

BOOT NLA - Was 6584699 - A

7

25G510

BOLT

8

6583762

LEVER

9

83D6

NUT 5 Was 61D000006B - B

10

25E18

WASHER

11

6583835

GEAR

12

17C624

BOLT 5

13

6647645

BUSHING

14

25E31

WASHER

15

710776

SNAP RING

16

84G3728

BOLT

17

6651525

CABLE 69.0'' (1752,61 mm) long

17

6660447

CABLE 75.5''(1917.7mm) long

18

6584684

END cable

19

8D5

NUT

20

6531089

ANGLE R.H. - Use W/Ref. 24 & Ref. 17 (6651525 cable)

21

17C616

BOLT 5 Use W/Ref. 24

22

1CM1030

BOLT Use W/Ref. 20

23

7CM1430

BOLT Use W/Ref. 24

24

6583826

BRACKET R.H. - Use W/Ref. 17 (6651525 cable)

25

6583827

BRACKET L.H. - Use W/Ref. 27 (6648289 cable)

26

6531090

ANGLE L.H. - Use W/Ref. 25 & Ref. 27 (6648289 cable)

27

6648289

CABLE 54.5''(1384.3mm) long

27

6660447

CABLE 75.5''(1917.7mm) long

28

6531092

LINK

29

1F312

PIN

30

663350

PIN

31

6531093

END cable

32

6583834

BAR

33

86D5

NUT

34

84G3716

SCREW 5

35

7D6

NUT

36

61D5

NUT

37

6583782

SPRING

38

6583754

PLATE

39

17C556

BOLT

40

6647646

BUSHING

41

6583728

TUBE

42

6583759

LEVER brake release

43

31H38

CLAMP

44

17C620

BOLT

45

61D6

NUT 5 NUT

Выбрано товаров: 47
