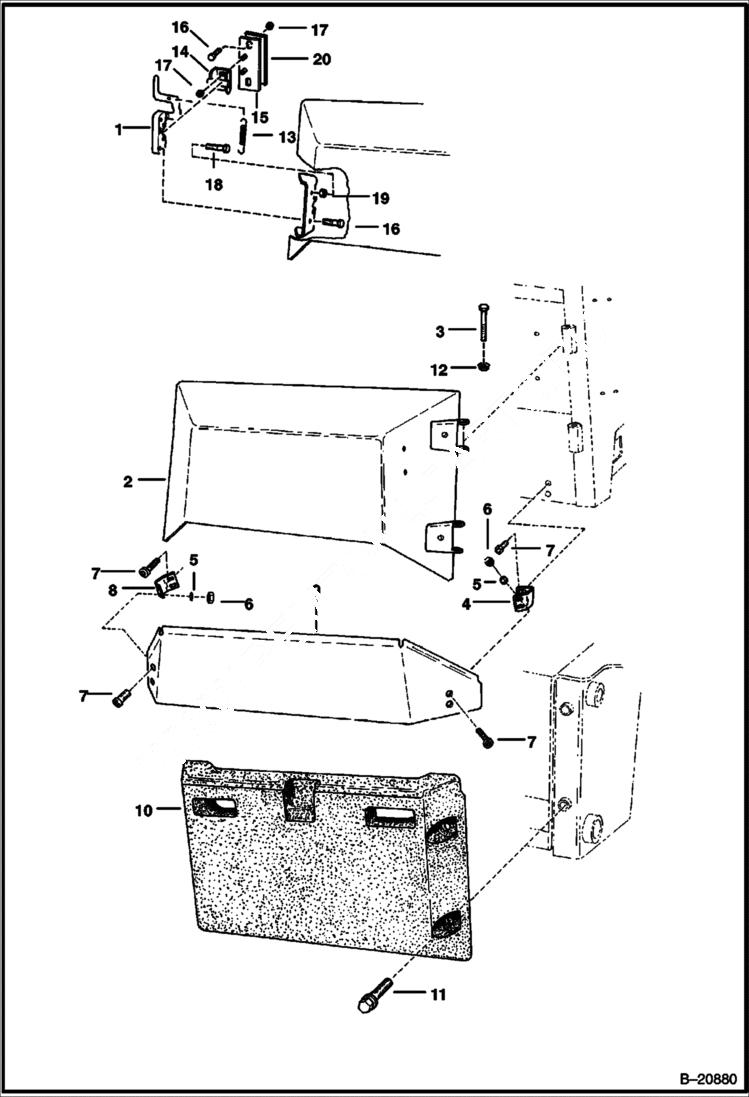

Запчасти Bobcat Articulated Loaders TAILGATE GROUP (S/N 12384 & Below) MAIN FRAME

1

6649420

LATCH, REAR DOOR

2

REAR DOOR NLA - Order Ref. 2, 5, 6, 14, 15, (2) Ref. 17 & Ref. 20-22 on Ill. B20861 - Was 6532166 - A

3

17C864

BOLT

4

6532181

BRACKET R.H.

5

25E17

WASHER 5

6

61D6

NUT 5

7

35C616

BOLT 5

8

6532182

BRACKET L.H.

9

6532180

COVER

10

WEIGHT SALES - counter - Optional

11

35C1240

BOLT

12

83D8

NUT 5

13

6563128

SPRING

14

6579969

STRIKER ASSY. striker - Was 6577397 - A

15

6532132

PLATE

16

17C416

BOLT

17

57D6

NUT 5

18

17C424

BOLT

19

61D4

NUT 5

20

6539820

SPACER
