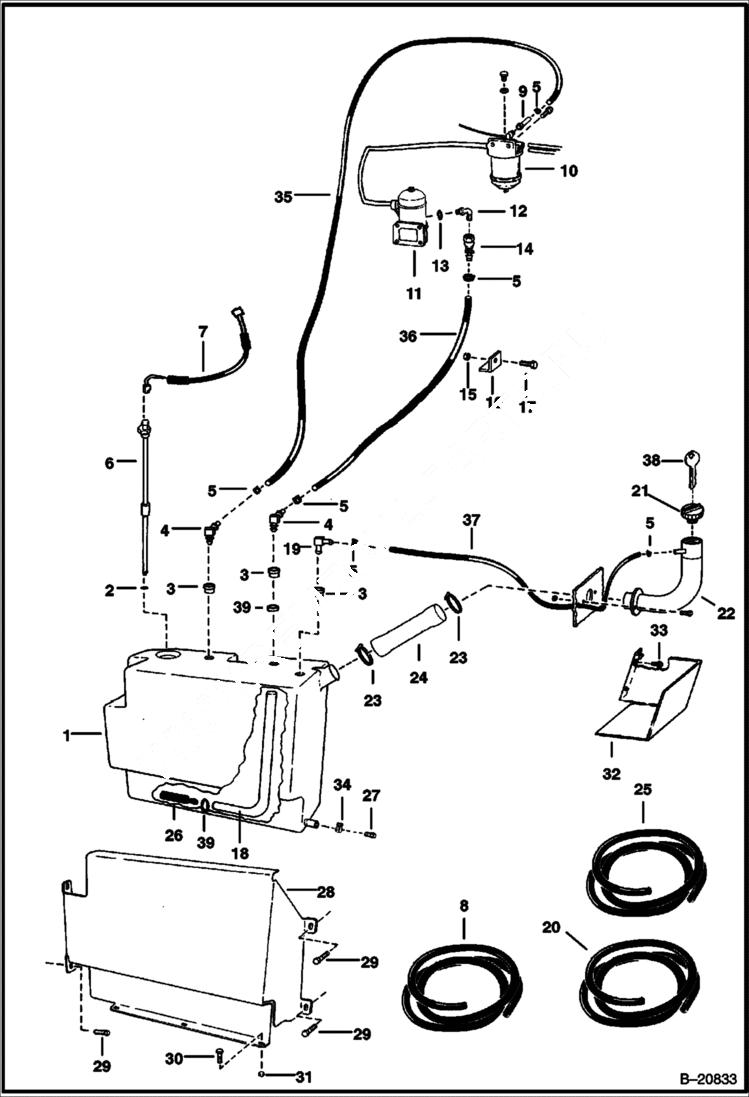

Запчасти Bobcat Articulated Loaders FUEL SYSTEM MAIN FRAME

1

6583743

TANK

2

79K14

O RING 10

2

6717579

GASKET

3

6553411

BUSHING 0.38'' ID

4

6681462

ELBOW Was 6598908 - A

5

42HS04

CLAMP, HOSE Was 6515575 - A

6

SENSOR NLA - fuel - W/Ref. 2 (79K-14 o-ring) - Order 6680452 sensor - Was 6646803 - A

6

7216518

SENSOR, FUEL fuel - W/Ref. 2 (6717579 gasket) - Was 6680452 - A

7

6585598

HARNESS Was 6585255 - A

8

6577821

HOSE bulk - sold per foot

9

6560160

TUBE

10

FILTER See Illustration FUEL FILTER/ B20876

11

PUMP See Illustration FUEL PUMP/ A1967

12

17K4

FITTING 90 degree - W/Ref. 13 - Use W/engine spec. LD-70196

12

18K4

ELBOW 45 degree - W/Ref. 13 - Use W/engine spec. LD-70270

13

79K5

O RING 10

14

6630794

ADAPTER

15

61D5

NUT

16

31H26

CLIP

17

17C512

BOLT 5

18

HOSE NLA - 20.40'' (518 mm) long - Order Ref. 25

19

6553412

ELBOW

20

6577822

HOSE bulk - sold per foot

21

6661114

CAP. DIESEL Green - Was 6632468 - B

21

CAP NLA - locking - W/Ref. 38 - Code GC020 - Was 6654373 - A

21

6661696

CAP, FUEL LOCKING locking - W/Ref. 38 - Code PK510

22

6644968

SPOUT

23

6513595

CLAMP Was 42H000036B - B

24

6644967

HOSE

25

6569752

HOSE BULK/FT bulk - sold per foot

26

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

27

6512804

PLUG

28

6538338

SHIELD Was 6583744 - A

29

84G3712

BOLT 5

30

17C616

BOLT 5

31

61D6

NUT 5

32

6586119

COVER

33

84G3110

SCREW

34

42H6

HOSECLAM5

35

HOSE NLA - 108'' (2743 mm) long - Order Ref. 8

36

HOSE NLA - 80'' (2032 mm) long - Order Ref. 8

37

HOSE NLA - 19.50'' (495 mm) long - Order Ref. 20

38

6654374

KEY Code GC020

38

6587458

KEY Code PK510

39

6661213

RING, COMPRESSION Compression
