Запчасти Bobcat Articulated Loaders SEAT & PANELS MAIN FRAME

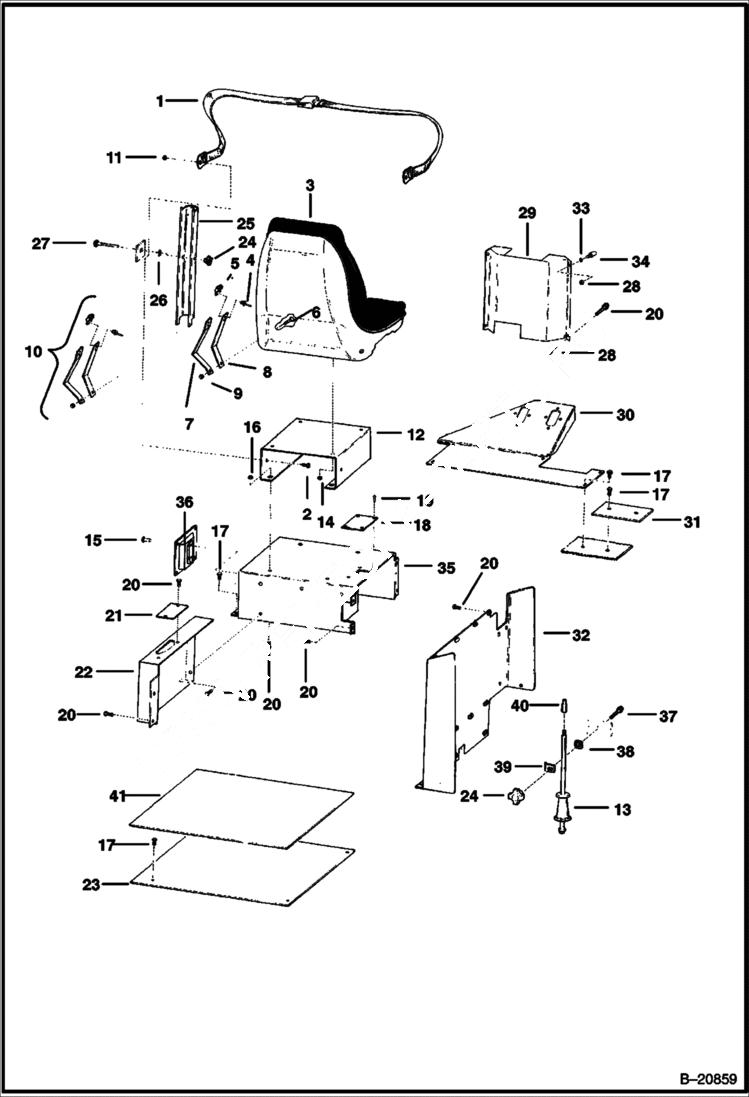

Схема запчастей Bobcat Articulated Loaders - SEAT & PANELS MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

2

17C816

BOLT

3

SEAT See Illustration SEAT/ B7185 See Illustration GRAMMER SEAT/ E1897 See Illustration GRAMMER SEAT/ E1896

4

6630207

RIVET 5 Was 1662965 - A

5

GUIDE NLA - Order 6703703 - Was 6565355

6

17C610

BOLT

7

6585872

BRACE

8

6584585

STRAP

9

57D6

NUT 5

10

6585871

GUIDE ASSY W/Ref. 4, 5, 7 & 8

11

61D8

NUT 5

12

6585887

CHANNEL

13

PULLER NLA - Order OTC 1155 Slide Hammer From OTC Service Tools

14

85D5

NUT 5

15

6598681

RIVET

16

61D6

NUT 5

17

84G3712

BOLT 5

18

6585444

PLATE Was 6585961 - A

19

24G1012

BOLT

20

25G510

BOLT

21

6585899

PLATE

22

6583647

PANEL

23

6585867

PLATE

24

6647668

KNOB

25

6585894

BOOM STOP W/Decal - Was 6531781 - A

25

6534258

DECAL

26

6512909

CLIP

27

7C656

BOLT

28

85D5

NUT 5

29

6585594

PANEL

30

6584687

FLOOR PANEL

31

6583741

PLATE

32

6585864

PANEL

33

6648443

WASHER

34

6733616

BUMPER Was 6649040 - A

35

6531494

SEAT PAN

36

6641356

LATCH

36

6650683

KEY

37

6534499

BOLT

38

6512909

CLIP

39

6562266

CLAMP

40

6531154

ADAPTER

41

6583742

FLOORMAT

Выбрано товаров: 43
