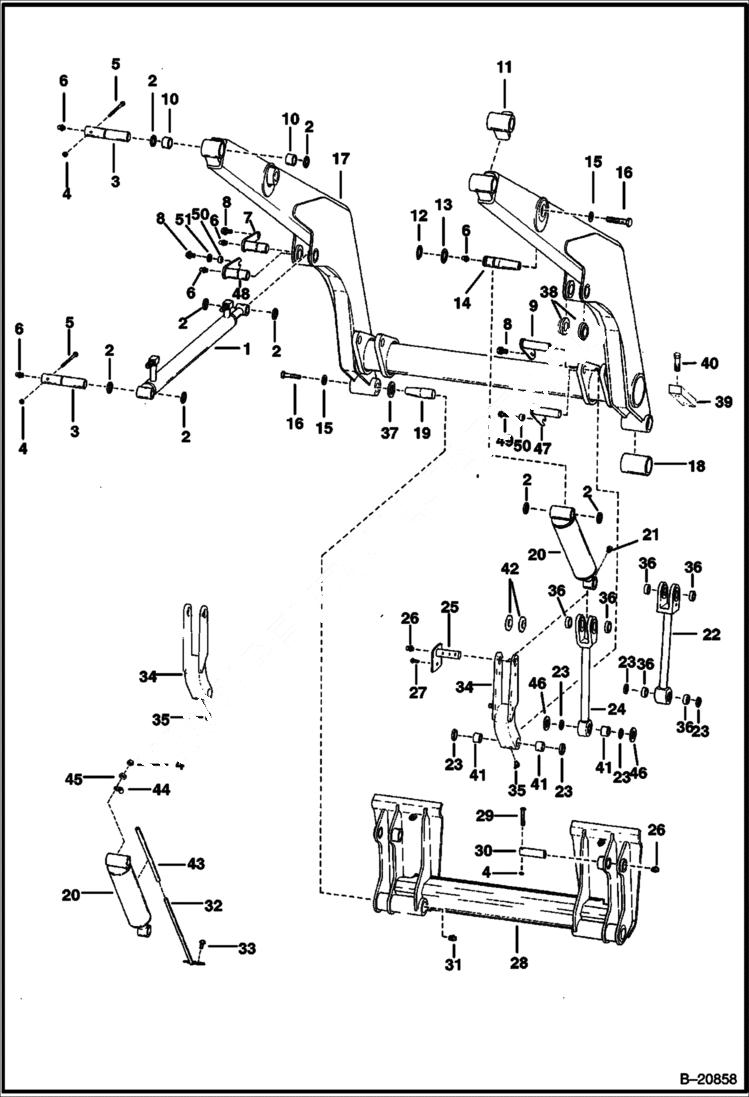

Запчасти Bobcat Articulated Loaders LIFT ARMS & BOB-TACH MAIN FRAME

1

CYLINDER See Illustration LIFT CYLINDER/ B11768 LIFT

2

6631067

SEAL, OIL

3

6585784

PIN

4

85D6

NUT, 5

5

17C648

BOLT 5

6

10H25

FITTING, GREASE 5

7

6585782

PIN W/hole in ear - check style before ordering

8

84G3712

BOLT 5

9

6534937

PIN W/hole in ear - check style before ordering

10

6560334

BUSHING press in

11

6583751

PIVOT weld on - W/Ref. 10

12

6538285

LOCK RING Was 1305943B - A

13

6584872

WASHER

14

6565864

PIN

15

6576033

WASHER Was 6558465 - A

16

17C1228

BOLT

17

LIFT ARMS NLA - Order 6586336, Ref. 47-51 - Was 6534934 - A

17

6586336

LIFT ARMS

18

BUSHING NLA - weld-on - Was 6561423 - A

19

6559018

PIN, PIVOT BOB-TACH

20

CYLINDER See Illustration TILT CYLINDER/ B13490 See Illustration TILT CYLINDER/ B11772 TILT

21

41K2

PLUG

22

LINK NLA - W/Ref. 23 & 36 - Order Ref. 24 & (2) Ref. 46 - Was 6538815 - A

23

6654117

SEAL, OIL 51 mm (2'') OD

23

225855

SEAL, OIL 10 38 mm (1.5'') OD

24

6539922

LINK W/Ref. 23, 36 & 41 - Also Order (2) Ref. 46

25

6585786

PIN

26

10H35

FITTING, GREASE 10

27

25G612

SCREW

28

BOB-TACH See Illustration BOB-TACH/ TS1125 See Illustration BOB-TACH/ D1862

29

17C640

BOLT 5

30

6585785

PIN

31

743332

FITTING, GREASE 5

32

6534666

ROD

33

35C512

BOLT

34

6534581

LINK

35

12H25

FITTING

36

6538814

BUSHING

37

6584873

WASHER

38

6565909

BUSHING Weld On

39

6535703

STOP Lift Arm-Used With 31 x 15.5 and 12 x 16.5 Tires -Was 6583786 - A

40

17C632

BOLT 5 Was 17C000628B - B

41

6534935

BUSHING

42

6534606

SPACERS

43

6534663

TUBE

44

6536952

CLAMP Was 30H000046B - B

45

27E6

WASHER 5

46

6539744

WASHER

47

6586333

PIN W/notch in ear - check style before ordering

48

6586335

PIN W/notch in ear - check style before ordering

49

45C812

BOLT

50

6586326

TUBE

51

6563914

WASHER
