Запчасти Bobcat Articulated Loaders OIL PAN POWER UNIT

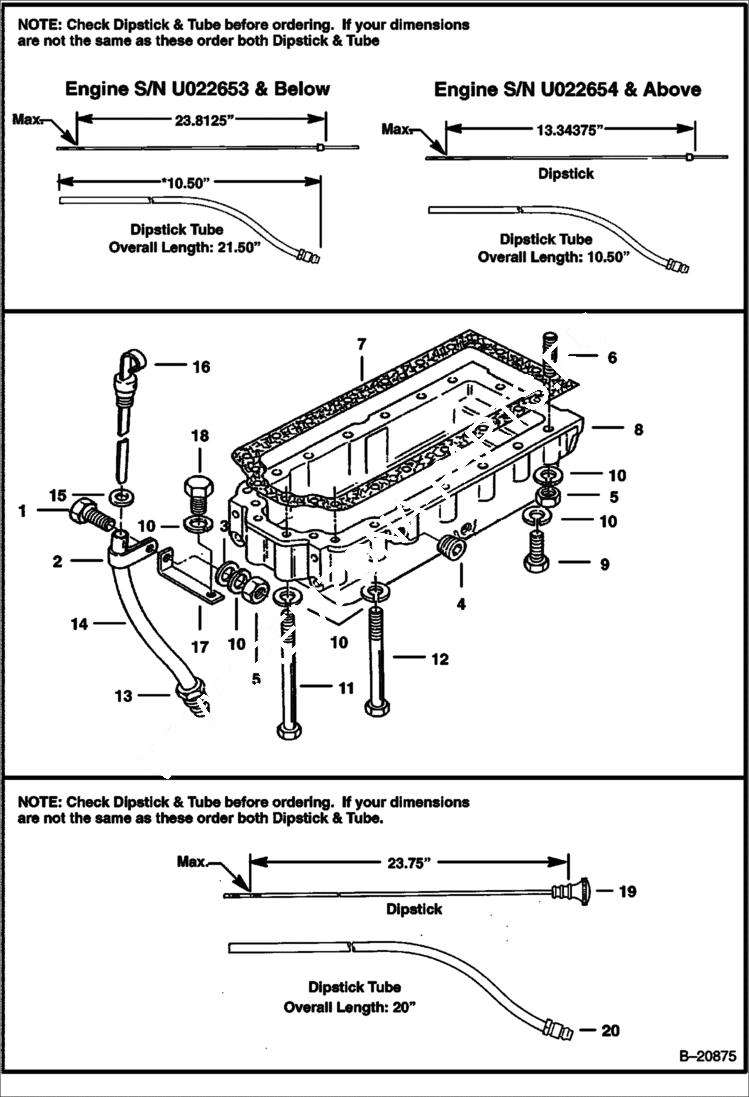

Схема запчастей Bobcat Articulated Loaders - OIL PAN POWER UNIT

Артикул

Название

Примечание

Количество

1

18C512

BOLT

2

6H31

CLIP

3

3725700

WASHER

4

16F8

PLUG

5

10D5

NUT

6

STUD NLA - Was 6634223 - A

7

6662042

GASKET

8

6632538

OIL PAN

9

18C514

BOLT

10

4E5

WASHER

11

6649444

BOLT

12

18C552

BOLT

13

3490066

NUT

14

TUBE NLA - dipstick - 21.50'' - Order Ref. 19 & 20 - Was 6515731 - A

15

3725516

WSHR dipstick seal

16

DIPSTICK NLA - 23.8125'' Ref. 19 & 20 - Was 6632539 - A

17

3737945

BRACKET

18

18C508

BOLT

19

6668829

DIPSTICK 23.75''(603.25mm)

20

6668830

TUBE dipstick - 20.00''(508.0mm)

Выбрано товаров: 20
