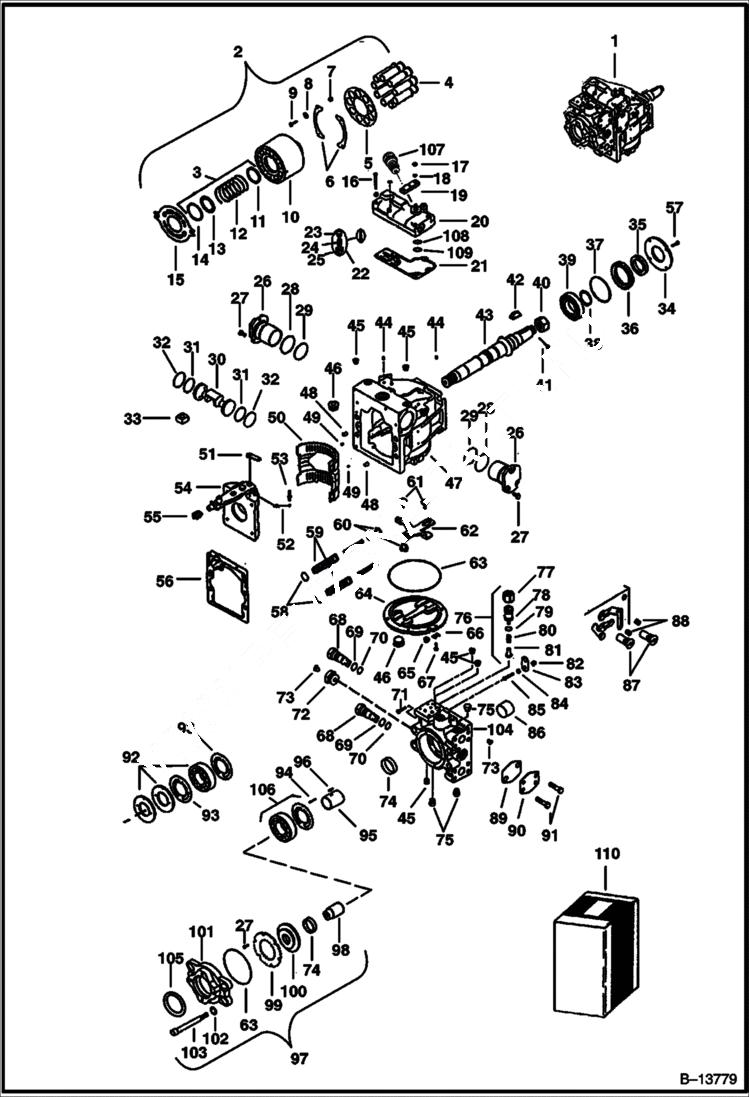

Запчасти Bobcat Articulated Loaders HYDROSTATIC PUMP (Sundstrand) HYDROSTATIC SYSTEM

1

PUMP NLA - Includes 6660796 variable pump and 6660378 gear pump - Order 6671018REM - Was 6660416 - A

1

6671018REM

PUMP, HYD, W/O GEAR PUMP Variable - Without gear pump - Was 6660796 - A

2

6662171

KIT Rotating group - W/Ref. 3 - 15

3

CYLINDER BLOCK W/Ref. 11-14 - Order Ref. 2 - Was 6662172 - A

4

6662177

PISTON SET

5

6662178

GUIDE

6

6662179

BEARING

7

6662180

SPACER

8

6662181

WASHER

9

6662182

SCREW

10

BLOCK NSS

11

6662173

SEAT

12

6662174

SPRING

13

6662175

RETAINER

14

6662176

RING

15

6662183

PLATE

16

6662154

SCREW

17

6662153

NUT

18

6653735

WASHER

19

6518478

HANDLE

20

6662150

CONTROL valve

21

6662151

GASKET

22

6662199

ORIFICE KIT

23

6662200

CHECK VALVE

24

6662201

SPRING

25

6662202

RETAINER

26

6662168

REGULATOR W/Ref. 27-29

27

6662135

SCREW

28

6662169

O-RING

29

6662170

O-RING

30

6662184

PISTON

31

6662185

O-RING

32

6662186

RING

33

6662118

BLOCK

34

6662148

PLATE

35

6662146

SEAL

36

6662145

CARRIER

37

6662147

O-RING

38

658128

RING, SNAP

39

6662144

BEARING

40

6662143

NUT

41

6662141

COTTER PIN

42

6662142

KEY

43

6662140

SHAFT

44

6921564

SCREEN FILTER Was 6648267 - A

45

6662103

PLUG

46

24K9

PLUG

47

6662100

HOUSING

48

6518460

PIN

49

6662101

PIN

50

6662102

BEARING

51

6662152

LINK

52

6662105

LINK

53

6662106

PIN

54

6662104

SWASHPLATE

55

6662107

SPRING

56

6662127

GASKET

57

6662149

SCREW

58

6662111

SHIM

59

6662117

SPRING

60

6662110

SEAT

61

6662112

GUIDE POST

62

6662109

LEVELER

63

6662114

O-RING

64

6662108

COVER

65

6662113

NUT

66

6662116

WASHER

67

6662115

SCREW

68

6662166

VALVE ASSY. W/Ref. 69 & 70

69

25K20100

O RING 10

70

6662167

O-RING

71

6662128

BOLT

72

6662155

REDUCER

73

6640614

PLUG

74

6662121

BUSHING

75

6645086

PLUG

76

6662136

VALVE ASSY. W/Ref. 77-81

77

6661718

NUT Was 6662139 - A

78

6662137

PLUG

79

79K10

O RING 10

80

6662138

SPRING

81

6661717

POPPET

82

6662125

SPACER

83

6662126

BRACKET

84

WASHER NSS - Was 6518414 - A

85

6662129

SCREW

86

6662120

BEARING

87

6662156

CHECK VALVE

88

6662157

PLUG

89

6662122

GASKET

90

6662123

COVER

91

6662124

SCREW

92

6674124

PUMP SET Charge - Was 6662130 - A

93

6662131

PLATE

94

6662132

PIN

95

6662133

SHAFT

95

6664013

SHAFT

96

6648251

KEY

97

6662158

FLANGE ASSY. W/Ref. 63, 74, 98, 100, 101 & 103

98

6662159

CONNECTOR

99

6662134

PLATE

100

6662160

COVER ASSY. W/Ref. 74

100

6664011

COVER ASSY. W/Ref. 74

101

6662161

ADAPTER

102

6662162

WASHER

103

6662163

BOLT

104

6662119

END CAP W/Ref. 74 & 86

105

6660339

GASKET Between gear pump & hyd. pump - Was 6660399 - D

106

6664010

PUMP SET Charge

107

6664480

SWITCH Neutral Start

108

6667683

O-RING

109

6667686

SNAP RING

110

6662187

SEAL KIT W/Ref. 9, 21, 28, 29, 31, 32, 35, 37, 56, 63, 65, 67, 69, 70, & 79
