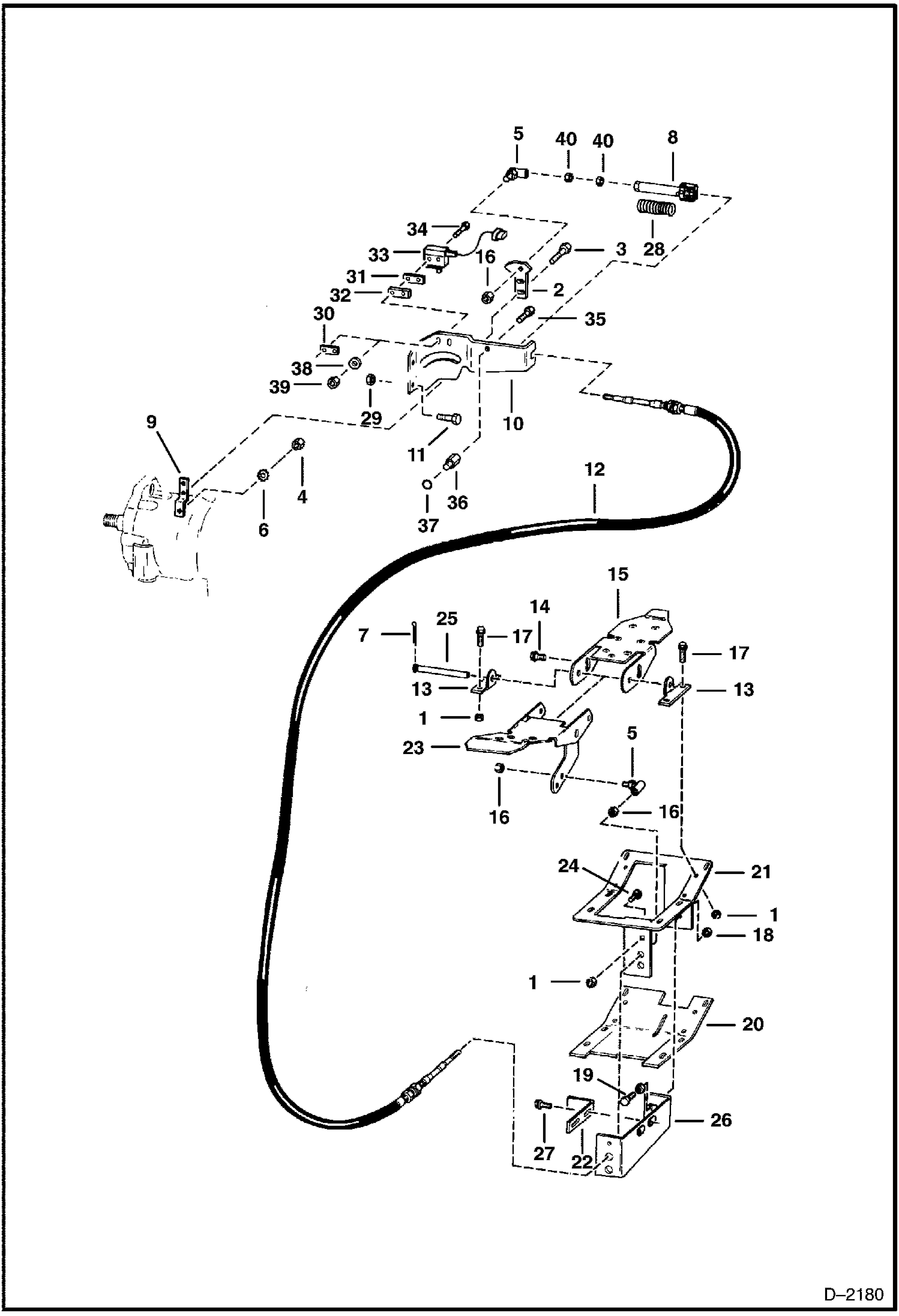

Запчасти Bobcat Articulated Loaders HYDROSTATIC DRIVE CONTROLS HYDROSTATIC SYSTEM

1

83D5

NUT 5

2

6588175

LEVER Was 6539537 - C

3

17C610

BOLT

4

1DM8

NUT

5

6631036

JOINT

6

10EM80

WASHER

7

1F416

PIN Was 1F-412 - D

8

6646566

SPRING centering - Hydroback

9

6586432

LEVER

10

6539539

BRACKET

11

17C620

BOLT

12

6646568

CABLE

13

6535234

MOUNT

14

84G3710

SCREW

15

6535236

PEDAL Front

16

62D4

NUT

17

35C520

BOLT

18

7D6

NUT

19

17C624

BOLT 5

20

6535235

BOOT

21

6535228

FLANGE

22

6535749

STOP

23

6535231

PEDAL Rear

24

7C512

SCREW

25

6585458

PIN Was 6584792 - A

26

6535229

BRACE

27

35C512

BOLT

28

SPRING NLA - Order Ref. 8

29

85D6

NUT, 5 Was 87D000006B - A

30

6702593

SPACER Mounting

31

6587577

SPACER

32

6587415

SPACER

33

6661150

SWITCH, ROLLER MICRO

34

59G616

SCREW 10 Use W/Ref. 30

34

85G620

SCREW Use W/Ref. 38 & 39

35

17C608

BOLT

36

6539644

STUD

37

79K4

O RING 10

38

12E6

WASHER

39

12D6

NUT 10

40

8D4

NUT
