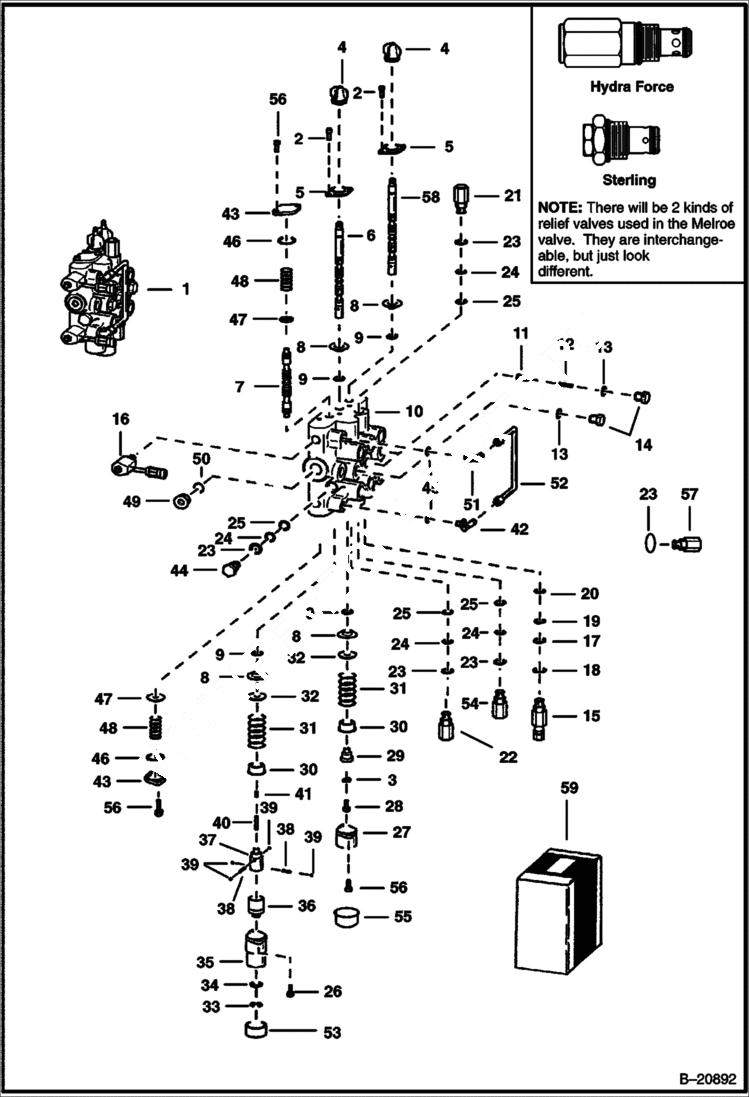

Запчасти Bobcat Articulated Loaders HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE See BTI295 NLA - REF. 2 - 58 - WAS 6586284 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

6587763

BOOT Was 6583727 - A

5

6592123

RETAINER

6

6666579

SPOOL Tilt - #1 or Red

6

6666580

SPOOL Tilt - #2 or Green

6

6666581

SPOOL Tilt - #3 or Black

7

6588074

SPOOL Auxiliary - Was NSS

8

6538466

BUSHING

9

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

9

6646372

SEAL See BTI374 quad ring seal

10

BODY NSS

11

6592115

SEAT

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT lock check

15

RELIEF VALVE NLA - main relief - 2650-2750 PSI - press. preset at factory - Was 6632096 - A

15

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

16

6653395

VALVE, SOLENOID

16

6665758

VALVE

16

6717708

COIL, 14 VOLT 14 volt - Was 6665759 - A

16

6586459

SEAL KIT

17

O-RING NSS

18

WASHER NSS - back-up

19

O-RING NSS

20

WASHER NSS - back-up

21

6599161

RELIEF VALVE port relief - W/Ref. 23-25

22

6666931

RELIEF VALVE Anti-cav. check-Was 6630187 - A

23

79K10

O RING 10

24

80K14

BACK-UP WASHER Was 73K000014B - B

25

58K014

O-RING 10 back-up washer required

25

6677106

O-RING back-up washer NOT required

26

6588163

SCREW 7/8'' - Was 69G000412B - A

26

6588982

SCREW 1''

27

BONNET NLA - W/.25'' flange - order 6587633 , 6662848 & 2 of 69G000414B - Was 6592097 - A

27

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - A

28

6588166

SCREW Was 74G000416B - B

29

6592109

ADAPTER

30

6592100

COLLAR

31

6587580

SPRING

32

7211397

WASHER, SPRING Was 6587523 - A

33

799119

RING

34

6592098

WASHER

35

BONNET NLA - W.25 flange - order 6589226 , 6631704 & 2 of 6588982 - Was 6692094 - A

35

6589226

COVER, END 0.63'' flange

36

6531270

SLEEVE, DETENT lift

37

6587575

ADAPTER

38

6592107

SPRING

39

6592105

BALL

40

6586918

SCREW

41

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B o-ring - Was 6592752 - A

41

6596807

PLUG plastic - 0.46'' long

41

54K20002

O'RING 10

42

19K5

FITTING W/Ref. 45

42

TEE NLA - used with ''C'' series valve - W/O flared end o-ring - Was 6587888 - A

42

6805696

TEE Use with ''C'' series valve - W/flared end o-ring

42

97K6

O RING flared end

43

END CAP NLA - .375'' thick - order 6588981 End Cap & (2) 6588982 Screw - Was 6538574 - A

43

6588981

END CAP .62'' thick

44

6592720

PLUG W/Ref. 23-25

45

79K6

O RING 10

46

58K124

O RING 10

47

6537096

WASHER

48

6530899

SPRING

48

6588197

SPRING Use with ''C'' series valve

49

47K8

PLUG W/Ref. 50

50

79K12

O RING 10

51

17K5

ELBOW W/Ref. 45

51

6558510

ELBOW Use with ''C'' series valve

52

6539830

TUBE

53

6660644

CAP Was 6661704 - A

54

6662221

VALVE Relief

55

6662848

CAP Use with 7101345 Bonnet

56

69G414

BOLT .75 long - Use W/NLA 6588574 end cap - Was 6588164 - A

56

6588982

SCREW 1'' long - Use W/6588981 - end cap

57

6664373

VALVE Optional - port relief - W/Ref. 23 - 2500PSI - anti cav. use in tilt cyl. base end port

57

6673904

SEAL KIT

58

6666576

SPOOL lift - #1 or red - SEE NOTE

58

6666577

SPOOL lift - #2 or green - SEE NOTE

58

6666578

SPOOL lift - (3) black - SEE NOTE

59

6816250

KIT, SEAL Ref. 4, 9 & 26 - For One Spool - Was 6803605 - A

59

6661328

SEAL KIT Ref. 17-20

59

6809425

SEAL KIT Ref. 13 & 23 - 25 - Was 6586461 - A

59

6586459

SEAL KIT For Ref. 16 - Was 6534559 - A
