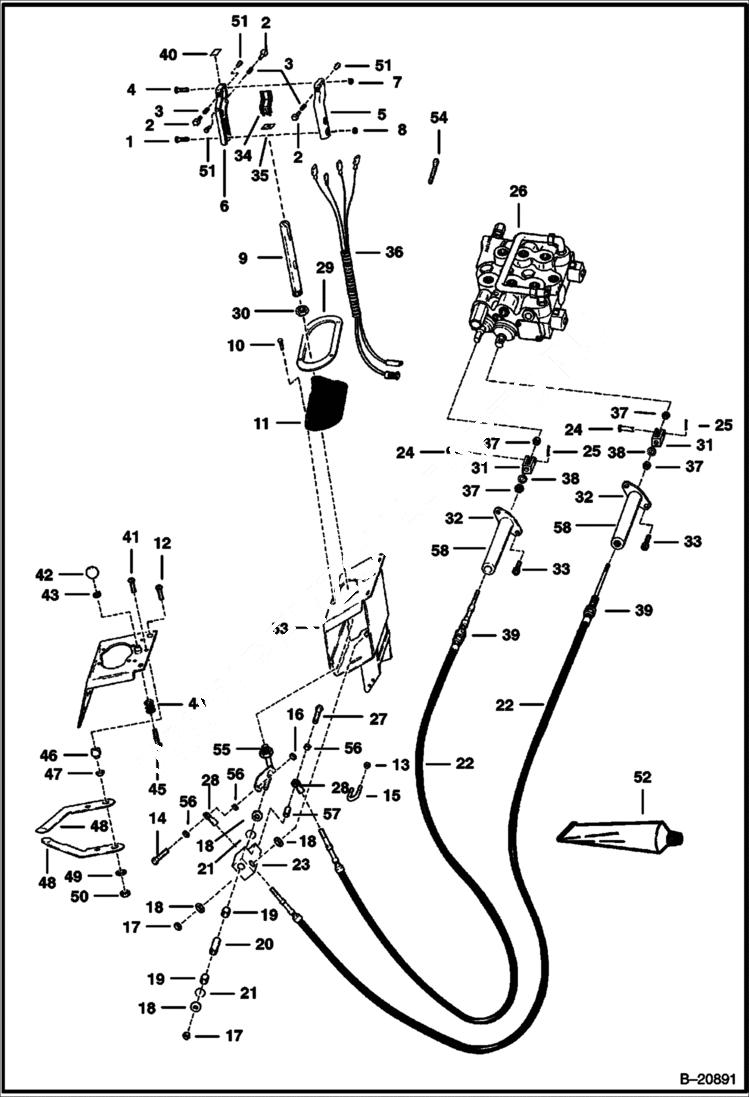

Запчасти Bobcat Articulated Loaders HYDRAULIC LIFT & TILT CONTROL LINKAGE (Joystick Controls) HYDRAULIC SYSTEM

1

85G820

SCREW

2

6700356

SWITCH See BTI248 push

3

6571977

SPRING

4

85G620

SCREW

5

6569445

HANDLE joystick

6

6569444

HANDLE joystick

7

12D6

NUT 10

8

12D8

NUT

9

6537303

TUBE

10

24G1012

BOLT

11

6532127

BOOT W/Ref. 29

12

25G510

BOLT

13

86D5

NUT

14

17C620

BOLT

15

6646895

CLAMP

16

7D6

NUT

17

85D8

NUT, 5

18

27E8

WASHER 10

19

6532896

BUSHING

20

6654214

BUSHING

21

25K20024

O RING 10

22

6654363

CABLE W/Ref. 24, 25, 31, 32 & 39

23

6532997

BLOCK

24

227395

CLEVIS PIN

25

1F208

PIN

26

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20892

27

17C628

BOLT

28

6654213

ROD END

29

RING NSS - Order Ref. 11

30

7D16

NUT

31

6650087

CLEVIS Ref. 22 - 1.00'' long

31

6806967

YOKE 1.48'' long - Use W/short spool valve

32

6650088

SLEEVE Ref. 22

33

6588163

SCREW Was 69G000412B - A

34

SWITCH See BTI324 NLA - Was 6569451 - A

35

6572087

INSULATOR insulator

36

6531873

HARNESS

37

8D5

NUT

38

WASHER NLA - Was 6511638 - A

39

8D12

NUT

40

6577506

PLATE Use W/Front Aux. Hydraulics

41

25G520

SCREW

42

6649680

KNOB

43

710778

SNAP RING

44

6650689

SPRING

45

6531641

LOCK PIN

46

6531633

BUSHING

47

773085

WASHER

48

6534556

LOCK LEVER

49

25E15

WASHER

50

85D5

NUT 5

51

6700354

RETAINER See BTI248 push switch

52

6654216

ADHESIVE See BTI248 3 gr. tube

53

6537354

COVER

54

6624289

STRAP, TIE

55

6537301

ROD

56

6532999

SPACER

57

6532998

BUSHING

58

6661387

TUBE
