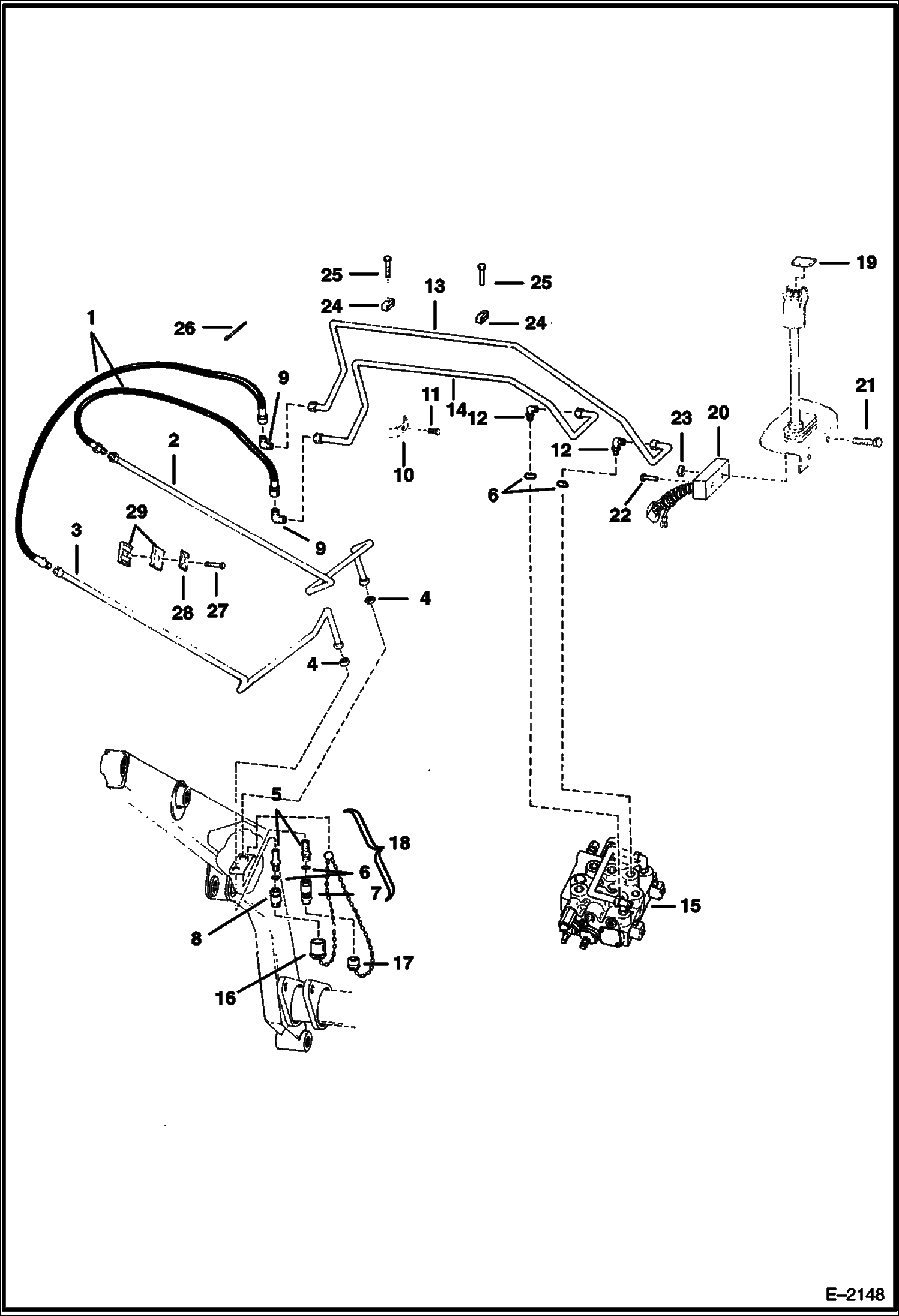

Запчасти Bobcat Articulated Loaders AUXILIARY HYDRAULICS (Front) HYDRAULIC SYSTEM

1

6587779

HOSE Was 6538135 - A

2

6537749

TUBE

3

6537751

TUBE

4

86F7

LOCK NUT

5

45K7

CONNECTR bulkhead

6

79K10

O RING 10

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

8

6598757

COUPLER, POPPET MALE straight

9

77F7

ELBOW

10

6502426

CLAMP

11

84G3724

BOLT

12

17K7

ELBOW

13

6539595

TUBE

14

6539594

TUBE

15

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B20892 CONTROL

16

6515168

CAP

17

6515167

PLUG

18

6513709

CAP PLUG W/Plug Assy. - Rubber

19

6577506

PLATE

20

6531846

RELAY BOX

21

7C528

BOLT

22

84G3124

SCREW self-tapping

23

85D5

NUT 5

24

6701893

CLAMP Was 6651238 - A

25

17C440

BOLT

26

6624289

STRAP, TIE

27

17C520

BOLT 5

28

6652521

PLATE

29

6701893

CLAMP
